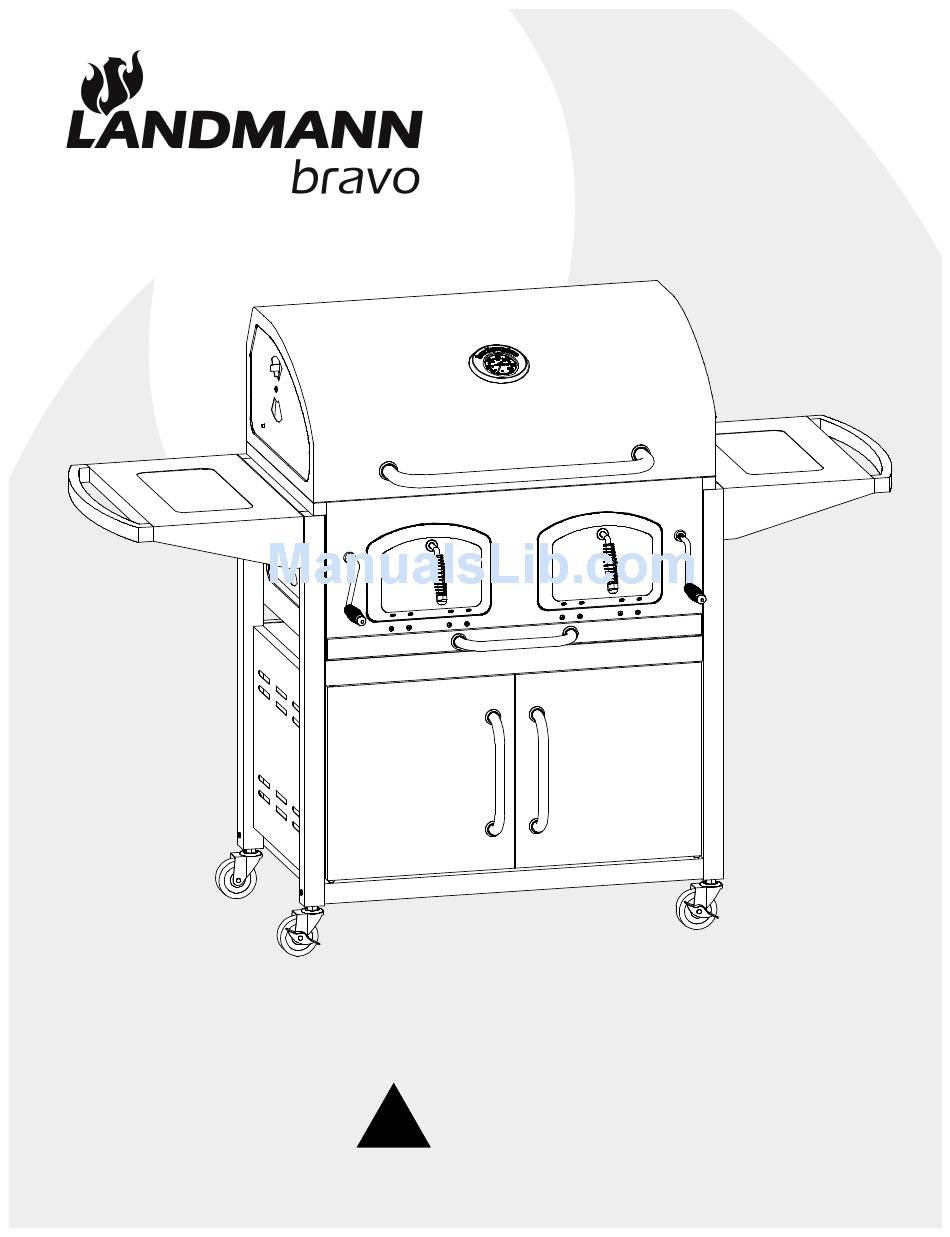

- Page 1 ® Smoky Mountain Series Bravo Premium Charcoal Grill Assembly and Operating Instructions for Model: 591300 VER. 3, 4/6/2011 PLEASE READ ALL RULES FOR SAFE OPERATION AND FOOD SAFETY BEFORE USING.
-
Page 2: Food Safety
PAGE 2 READ FIRST! RULES FOR BRAVO PREMIUM CHARCOAL GRILL SAFE OPERATION. • THE GRILL IS FOR OUTDOOR USE ONLY! • KEEP THE GRILL A MINIMUM OF 10 FT. AWAY FROM BUILDINGS, STRUCTURES, ANY FLAMMABLE ITEMS AND VEHICLES. • NEVER USE THE GRILL UNDER COVERED PORCHES, AWNINGS, LOW HANGING TREE BRANCHES, TRELLIS, OR OVERHANGS OF ANY KIND. - Page 3 PAGE 3 HARDWARE AND SMALL PART LISTING (4) M5 x 15MM (40) M6 x 10MM (4) M6 x 50MM (2) M4 x 10MM (4) M6 x 15MM (8) M6 x 10MM BOLT BOLT BOLT BOLT BOLT ROUND HEAD BOLT (8) M6 KEP (4) M6 LOCKING HEXNUT HEXNUT...
-
Page 4: Part Listing
PAGE 4 PART LISTING (1) LEG, (1) LEG, BACK LEFT BACK RIGHT (1) LID AND COOKING CHAMBER ASSEMBLY (1) LEG, (1) LEG, FRONT LEFT FRONT RIGHT (1) CABINET (2) CABINET PANEL, BACK PANEL, SIDE (1) CABINET DOOR WITH (1) CABINET DOOR WITH (1) BOTTOM SHELF HANDLE, LEFT HANDLE, RIGHT... - Page 5 PAGE 5 PART LISTING (1) ASH TRAY (1) CHARCOAL PAN ASSEMBLY, LEFT (2) SIDE SHELF WITH HANDLE (1) CHARCOAL PAN ASSEMBLY, RIGHT (1) BLOCKING PLATE (2) CAST IRON COOKING GRATE (1) FRONT CONNECTOR WITH DOOR STOP (1) WARMING GRATE (2) LEG CONNECTOR...
- Page 6 PAGE 6 PART LISTING (1) LID HANDLE (4) VENT (1) SMALL HANDLE (2) ACCESS DOOR HANDLE ASSEMBLY (2) CHARCOAL PAN ADJUSTMENT CRANK HANDLE ASSEMBLY (2) CASTER (1) TEMPERATURE GAUGE (2) LOCKING WITH BRASS HEXNUT (1) LOGO PLATE CASTER...
- Page 7 PAGE 7 BRAVO CHARCOAL GRILL ASSEMBLY INSTRUCTIONS A Phillips or plain screwdriver, adjustable wrench and needle nose pliers are needed for assembly. Assembly time: 75 minutes For easier reading and visual reference, part letters are described in either black or gray circles in each step.
- Page 8 PAGE 8 BRAVO CHARCOAL GRILL ASSEMBLY INSTRUCTIONS STEP 4: ASSEMBLE THE FRONT AND LEG CONNECTORS First, assemble the front connector plate [ Q ] as shown to the legs using (4) 10MM bolts [ AQ ]. Tighten the bolts securely. Next, assemble the (2) leg connectors [ R ] to the legs as shown using (4) 10MM bolts [ AQ ].
- Page 9 PAGE 9 BRAVO CHARCOAL GRILL ASSEMBLY INSTRUCTIONS STEP 6: ASSEMBLE THE CABINET DOORS Carefully turn the leg and cabinet STEP assembly back over onto the casters. Assemble the cabinet doors [ J,K ] to the bottom shelf. First identify the left and right doors.
- Page 10 PAGE 10 BRAVO CHARCOAL GRILL ASSEMBLY INSTRUCTIONS BRASS HEXNUT STEP 8: ASSEMBLE LID HANDLE AND TEMPERATURE GAUGE Assemble the lid handle [ X ] to the lid using (2) 15MM bolts [ AZ ] and (2) large finishing washers [ AJ ]. Assemble as shown.
- Page 11 PAGE 11 BRAVO CHARCOAL GRILL ASSEMBLY INSTRUCTIONS LOCKING PIN STEP 10: ASSEMBLE THE CHARCOAL SUPPORT BAR PAN ASSEMBLIES PUSH PLATE ROD Assemble one assembly at a time to SUPPORT BAR avoid mixing up parts. Identify the right charcoal pan assembly [ T ].
- Page 12 PAGE 12 BRAVO CHARCOAL GRILL ASSEMBLY INSTRUCTIONS STEP STEP 11: ASSEMBLE THE CHARCOAL PAN CRANK ADJUSTMENT HANDLES Thread the charcoal pan crank adjustment handles [ AD ] into the threaded sleeve brackets [ AF ]. Crank the pans up and down a few times to make sure they work properly.
- Page 13 PAGE 13 BRAVO CHARCOAL GRILL ASSEMBLY INSTRUCTIONS STEP 13: ASSEMBLE THE SIDE SHELVES Assemble the (2) side shelves [ N ] to the legs using (4) M6 x 10MM bolts [ AQ ] on each side. Tighten bolts securely. STEP Note the weight limit on the side shelves is 15 lbs.
- Page 14 PAGE 14 BRAVO CHARCOAL GRILL ASSEMBLY INSTRUCTIONS STEP 15: INSERT THE COOKING GRATES Place the (2) cast iron cooking grates [ V ] on the grill as shown. STEP Handle the cooking grates with care as the cast iron grates can chip, crack or break if hit or struck with a sharp object.
- Page 15 PAGE 15 ADD 3-6 LBS. OF CHARCOAL ADD 3-6 LBS. OF CHARCOAL BRAVO CHARCOAL GRILL OPERATING INSTRUCTIONS This grill becomes very hot and possibly the handles. Use caution working WARNING ! around the grill. Use mittens or oven gloves when opening the lid, access doors, ash tray or adjusting the vents during use.
-
Page 16: Food Temperatures
PAGE 16 FOOD TEMPERATURES If you are unsure about when food is done, use this chart as a guide for measuring properly cooked meat temperatures. Use a high quality meat thermometer with probe to measure the meat temperature. Push probe into the thickest part of the meat to get an accurate measurement. - Page 17 USE! USE MITTENS OR GLOVES ON THESE PARTS. Congratulations on your purchase of the Bravo Premium Charcoal Grill! At Landmann USA, we strive to provide you with an easy HOT SURFACES to use, easy to assemble DURING USE! product. However, in the...
-
Page 18: Limited Warranty
These warranties are limited to non-commercial residential use only. Product repair or replacement as provided under this warranty is your exclusive remedy. Landmann shall not be liable for any incidental or consequential damages or breach of any express or implied warranty on this product or any part thereof, except to the extent prohibited by applicable law.
