Assembly and operating instructions
Failure to observe these instructions can affect or damage the device and other objects and lead to personal injury.
Please read the relevant chapters of this instruction manual prior to assembly and before every start-
up operation. Follow the steps in the indicated order and observe the safety warnings.
These instructions form part of the product. They should therefore always be sto-
Gas barbecue
Please read these before every use.
red with the product and passed on to every subsequent user.
The barbecue is for open-air use only!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Avalon 4.1 12792 and is the answer not in the manual?

Questions and answers

Summary of Contents for Landmann Avalon 4.1 12792

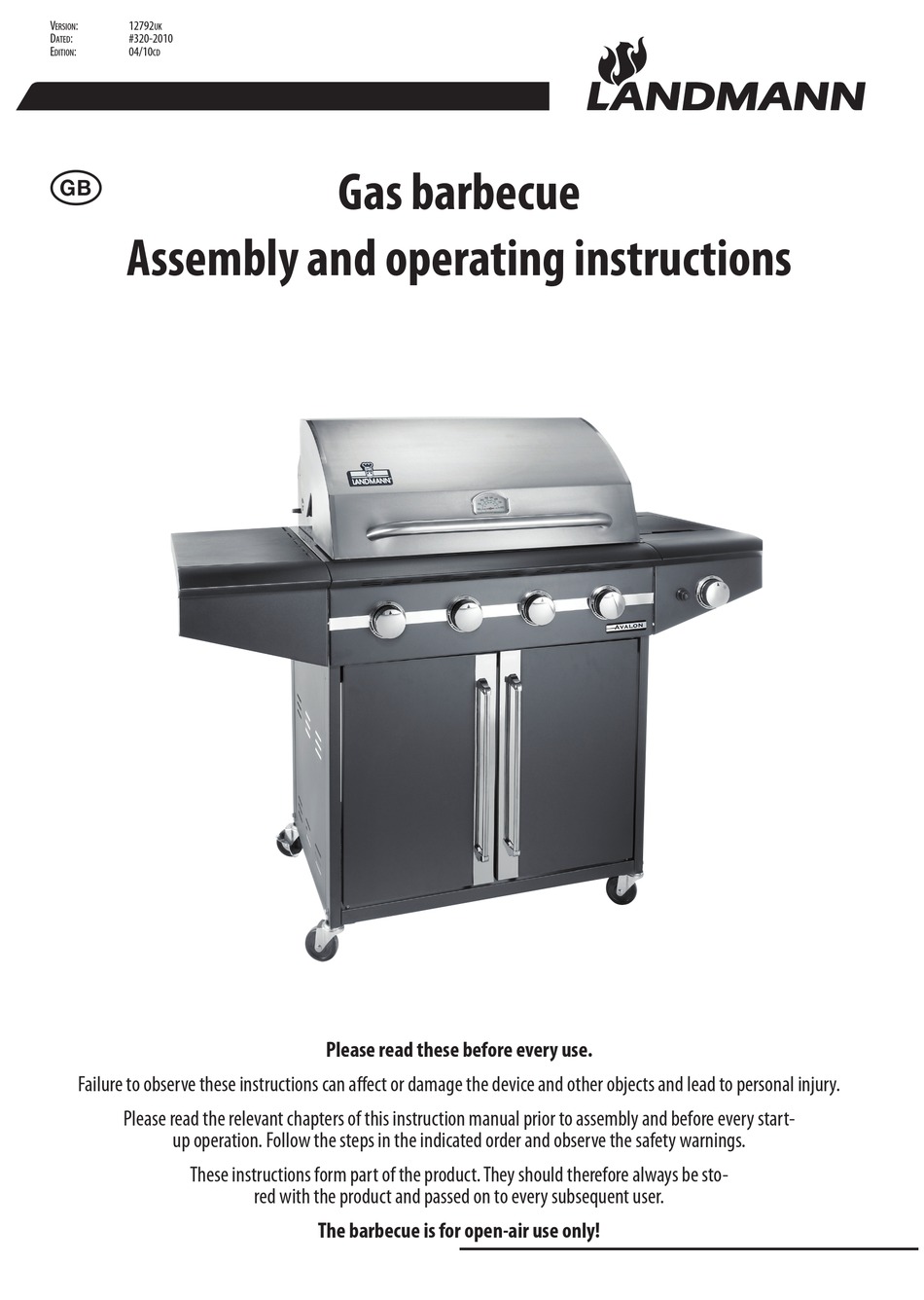

  • Page 1 12792 ersion #320-2010 ateD 04/10 Dition Gas barbecue Assembly and operating instructions Please read these before every use. Failure to observe these instructions can affect or damage the device and other objects and lead to personal injury. Please read the relevant chapters of this instruction manual prior to assembly and before every start- up operation.
  • Page 2: Table Of Contents

    Light the side burner..........................24 Switching off barbecue ........................25 Cleaning ..............................26 Barbecue ............................26 Gas system ............................26 Maintenance .............................27 Barbecue ............................27 Gas system ............................27 Environmental information and disposal measures ..................27 Trouble shooting ............................28 List of spare parts ............................29 Declaration of Conformity .........................31 2 LANDMANN...
  • Page 3: Technical Data

    Pressure reducer Model Preset and -approved pressure reducer Flow rate max. 1.5 kg/h Operating pressure 28-30 mbar (butane) / 37 mbar (propane) Gas hose -approved hose (max 1.5 m) Ignition Electronic ignition Flame regulator infinitely adjustable 0 - max. LANDMANN...
  • Page 4: Delivey Contents

    Crosshead screw M6 x 10 mm * Position numbers on the following pages Overview 1. Grill cover, swivel mounted 2. Side burner 3. Cart 4. Front bar with controls (see page 5) 5. Side rack 6. Grill 7. Warming rack 8. Cooking plate 4 LANDMANN...
  • Page 5: Controls

    (G5) and the adjusting element into the burner. A battery operated ignition generates a spark at the burner that in turn lights the gas. The flame controller (A) allows the heat output to then be regulated. If the gas supply is stopped by the flame regulator (A), the gas flame goes out. LANDMANN...
  • Page 6: Utilisation

    (if in doubt please ask our customer service department). • if LANDMANN GmbH & Co. Handels-KG original spare parts are not used. Any adjustment made to the barbecue can be dangerous! Do not therefore repair the barbecue yourself, unless the steps to do so are set out in these instructions.
  • Page 7: Safety Instructions

    ... a possible danger that can result in damage to property if the specified CAUTION measures are not observed. Notes on use Pictogram Note on ..a useful function or tip. LANDMANN...
  • Page 8: Residual Risks

    Pull the holding brake on the right castor during operation. Safety measures during barbecuing: • Wear protective barbecue gloves. • Never leave the hot barbecue unattended. Keep children, mentally or physically handicapped persons, and pets at a safe distance. 8 LANDMANN...
  • Page 9: Danger "Gas Is Highly Flammable

    The barbecue must not be used if the connections for the gas supply are porous or faulty. This also applies, for example, to hoses or fittings blocked by insects, as this can lead to a dangerous flashback. • Do not store spare gas bottles near the barbecue. LANDMANN...
  • Page 10: Danger "Gas Displaces Oxygen

    – Fit the gas cylinder valve with a cap nut and safety cap. – Do not store the gas cylinder in areas below ground level, in or near stairways, hall- ways or passages and throughfare between buildings. – Always store gas cylinders upright, even if they are empty! 10 LANDMANN...
  • Page 11: Assembly

    Read the text for each assembly step before carrying it out, as useful information is sometimes provided at the very end of the section. Even if you are not experienced at DIY, assembly does not generally take more than one hour. LANDMANN...
  • Page 12: Assembly Procedure

    (S) and then tighten the bolts again. 17. Screw in a metal sheet screw (S1) into the long hole at the bottom on the front of the table to secure the side support table. 12 LANDMANN...
  • Page 13 22. Pass the gas hose with the side burner adjustment unit (17) through the opening (X) on the side wall of the cart. 23. Remove the flame regulator cover (16) from the side burner table (15) by unscrewing the two crosshead screws (S). LANDMANN...
  • Page 14 Position the three longer legs into the drill holes in the side burner table. 33. Place the drip tray (23) into the hole in the heat plate (8). Place its handle onto the groove in the rear cross bar (7). 14 LANDMANN...
  • Page 15 35. Place the grill (25) and the cooking plate (28) on top. 36. Insert the warming rack (26) into the guides on the cover. This step completes assembly. The barbecue should now look as it does on the title page of the document. LANDMANN...
  • Page 16: Connecting Gas Cylinder And Shutting Off

    Please follow the operating instructions of the leak detection agent. The following parts are included in the delivery contents. They correspond to the standards applicable in the country to which they have been supplied by LANDMANN. • Pressure reducer Fixed and -approved pressure reducer, max.
  • Page 17: Connecting The Gas Cylinder

    Repeat the leak test. 8. If you do not wish to use the barbecue immediately, close the bottle valve (turn operating lever (G2) to a 3 o'clock position). LANDMANN...
  • Page 18: Shut Off Gas Cylinder

    – Fit the gas cylinder valve with a cap nut and safety cap. – Do not store the gas cylinder in rooms below ground level, or in or near stairways, hallways or passages and tho- roughfares between buildings. – Always store gas cylinders upright, even if they are empty! 18 LANDMANN...
  • Page 19: Operation

    2. Turn the operating lever (G2) to the 6 o'clock position. 3. Check to make sure that the gas system is leak-proof. Otherwise, close the cylinder valve immediately (turn operating lever (G2) to a 3 o'clock position). LANDMANN...
  • Page 20: Light One Of The Main Burners

    To turn off the burner |(i.e. switch off the flame), turn and push the flame regulator (A) clockwise to „OFF“. The gas supply is not broken until all flame regulators are set to „OFF“. 20 LANDMANN...
  • Page 21: Light The Side Burner

    Only use crockery suitable for gas (pot or pan) on the side burner. Any other equipment may be damaged. The size of the pot or the pan should match the size of the side burner. It should be able to stand securely on the side burner. LANDMANN...
  • Page 22: Switching Off Barbecue

    3. Wait until all of the parts have cooled down and then clean any soiled components. 4. Close the covers 5. If the heater is not going to be used for a prolonged period: – Disconnect the gas cylinder (see chapter "Disconnecting the gas cylinder"). – Store the barbecue in a dry place. 22 LANDMANN...
  • Page 23: Cleaning

    (e.g., dry, loose, and clean sand). Never use flammable materials such as saw dust, cat litter or similar. Gas system Any parts through which gas is passed may only be cleaned by a gas specialist. Never dismantle the setting device! LANDMANN...
  • Page 24: Maintenance

    Observe the local regulations. Barbecue Pay attention to cleanliness when handling the barbecue. To dispose of the barbecue properly, disassemble it into its individual parts. Recycle the metal and plastic components. Observe the local regulations. 24 LANDMANN...
  • Page 25: Trouble Shooting

    Arrange for a gas specialist to clean the gas system Temperature on grill too low Pre-heating time is too short Close the lid and set the flame regulator to Max Gas outlets on the burner are blo- Remove blockage from burner cked LANDMANN...
  • Page 26: List Of Spare Parts

    Side burner setting device (1 x) Grill cover handle (1 x) Side burner ignition |(1 x) Thermometer (1 x) Side support table (1 x) Heating plate (1 x) Cart door left (1 x) Grill (1 x) Cart door right (1 x) 26 LANDMANN...
  • Page 27 Side burner (1 x) Fat drip tray (1 x) Side burner brass insert (1 x) Gleitroller links (2 x) Side burner support (1 x) Right castor (2 x, with fixing brake) Side burner table (1 x) Cooking plate (1x) LANDMANN...
  • Page 28: Declaration Of Conformity

    Declaration of Conformity DIN EN 498 (Oktober 2009) 18.10.2010 28 LANDMANN...
  • Page 29 LANDMANN® Ltd. Unit 6 Blackstone Road, Stukeley Meadows Industrial Estate, Huntingdon, Cambs,PE29 6EF, United Kingdom Hotline Monday to Thursday 9am to 5pm, Friday, 9am to 4pm. +44 0871-231-1990 LANDMANN...
