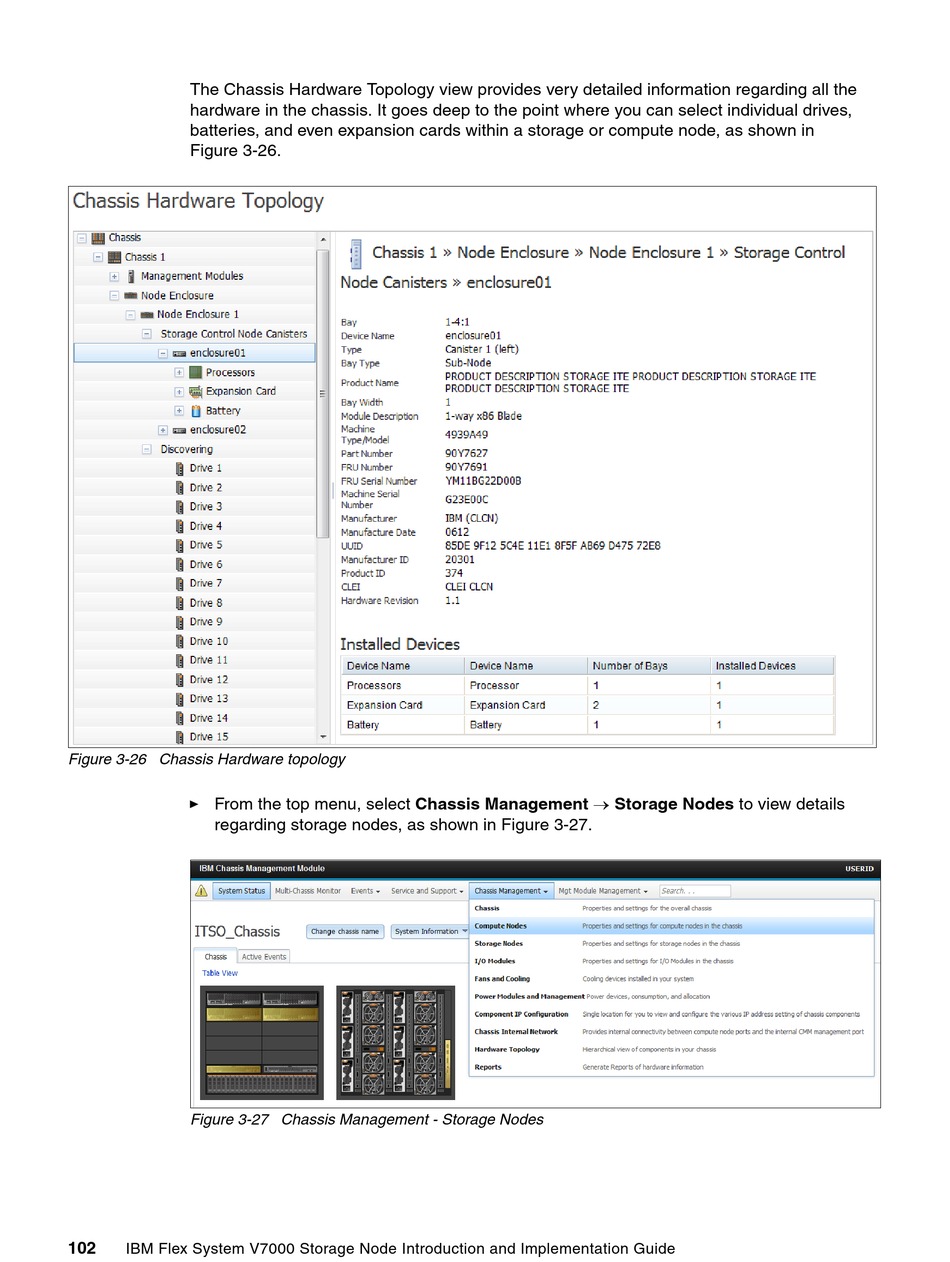

The Chassis Hardware Topology view provides very detailed information regarding all the
hardware in the chassis. It goes deep to the point where you can select individual drives,
batteries, and even expansion cards within a storage or compute node, as shown in
Figure 3-26.
Figure 3-26 Chassis Hardware topology
From the top menu, select Chassis Management  Storage Nodes to view details
regarding storage nodes, as shown in Figure 3-27.
Figure 3-27 Chassis Management - Storage Nodes
