The quick view includes part information, serial number, health and temperature, and unique
identity (depending on the component), as shown in Figure 3-18.

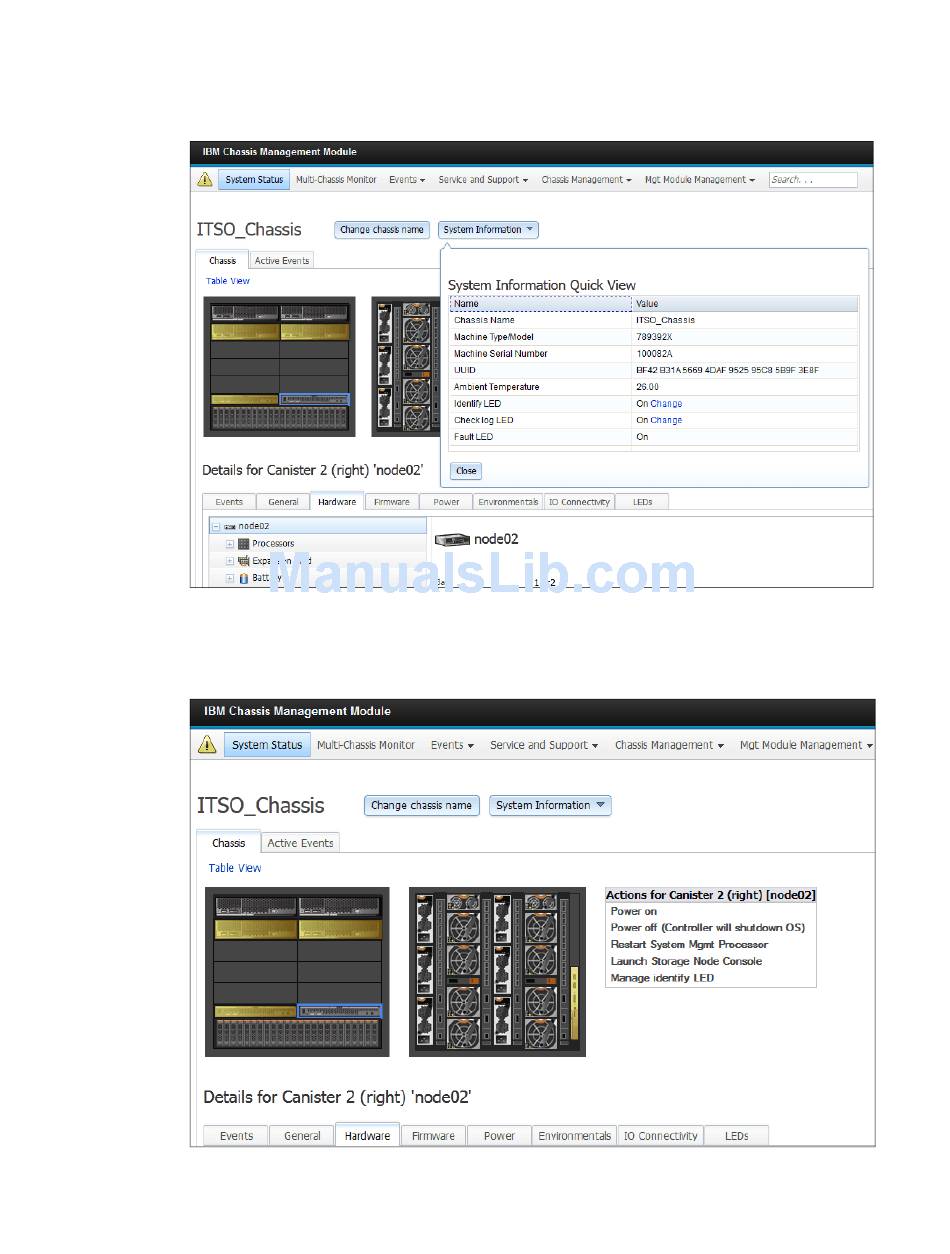

Figure 3-18 CMM - System Information Quick View
Selecting a component also opens up an Actions frame, which lists the actions that can be
performed on that particular IBM Flex component, as shown in Figure 3-19.
Figure 3-19 CMM - Actions for Chassis Component
