Changing the Service IP address by management GUI
Use the control enclosure management GUI when the system is operating and the system is
able to connect to the node canister with the Service IP address that you want to change, as
shown in Figure 4-28.
1. Select Settings  Network from the navigation.
2. Be sure to select the correct node to configure.
3. Select Specify IP address and change it to the new IP.
4. Click Save to complete the panel.

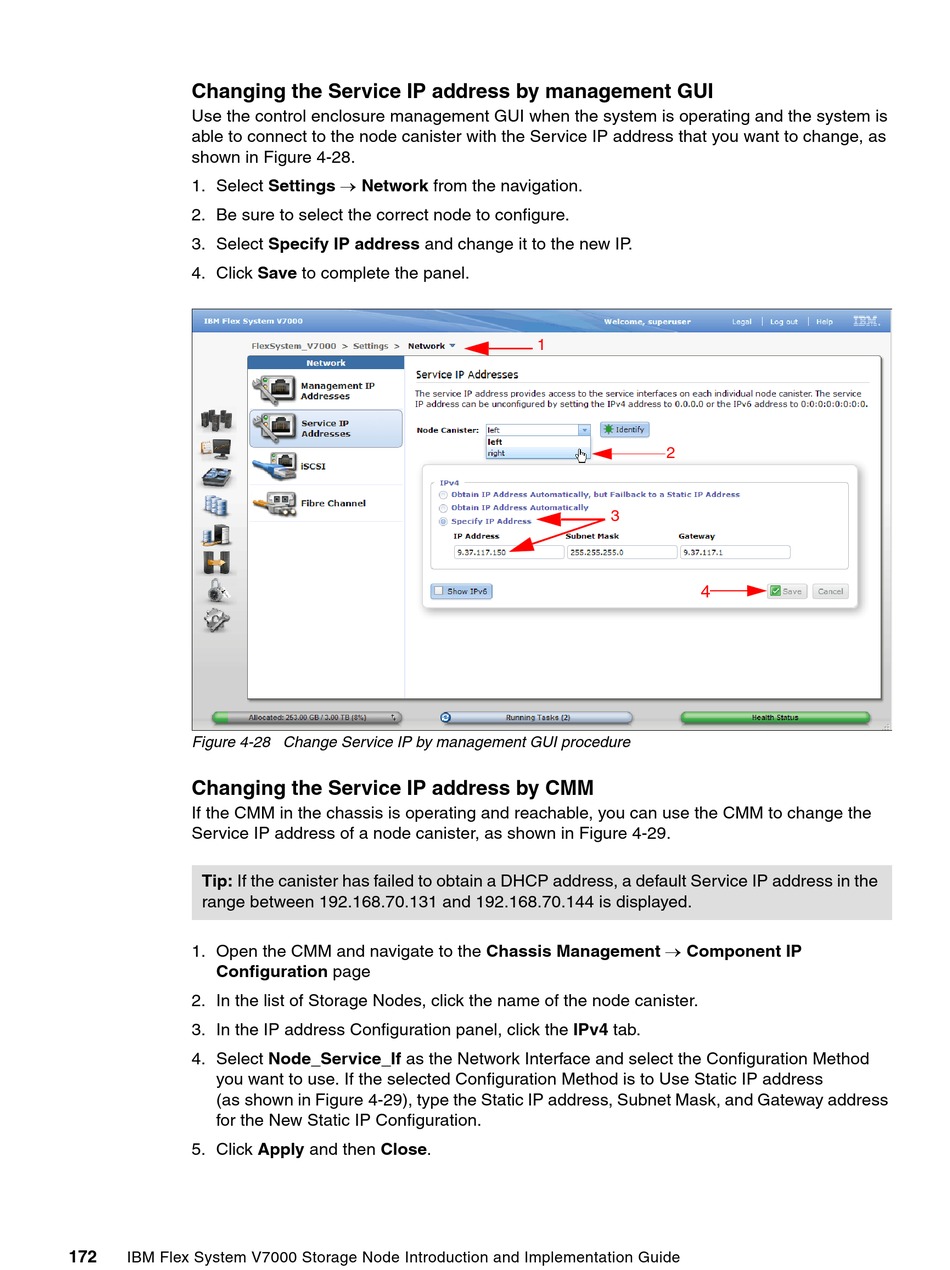

Figure 4-28 Change Service IP by management GUI procedure
Changing the Service IP address by CMM
If the CMM in the chassis is operating and reachable, you can use the CMM to change the
Service IP address of a node canister, as shown in Figure 4-29.
Tip: If the canister has failed to obtain a DHCP address, a default Service IP address in the
range between 192.168.70.131 and 192.168.70.144 is displayed.
1. Open the CMM and navigate to the Chassis Management  Component IP
Configuration page
2. In the list of Storage Nodes, click the name of the node canister.
3. In the IP address Configuration panel, click the IPv4 tab.
4. Select Node_Service_If as the Network Interface and select the Configuration Method
you want to use. If the selected Configuration Method is to Use Static IP address
(as shown in Figure 4-29), type the Static IP address, Subnet Mask, and Gateway address
for the New Static IP Configuration.
5. Click Apply and then Close.
