To open the Module-specific Management interface, click the I/O Module wanted, then the
Actions drop-down button, as shown in Figure 3-14.

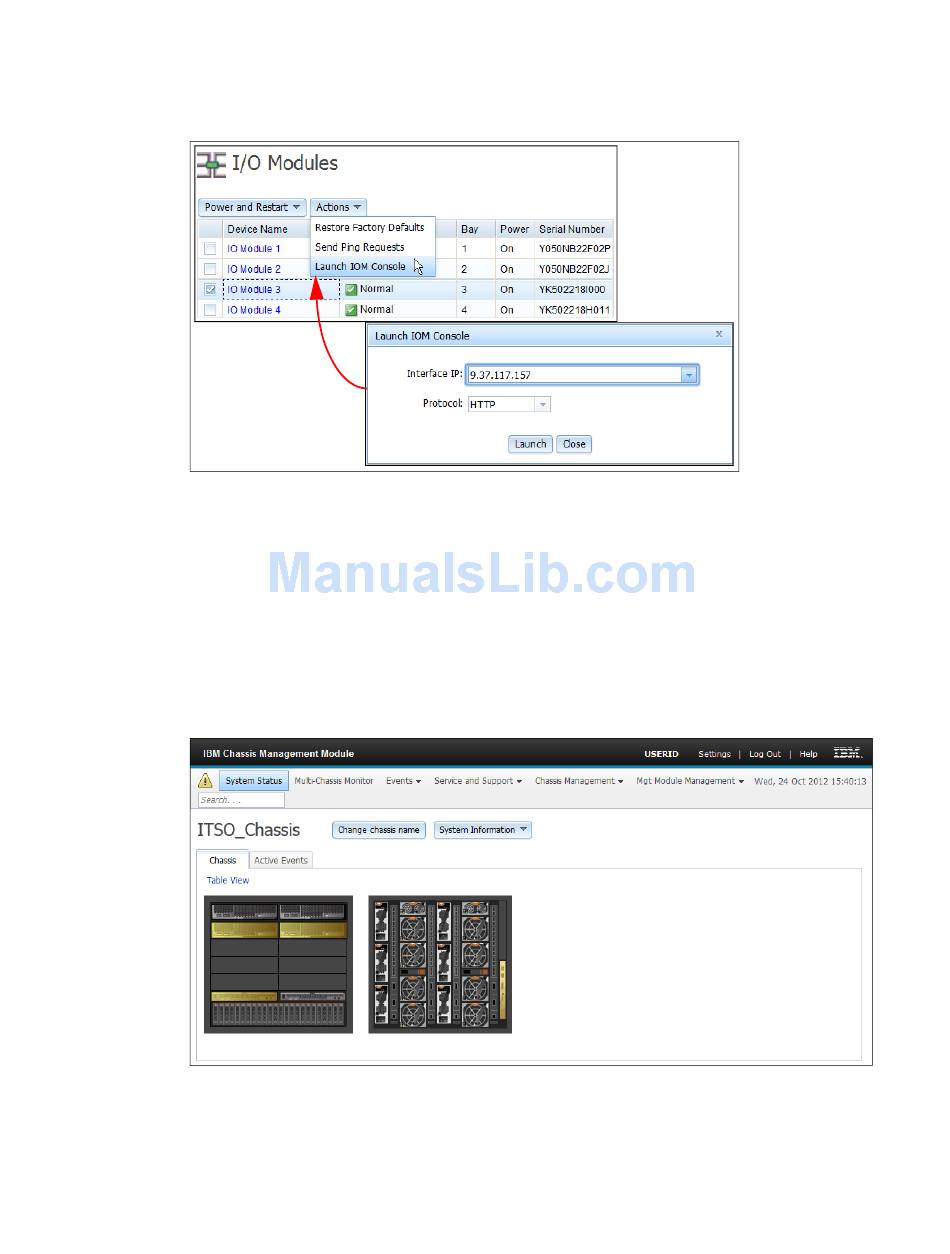

Figure 3-14 Launching IOM Console by CMM
The drop-down menu gives the option to select HTTP or HTTPS protocol. In case of most I/O
Modules, HTTPS might need to be selected. It will result in execution of the Switch Modules
platform-level management interface.

3.2.5 Managing storage using IBM Flex System Chassis Management Module

After completing initial setup, a subsequent login into CMM opens the
The top of the page identifies the current user and contains a
option, as shown in Figure 3-15.
Figure 3-15 IBM Chassis Management Module Chassis Map
96
IBM Flex System V7000 Storage Node Introduction and Implementation Guide
System Status
page.
Settings Log Out
menu and
