3.1.3 Storage management interfaces

The IBM Flex System storage infrastructure contains a variety of management interfaces that
can be classified into four distinct levels based on their level of depth and detail in
management capabilities:
Starting Level: IBM Flex System Manager Chassis Map
The IBM Flex System Manager offers a Chassis Map, which is the single point of
management and starting point for IBM Flex System. It allows for physical navigation through
the entire system, as shown in Figure 3-1.

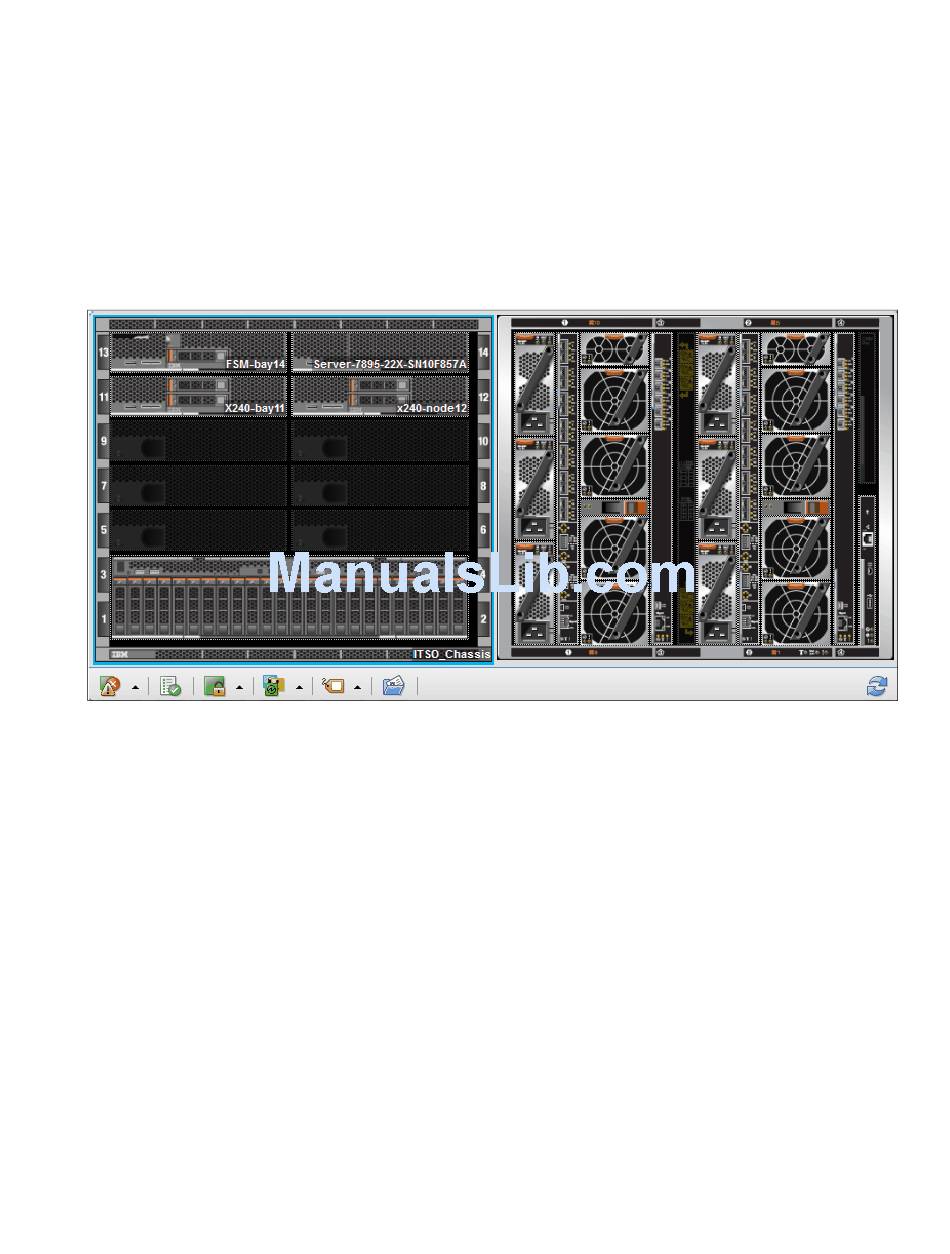

Figure 3-1 FSM Chassis Map
