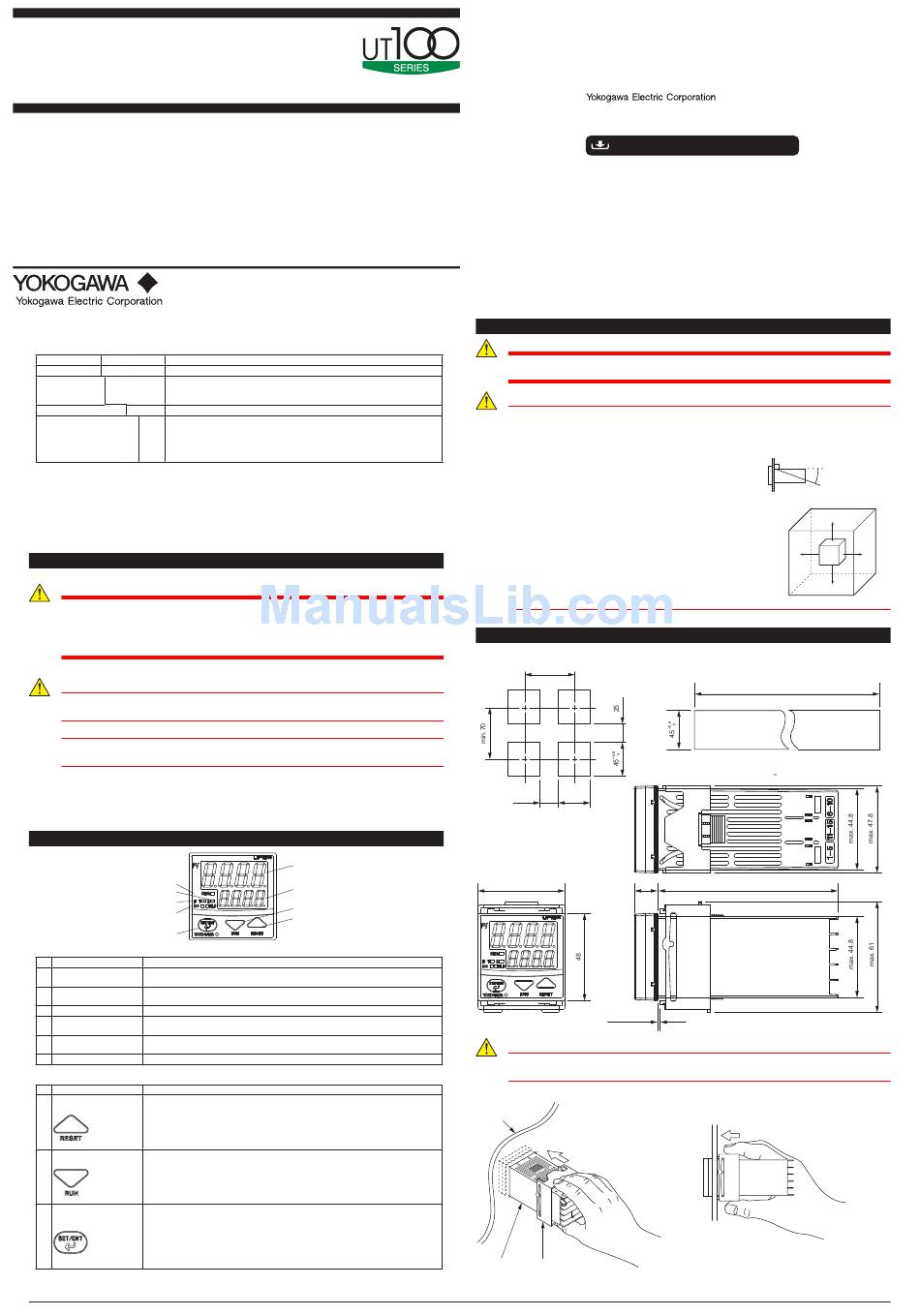

YOKOGAWA UP150 User Manual

User's
Model UP150
Program Temperature Controller
Manual
Installation / Initial Settings
Please read through this user's manual to ensure correct usage of the controller and keep it handy for quick reference.
Contents
1.

Notice ....................................................................... 1

2.

What is on the Front Panel? ..................................... 1

3.

Installing the Controller ............................................ 1

4. Panel Cutout Dimensions and External
Dimensions .............................................................. 1
5. Wiring ....................................................................... 2
6. Hardware Specifications .......................................... 2
7. Key Operations ....................................................... 3
 Checking Package Contents
Before using the product, check that its model & suffix codes are as you ordered.
Model and Suffix Codes
Model Suffix code
UP150 Program Temperature Controller
–R Relay output (time-proportional PID or on/off control)
Control output for
–V Voltage pulse output (time-proportional PID)
standard type
–A 4 to 20mA output (continuous PID)
Fixed code N Always N
/EX RUN/RESET switching, and HOLD program/cancel HOLD program switching
Option /RET PV retransmission output in 4 to 20mA
/RS Communication function (MODBUS, PC-Link, Ladder) (Note1) (Note2)
/V24 Power Supply 24V DC / 24V AC
Note1: /RS option and /EX option cannot be specified at the same time.
Note2: When specifying the /RS option, be sure to order the required number of copies of Communication Functions
User's Manual separeately.
Check the package contents against the list below.
• Program temperature controller ............ 1
• Mounting bracket .............................. 1
• User's manual (this manual) ............... 1
1. Notice
The following safety symbol is used both on the product and in this user's manual.
WARNING
This symbol stands for "Handle with Care." When displayed on the product, the
operator should refer to the corresponding explanation given in the user's manual in
order to avoid injury or death of personnel and/or damage to the product. In the manual
the symbol is accompanied by an explanation of the special care that is required to
avoid shock or other dangers that may result in injury or loss of life.
The following symbols are used in this manual only.
CAUTION
Indicates that operating the hardware or software in a particular manner may lead to
damage or result in system failure.
IMPORTANT
Draws attention to information that is essential for understanding the operation and/or
features of the product.
 Exemption from Responsibility
Make sure that all of the precautions are strictly adhered to. Yokogawa Electric Corporation assumes
no liability for any damage resulting from use of the instrument in contradiction to the precautions.
Also, Yokogawa Electric Corporation assumes no liability to any party for any loss or damage, direct
or indirect, caused by the use or any unpredictable defect of the instrument.
2. What is on the Front Panel ?
c.
e.
d.
f.
i.
 Monitoring Parts
Name
Indicates PV (measured value) and character information such as parameter codes
a. PV display (red)
and error codes. Indicates PV and "AT" alternately during Auto-tuning.
Indicates SP (target setpoint), segment no., remaining segment time and parameter
b. SP display (green)
setpoints on SP display.
c. SEG lamp (green) Lit when the value of segment no. or remaning segment time is displayed.
EV1 : Lit when event 1 (PV event 1 or Time event 1) is activated.
d. EV1, EV2 lamps (red)
EV2 : Lit when event 2 (PV evnet 2 or Time evnet 2) is activated.
Lit while the operation mode is "RUN".
e. RUN lamp (orange)
Flashing while the operation mode is "WAIT".
f. HLD (hold) lamp (green) Lit while the operation mode is "HOLD".
 Operating Parts (See 7. Key operations)
Name
Data change key
• Pressing this key for more than 1 second (in operating display) stops (resets) the
(or Reset key)
program operation.
g. • Changes the program setpoints(SP) and the parameter setpoints.
• Pressing this key increases the parameter setpoint.
Holding down the key will gradually increase the speed of changes.
Data change key
• Pressing this key for more than 1 second (in operating display) starts (runs) the
(or Run key)
program operation.
h. • Changes the program setpoins(SP) and the parameter setpoints.
• Pressing this key decreases the parameter setpoint.
Holding down the key will gradually decrease the speed of changes.
• Switches the operating displays ,  and .
SET/ENT key
• Registers the data value changed using the data change keys.
(data registering key)
• Switches between parameter setting displays sequentially.
i. • Pressing the key for 3 seconds or longer in the operating display retrieves the
operating parameter setting display.
• Pressing the key for 3 seconds or longer in operating, setup or program parameter
setting display transfers back to operating display .
Revision Record
IM 05C01F12-01E 1st Edition: Feb. '01
2nd Edition: Jun. '04
3rd Edition: Mar. '16
IM05C01F12-01E
1st Edition Feb. 2001 (YK)
3rd Edition Mar. 2016 (YK)
Description
by external contacts(Note1)
a.
b.
h.
g.
Function
Function
2-9-32, Naka-cho Musashino-shi, Tokyo 180-8750 Japan
Phone: +81-422-52-7179
You can download the latest manuals from the following website:
http://www.yokogawa.com/ns/ut/im/
• Authorised Representative in the EEA
Yokogawa Europe BV. (Address: Euroweg 2 , 3825 HD Amersfoort, The Netherlands) is
the Authorised Representative of Yokogawa Electric Corporation for this Product in the
EEA.
• Printed Manuals
Model UP150 Program Temperature Controller (IM 05C01F12-01E)
UT100 Series Communication Functions (IM 05C01E12-10E)
• General Specifications
Model UP150 Program Temperature Controller (GS 05C01F12-01E)
3. Installing the Controller
WARNING
To prevent electric shock, the source of power to the controller must be turned off when
mounting the controller on to a panel.
CAUTION
To install the controller, select a location where:
1. No-one may accidentally touch the terminals;
2. Mechanical vibrations are minimal;
3. Corrosive gas is minimal;
4. The temperature can be maintained at about 23°C
with minimal fluctuation;
5. There is no direct heat radiation;
6. There are no resulting magnetic disturbances;
7. The terminal board (reference junction compen-
sation element, etc.) is protected from wind;
8. There is no splashing of water; and
9. T here are no flammable materials.
Never place the controller directly on flammable items.
If the controller has to be installed close to flammable items or
equipment, be sure to enclose the controller in shielding panels
positioned at least 150mm away from each side. These panels
should be made of either 1.43mm thick metal-plated steel plates
or 1.6mm thick uncoated steel plates.
4.

Panel Cutout Dimensions and External Dimensions

1. General Mounting
min. 70
+0.6
25 45
0
48
Panel thickness
1 to 10
CAUTION
Splash-proof construction is not available when the side-by-side close mounting
method shown in the above figure, is chosen for any of the controllers.
 Mounting the Controller
Panel 1. Affix the bracket over the back
end of the controller.
UP150 Bracket
[ How to remove the bracket ]
To remove the bracket, push down the center of the upper and lower parts of the controller softly.
The bracket is released from the latch.
1
Facsimile: +81-422-52-6793
● Mount the controller at an angle
within 30° from horizontal with
the screen facing upward. Do not
mount it facing downward.
150mm
150mm
2. Side-by-side Close Mounting
(Splash-proof construction is unavailable)
× +
+0.6
[(N –1) 48 45]
0
N is the number of controllers.
If N > 5, then measure the actual length.
12 100
2. Push the bracket to the panel,
and then secure the bracket
into position.
30° (MAX)
150mm
150mm
Unit: mm
