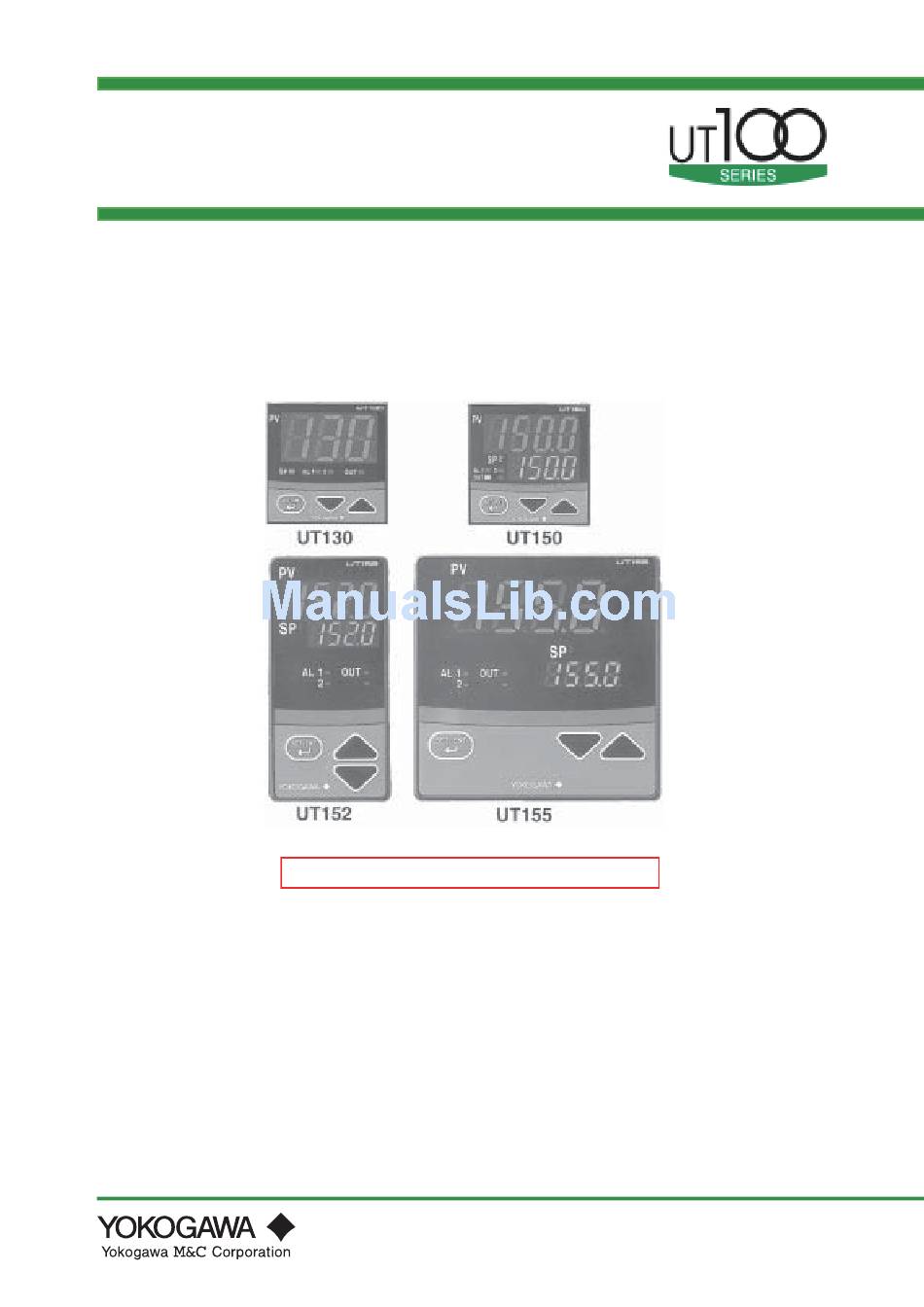

TI 05C01E02-01E
Easy-to-use Controllers for Operators
Compact Body
Large Display
48 x 48mm
Simple Operation
Less Space
48 x 96mm
UT130, UT150/UT152/UT155
Temperature Controller
The following product was discontinued as of November 30, 2015.
Discontinued product: UT152, UT155 Temperature Controller
Features
• Large display
• Simple operation
• Available 24V AC/DC power supply
• Dynamic Auto Tune control
• Full alarm functions
• Retransmission outputs
•Timer function
• RUN / STOP switching
Compact Body
Full Functions
48 x 48mm
Simple Operation
Large Display
96 x 96mm
TI 05C01E02-01E
© Copyright Oct. 2001
1st Edition: Oct. 2001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UT130 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for YOKOGAWA UT130

Summary of Contents for YOKOGAWA UT130

  • Page 1 Technical UT130, UT150/UT152/UT155 Temperature Controller Information TI 05C01E02-01E Easy-to-use Controllers for Operators Compact Body Compact Body Full Functions Large Display 48 x 48mm 48 x 48mm Simple Operation Simple Operation Less Space Large Display 48 x 96mm 96 x 96mm The following product was discontinued as of November 30, 2015.
  • Page 2 Blank Page...

  • Page 3: Introduction

    The UT100 Series contr oller s are the contr oller s mainl y for temperature contr ol. The UT100 Series contr oller s are de veloped using the ne west tec hnology based on the Yokogawa Group’ s experience f or contr ol f or y ears and results cultiv ated fr om man y applications.
  • Page 4 Blank Page...

  • Page 5: Table Of Contents

    2.5 User’s Manual ......................2-8 3. NAMES AND FUNCTIONS OF EACH PART / PARAMETER ......3-1 3.1 UT130 Names and Functions of Each Part (Principles of Key Operation) ... 3-1 3.2 UT130 Parameter Flowchart and Description ............3-2 3.3 UT150/UT152/UT155Names and Functions of Each Part (Principles of Key Operation) ..3-6 3.4 UT150/UT152/UT155 Parameter Flowchart and Description ........
  • Page 6 5.9 Using Timer Function (Turning on External Contact Outputs after the Set Time Elapses) ..5-6 5.10 Setting Key Lock ....................5-7 5.11 Selecting Priority of PV/SP Display at Power on (for UT130 Only) ..... 5-8 5.12 Performing Heating/Cooling Control ..............5-8 5.13 Communicating with PC or PLC ................
  • Page 7 Toc-3 <Int> <Ind> <Rev> 7. TROUBLESHOOTING ................... 8-1 8. INSTALLATION AND HARDWARE SPECIFICATIONS ......... 8-1 8.1 Installation ......................8-1 8.2 Panel Cutout Dimensions and External Dimensions ........... 8-3 8.3 Wiring ........................8-7 8.4 Hardware Specifications ..................8-12 TI 05C01E02-01E 1st Edition : Oct. 31, 2001-00...
  • Page 8 Blank Page...

  • Page 9: Description Of Temperature Control

    <Toc> <Ind> 1. DESCRIPTION OF TEMPERATURE CONTROL ■ Temperature Controller The temperature controller is used to keep the fixed temperature of such as a furnace (controlled object). In general, the temperature controller has temperature indicating display and setpoint setting display, generates a control signal according to the differ- ence between a indicating value (measured temperature value) and SP to finally make the temperature agree with SP.

  • Page 10: Ti 05C01E02-01E 1St Edition : Oct. 31,

    <Toc> <Ind> ■ Types of Temperature Control Action ON/OFF action is the simplest action among the control actions. ON/OFF action of the internal thermostat keeps the optimum temperature. But the temperature control output fluctuates in the fixed cycle with ON/OFF action. If this temperature cycle causes a problem, the control action that changes the output in proportion to the devia- tion (the difference between the target setpoint and present value) can give a better control performance.

  • Page 11: Information To Order A Controller

    <Toc> <Ind> 2. INFORMATION TO ORDER A CONTROLLER 2.1 Model and Suffix Codes The models and suffix codes of UT130, UT150/UT152/UT155 standard types are as follows: Type External Appearance Options Output Standard Type Model UT130-RN Relay output Without alarm Without...
  • Page 12 <Toc> <Ind> ■ Standard type ● UT130 Standard Type: Model and Suffix Codes Model and Suffix Codes Model Suffix codes Description UT130 Temperature controller (48 x 48 x 100mm) Relay output (time-proportional PID or on/off control) Control output Voltage pulse output (time-proportional PID control)
  • Page 13 Note 4: When specifying the "/RS" option, be sure to order the required number of copies of the Communication Functions User’s Manual (IM 05C01E12-10E) separately. (See Page 2-8) ■ Heating/Cooling Type ● UT130 Heating/Cooling Type: Model and Suffix Codes Model and Suffix Codes Model...
  • Page 14 <Toc> <Ind> ● UT150 Heating/Cooling Type: Model and Suffix Codes Model and Suffix Codes Model Suffix codes Description UT150 Temperature controller (48 x 48 x 100mm) Control Relay output (time-proportional PID or on/off control) output Voltage pulse output (time-proportional PID control) for heating 4 to 20mA output ( current PID) (Note1) Control...

  • Page 15: Mandatory Items To Specify

    See “2.1 Model and Suffix Codes” for combinations of options. ● When using one or two Alarms, specify the “ /AL “ option. <Example> Model and Suffix Codes: UT130-RN/AL ● When using Heater Disconnection Alarm, specify the “/HBA” option. The “/HBA”...

  • Page 16: Other Items To Specify

    ● Quality Inspection Certificate(QIC) Model: DOCTC ● Calibration certificate (traceability) “Traceability declaration to the national standards” and “Explanation of the Yokogawa’s internal system for traceability” Model: Q62188-B ■ Auxiliary Equipment and Spare Parts ● 250Ω Resistor When a measured input signal is 4 to 20mA DC, the temperature controllers (UT150/ UT152/UT155) receive it after converting to a 1 to 5V DC signal.
  • Page 17 Items to specify Description Specify "1" to "7", "12", "13", and "15 to "19" for UT130. Specify "1" to "23" for UT150/UT152/UT155. If no input type is specified at the time of ordering, the temperaturecontroller is shipped with the parameter set to OFF (unidentified).

  • Page 18: User's Manual

    ● User’s Manual for UT130 (A4 size) Document Number: IM05C01E02-41E ● User’s Manual for UT150/UT152/UT155 (A4 size) Document Number: IM05C01E12-41E ● Communication Functions User’s Manual for UT130, UT150/UT152/UT155 (A4 size) Document Number: IM05C01E12-10E TI 05C01E02-01E 1st Edition : Oct. 31, 2001-00...

  • Page 19: Names And Functions Of Each Part / Parameter

    <Toc> <Ind> 3. NAMES AND FUNCTIONS OF EACH PART / PARAMETER 3.1 UT130 Names and Functions of Each Part (Principles of Key Operation) SP display lamp (orange) Data display (red) • In the operating display, either PV (measured value) or •...

  • Page 20: Ut130 Parameter Flowchart And Description

    <Toc> <Ind> 3.2 UT130 Parameter Flowchart and Description N O T E P o w e r O N When IN appears, press the When the measured input range code has key to display the measured input been already set, the operating display shown range code you want to use, then below appears.
  • Page 21 <Toc> <Ind> (1) Target Setpoint (SP) Code Name Setting range and unit Default User setting Reference page Minimum value (SPL) to maximum value (SPH) of target setpoint (SP value display) P.4-9 Target range setpoint Unit: °C/°F Numbers in ( ) are the parmeter setpoints that apply when the communication function is used.
  • Page 22 <Toc> <Ind> NOTE Changing certain setup parameter may automatically initialize the operating parameters. Therefore, after you change the setup parameters, always check the operating parameter settings to find out if appropriate values have been set for them. If the operating parameters have been initialized, set them to their appropriate values.
  • Page 23 <Toc> <Ind> Numbers in ( ) are the parmeter setpoints that apply when the communication function is used. Ex. OFF(0), ON(1) (3) Setup Parameters: Parameters rarely changed in normal use after once having been set. Code Name Setting range and unit Default User setting Reference page 1 to 7, 12, 13, 15 to 19, 31 to 37, 42, 43, 45 to 48 (See the...

  • Page 24: Ut150/Ut152/Ut155Names And Functions Of Each Part (Principles Of Key Operation)

    <Toc> <Ind> 3.3 UT150/UT152/UT155Names and Functions of Each Part (Principles of Key Operation) SP2 lamp (green) PV display (red) Lit when SP2 is being used for control operation. Indicates PV (measured value) and character information such as parameter codes and error codes. Alarm 1 (AL1), Alarm 2 (AL2) lamps (red) AL1: Lit when the alarm 1 is activated.
  • Page 25 <Toc> <Ind> SP2 lamp (green) PV display (red) Lit when SP2 is being used for control operation. UT155 Indicates PV (measured value) and character information such as parameter codes and error codes. Alarm 1 (AL1), Alarm 2 (AL2) lamps (red) AL1: Lit when the alarm 1 is activated.

  • Page 26: Ut150/Ut152/Ut155 Parameter Flowchart And Description

    <Toc> <Ind> 3.4 UT150/UT152/UT155 Parameter Flowchart and Description P o w e r O N When measured input range code has been already set, N O T E the operating display 1 shown below appears. is displayed When IN appears, press the key to display the measured input Operating display range code you want to use, then...
  • Page 27 <Toc> <Ind> (1) Target Setpoint (SP) and Timer Settings 1 and 2 Code Name Setting range and unit Default User setting Reference page Target Minimum value (SPL) to maximum value (SPH) of target setpoint (SP value display) P.4-10 setpoint range 0.0 to 99.59 Timer 0.00...
  • Page 28 3-10 <Toc> <Ind> NOTE Changing certain setup parameter may automatically initialize the operating parameters. Therefore, after you change the setup parameters, always check the operating parameter settings to find out if appropriate values have been set for them. If the operating parameters have been initialized, set them to their appropriate values.
  • Page 29 3-11 <Toc> <Ind> (3) Setup Parameters: Parameters rarely changed in normal use after once having been set. Code Name Setting range and unit Default User setting Reference page 1 to 23, 31 to 48 (See input range code list.) OFF(0), or the input Measured OFF(0): No input range code...
  • Page 30 Blank Page...

  • Page 31: Basic Operations

    <Toc> <Ind> 4. BASIC OPERATIONS This chapter describes an operating procedure using temperature controllers UT130 and UT150 of standard type with the alarm option as an example. Regarding the operating procedure for the heating/cooling type controller or for the controller with the options other than the alarm, confirm whether the some parameters appear or not referring to the parameter flowchart in “3.
  • Page 32 UT150/UT152/UT155 Display example Display example Step 1: The parameter "IN" (measured input type) appears at power on. Step 2 (for UT130 only) Press the key once to display the setpoint. Step 3: Press the key to set the required setpoint for the measured input type.
  • Page 33 <Toc> <Ind> ● Setting a Voltage Input Type and Display Scale (for UT150/UT152/UT155 only) The following operating procedure describes an example of setting “1 to 5V DC voltage input signals” for the measured input type, and “0.0 to 500.0” for the display scale. UT150/UT152/UT155 <Operating Procedure>...
  • Page 34 <Toc> <Ind> From the previous page Step 7: Press the key once to display the parameter "IN" (measured input type). The value set in steps 1 to 3 appears. Step 8: Press the key once. In this example, the parameter "DP" (decimal point position) is set to "1" (one decimal place).

  • Page 35: Setting Control Action

    "/AL" or" /HBA" option Step 3: Press the key several times to display the parameter "CTL"(control mode). Step 4 (for UT130 only) Press the key once to display the setpoint. Step 5: Press the key to select a control action.

  • Page 36: Switching Direct / Reverse Action

    ( PV value is smaller ) ( PV value is greater ) ( PV value is smaller ) ( PV value is greater ) <Operating Procedure> UT130 UT150/UT152/UT155 Display example Display example Step 1: Bring the operating display into view.
  • Page 37 <Toc> <Ind> From the previous page Step 4 (for UT130 only) Press the key once to display the From the previous page setpoint. Step 5: Press the key to display "-1". Flashes during change. Flashes during change. Step 6: Press the key once.

  • Page 38: Setting Cycle Time (Control Output Renewal Period)

    "/AL" or" /HBA" option Step 3: Press the key several times to display the parameter "CT". Step 4 (for UT130 only) Press the key once to display the setpoint. Step 5: Press the key to set the cycle time.

  • Page 39: Setting Target Setpoint (Sp)

    <Toc> <Ind> 4.3 Setting Target Setpoint (SP) 4.3.1 Setting Target Setpoint (SP) of UT130 The following operating procedure describes an example of setting “200°C” for the target setpoint. <Operating Procedure> UT130 Display example Step 1: Bring the operating display into view.

  • Page 40: Setting Target Setpoint (Sp) Of Ut150/Ut152/Ut155

    4-10 <Toc> <Ind> 4.3.2 Setting Target Setpoint (SP) of UT150/UT152/UT155 ■ Setting / Changing SP in Operating Display (for Target Setpoint 1: SP1 only) The following operating procedure describes an example of setting “200°C” for the target setpoint 1. <Operating Procedure> UT150/UT152/UT155 Display example Step 1:...
  • Page 41 4-11 <Toc> <Ind> From the previous page Step 3: Press the key several times to display the parameter "SP 1"(target setpoint 1). The parameter "SP 1" appears only for the controller with the "/EX" option. Step 4 Press the key to set the target setpoint 1 (SP 1).

  • Page 42: Setting Alarms

    4-12 <Toc> <Ind> 4.4 Setting Alarms Alarm function is available only for the controller with “/AL” or “HBA” option. Heater disconnection function is available only for the controller with “/HBA” option. Timer function is available only for the controller with “/AL/EX” or “/HBA/EX” option. 4.4.1 Setting Alarm Type and Hysteresis The table below shows the alarm codes and alarm actions.
  • Page 43 4-13 <Toc> <Ind> The alarm hysteresis (ON/OFF band) is effective when used as the figure below. The alarm hysteresis can be set between 0.0 to 100% of measured input range. The setting is a temperature setting. Example Alarm 1 type (AL1): PV high limit alarm Alarm 1 type (AL1): PV high limit alarm Alarm 1 hysteresis (HY1): 5°C Alarm 1 hysteresis (HY1): 15°C...
  • Page 44 "LOC" = -1 only. To change the parameter value, set "LOC" = 0 at first (for disabling key lock), then set "LOC" = -1 once again Step 4 (for UT130 only) Press the key once to display the setpoint. Step 5: Press the key to display "-1".
  • Page 45 4-15 <Toc> <Ind> From the previous page Step 8 (for UT130 only): Press the key once to display the setpoint. From the previous page Step 9: Press the key to set the alarm type code. In this example, the "deviation high and low limit"...

  • Page 46: Setting Alarm Setpoint

    "/AL" or" /HBA" option. The parameter "CTL" appears for the controller without the "/AL" or" /HBA" option, and in this case, the alarm function is not Step 3 (for UT130 only) Press the key once to display the setpoint. Step 4: Press the key to display "10".

  • Page 47: Heater Disconnection Alarm Function

    4-17 <Toc> <Ind> 4.4.3 Heater Disconnection Alarm Function The heater disconnection alarm is the function to detect the deterioration or disconnec- tion of heater by the current value at ON output in ON/OFF control or in time-propor- tional control. This function is available for the controller with the “/HBA” option. Heater disconnection alarm can be used for the alarm 1 only.
  • Page 48 Blank Page...

  • Page 49: Applied Operations

    <Toc> <Ind> 5. APPLIED OPERATIONS 5.1 Changing Measured Input Type and Scale • The measured input range is decided by Example of Temperature Input setting the range code for measured input. °C °C -270 1370 Parameters to be set for temperature input 1.

  • Page 50: Reducing Input Variations

    <Toc> <Ind> 5.3 Reducing Input Variations • If input noise or variations cause the • Filter Effect low-order display digits to fluctuate so that the displayed value is difficult to With a small time constant read, filtering of inputs will reduce the variations.

  • Page 51: Setting Target Sepoint Ramp Rate (Rate-Of-Change)

    <Toc> <Ind> 5.5 Setting Target Sepoint Ramp Rate (Rate-of- Change) • This function is available for UT150/UT152/UT155. (1) When SP is changed (2) When SP No. is switched • Old SP SP(SP2) To prevent the target setpoint (SP) from changing suddenly or to change it at a Specified constant rate, set the ramp-up rate ramp rate...

  • Page 52: Using Two Target Setpoints

    <Toc> <Ind> 5.6 Using Two Target Setpoints • This function is available for UT150/UT152/UT155 with the "/EX" option. Temperature • SP is switched using the external contact inputs. The external contact input terminals for SP switching are different according to the parameter "DIS"...

  • Page 53: Switching Run/ Stop

    <Toc> <Ind> 5.8 Switching RUN/ STOP • <Central instrument room> This function is available for UT150/UT152/UT155 with the "/EX" Operating panel option. • RUN/STOP is switched using the external contact inputs. Start Stop The external contact input terminals for RUN/STOP switching are different *The figure below shows the assignment according to the parameter "DIS"...

  • Page 54: Using Timer Function (Turning On External Contact Outputs After The Set Time Elapses)

    <Toc> <Ind> 5.9 Using Timer Function (Turning on External Contact Outputs after the Set Time Elapses) • This function is available for UT150/UT152/UT155 with the "/EX/AL" or • The timer function turns on or off external contact outputs when the timer setting time "/EX/HBA"...

  • Page 55: Setting Key Lock

    <Toc> <Ind> 5.10 Setting Key Lock • The Lock can be set for the parameters of UT100 series controllers. Setting key lock prevents the parameters from being changed intentionally by outsider. 0: No key lock 1: Prevents the parameters from being changed except for the SP in the operating display.

  • Page 56: Selecting Priority Of Pv/Sp Display At Power On (For Ut130 Only)

    (for UT130 Only) The priority of PV or SP display on operating display can be selected because UT130 has only one data display. The data (PV or SP) selected in the parameter "DSP" is displayed at power on or when returning to the operating display from the parameter setting display by pressing the key for at least 3 seconds.

  • Page 57: Communicating With Pc Or Plc

    RS232C/RS485 converter (model ML1) is necessary. Personal computer PLC(FA-M3, MELSEC etc.) • Communication with a PLC (FA-M3) manufactured by Yokogawa is through ladder communication module (F3RZ91- 0N) or personal computer link module (F3LC11-2N). The communication protocol is ladder or personal computer link.
  • Page 58 "50" is written to SP. • Communication Protocol Communication Hardware 2-wire RS-485 communication system Terminal Terminal numbers: 3 to 5 (UT130/UT150), 26 to 28 (UT152/UT155) Communication PC link communication without sum check PC link communication with sum check...
  • Page 59 When "3: ASCII mode" is selected for MODBUS communication in protocol selection, the data length is fixed to "7". When "4: RTU mode" is selected, it is fixed to "8". • Wiring for Communication For UT130/UT150 connection • PC, or PLC UT130/UT150 UT130/UT150...
  • Page 60 Blank Page...

  • Page 61: Description Of Each Function

    Alarm 1 output • Alarm 1 is set to PV low limit alarm. Alarm 1 setpoint Control output Terminal numbers for Terminal numbers for UT130/UT150 UT152/UT155 UT130/UT150 Alarm 1 output Alarm 1 output Control output Control output TI 05C01E02-01E...

  • Page 62: Proportional (P) Action

    <Toc> <Ind> 6.2 Proportional (P) Action 6.2.1 Differences between ON/OFF Action and Proportional Action • The proportional band is the parameter that determines the effectiveness of • Differences between ON/OFF Action and Proportional Action proportional action. ON/OFF action Proportional Action •...

  • Page 63: Tuning The Proportional Band

    <Toc> <Ind> 6.2.3 Tuning the Proportional Band • The proportional band (P) is adjusted as shown in the figure on the left. To fine-tune a proportional band obtained using auto-tuning, or to manually tune the proportional band: Work from larger to smaller numbers (wider to narrower) •...

  • Page 64: Integral (I) Action

    (PI action). Small integral time Parameter Range Large integral time UT130: 1 to 999 sec or OFF UT150/UT152/UT155: Output change due to I action 1 to 3600 sec or OFF Output (%) Output change •...

  • Page 65: Derivative (D) Action

    Parameter Range Time UT130: If D is too large, short-period oscillation appears • 1 to 999 sec or OFF in the measured temperature. UT150/UT152/UT155:...

  • Page 66: Dynamic Auto Tune Control And Pid Control

    <Toc> <Ind> 6.5 Dynamic Auto Tune Control and PID Control 6.5.1 Dynamic Auto Tune Control • What is Dynamic Auto Tue Control? Dynamic auto tune control is one of the features offered by the temperature "Dynamic Auto Tune Control" is a sort of self-tuning controller.

  • Page 67: Manually Tuning Pid Constants

    <Toc> <Ind> 6.5.2 Manually Tuning PID Constants • PID based output can be obtained by the equation on the left. Take this into • Procedure for manually tuning PID constants account when tuning PID parameters. Manual PID tuning procedure is as described in (2) to (5) on the left.

  • Page 68: Control Output

    <Toc> <Ind> 6.6 Control Output 6.6.1 Time Proportional PID Output (Relay Output / Voltage Pulse Output) • This function is available for UT130-RN or -VN, UT15X-RN or —VN. • In time proportional PID, the PID computation result is output in the form UT130/UT150 of an ON/OFF signal pulse width.

  • Page 69: Continuous Pid Output (4 To 20Ma Dc)

    6.6.3 Continuous PID Output (4 to 20mA DC) • This function is available for UT150X- • In continuous PID output, the PID UT130/UT150 computation result is output as a Furnace continuous analog signal. The analog signal that serves as manipulated output...

  • Page 70: Overshoot Suppressing Function "Super

    6-10 <Toc> <Ind> 6.7 Overshoot Suppressing Function “SUPER” 6.7.1 “SUPER” Operating Principles • The "SUPER" function monitors the • deviation for evidence that there is a "SUPER" is effective in the following cases. danger of overshoot, and on sensing such Overshoot must be suppressed.
  • Page 71 6-11 <Toc> <Ind> • Due to the gain changes that occur at the transition from ramp to soak, SUPER effects (2) conventional controls are inevitably prone to overshoot. Yet, if the PID Example of ramp to soak transition overshoot suppression control constants are set so that the output stabilizes more quickly in order to avoid Process: Small electric furnace...
  • Page 72 Blank Page...

  • Page 73: Troubleshooting

    <Toc> <Ind> 7. TROUBLESHOOTING In the event of an abnormality, perform the following checks as outlined by the flowchart. Is the controller defective? Completely inactive? Key operation failure? Display failure? I/O signal failure? Communication failure? Check the terminal connection Check key-lock Turn the power off, Verify the I/O spec.
  • Page 74 <Toc> <Ind> ■ When Power Failure Occurred during Operation ● Momentary power failures of less than 20ms (or less than 1ms when “/V24” is specified) have no effect on the controller operation (i.e., normal operation continues). ● For power failures longer than 20ms (or longer than 1ms when “/V24” is specified), however the status will be as follows.

  • Page 75: Installation And Hardware Specifications

    <Toc> <Ind> 8. INSTALLATION AND HARDWARE SPECIFICATIONS 8.1 Installation CAUTION To prevent electric shock, the source of power to the controller must be turned off when mounting the controller on to a panel. NOTE To install the controller, select a location where: 1.
  • Page 76 2) Wiring should be carried out by personnel with appropriate electrical knowledge and experience. IMPORTANT • Always fix a terminal cover bracket to the UT130 and UT150 controllers before wiring if an optional tional anti-electric-shock terminal cover (part number: L4000FB) is used.

  • Page 77: Panel Cutout Dimensions And External Dimensions

    <Toc> <Ind> 8.2 Panel Cutout Dimensions and External Dimensions ■ UT130 Panel cutout dimensions and external dimensions 1. General Mounting 2. Side-by-side Close Mounting (Splash-proof construction is unavailable) Unit: mm *IP65 is unavailable. min. 70 +0.6 [(N —1) +0.6 (25)
  • Page 78 <Toc> <Ind> ■ UT150 Panel cutout dimensions and external dimensions 1. General Mounting 2. Side-by-side Close Mounting (Splash-proof construction is unavailable) Unit: mm *IP65 is unavailable. min. 70 +0.6 [(N —1) N is the number of controllers. ‡ If N 5, then measure the actual length. +0.6 (25) Panel thickness...
  • Page 79 <Toc> <Ind> ■ UT152Panel cutout dimensions and external dimensions 1. General Mounting 2. Side-by-side Close Mounting (Splash-proof construction is unavailable) Unit: mm *IP65 is unavailable. min. 70 +0.6 [(N —1) 48+45] N is the number of controllers. ‡ If N 5, then measure the actual length. +0.6 (25) Panel thickness...
  • Page 80 <Toc> <Ind> ■ UT155 Panel cutout dimensions and external dimensions 1. General Mounting 2. Side-by-side Close Mounting (Splash-proof construction is unavailable) Unit: mm *IP65 is unavailable. min. 117 +0.8 [(N —1)x96+92] N is the number of controllers. If N 5, then measure the actual length. ‡...

  • Page 81: Wiring

    5) When there is the possibility of being struck by external lightening surge, use the arrester to protect the instrument. IMPORTANT Always fix a terminal cover bracket to the UT130 controller before wiring if an optional anti-electric- shock terminal cover (part number: L4000FB) is used. TI 05C01E02-01E...
  • Page 82 Recommended Terminals Use M3.5 screw-compatible crimp-on terminals with an insulating sleeve, as shown below. φ 3.7mm φ 3.7mm ■ Standard Type ● UT130 Terminal Arrangement (Standard Type) Measured Value (PV) Input Alarm Outputs Universal input-selectable input type ALM2 TC Input...
  • Page 83 <Toc> <Ind> ● UT150 Terminal Arrangement (Standard Type) Retransmission Output Heater Current Detection Input Alarm Outputs Measured Value (PV) Input Universal input-selectable input type ALM2 DC mV or V Input TC Input RTD Input ALM1 — (Note 1) — — When /RET When /HBA When /AL or /HBA...
  • Page 84 8-10 <Toc> <Ind> ■ Heating/Cooling Type ● UT130 Terminal Arrangement (Heating/Cooling Type) Measured Value (PV) Input Alarm Outputs Universal input-selectable input type ALM2 TC Input RTD Input ALM1 Cooling-side Control Output — Relay Contact Output Voltage Pulse Output When /AL or /HBA is specified.
  • Page 85 8-11 <Toc> <Ind> ● UT152/155 Terminal Arrangement (Heating/Cooling Type) Note: The terminal arrangements of the UT152 and Parameter DIS External Contact Inputs UT155 are the same. 0 (Default) Timer starts RUN/STOP Timer starts STOP Measured Value (PV) Input switching when DI=ON when DI=ON Universal input-selectable input type Timer stops...

  • Page 86: Hardware Specifications

    • EMC standards: Complies with EN61326 Maximum allowable wiring resistance for RTD input: The UT130 and UT150 series temperature controllers conform to the standards 10W/wire (The resistance values of three wires must be the same.) specified under the following conditions.
