YOKOGAWA TC10 Engineering Manual
Hide thumbs Also See for TC10:

Advertisement

Quick Links

TC10
TEMPERATURE
CONTROLLER
Engineering Manual
Code: IM 05C01E81-02EN
Third edition: Feb. 2018
Yokogawa Electric Corporation
2-9-32 Nakacho, Musashino-shi, Tokyo 180-8750 Japan
www.yokogawa.com/ns

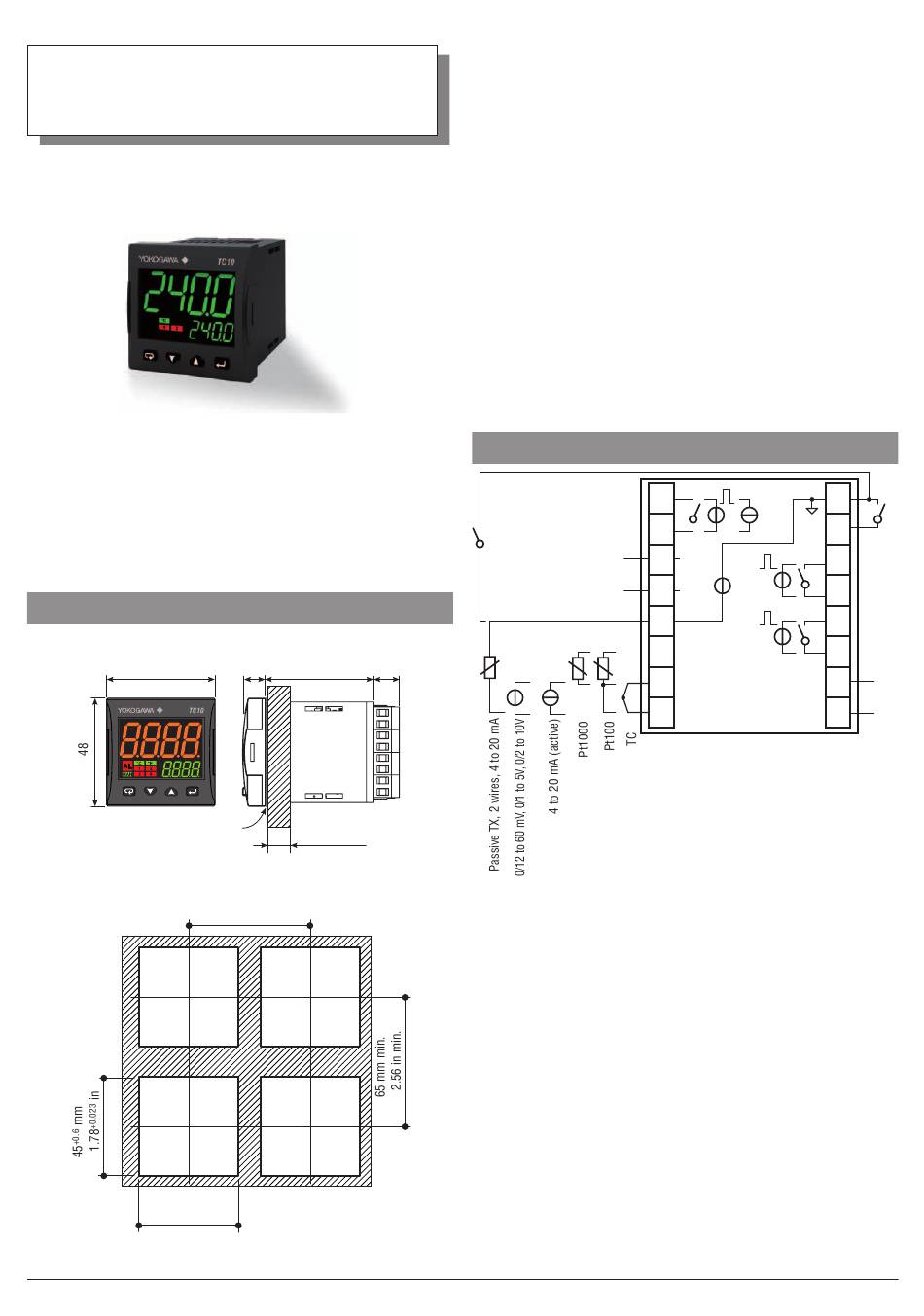

1. OUTLINE DIMENSIONS (mm)

1.1 INSTRUMENT DIMENSIONS

48
PV
Optional
gasket
1.2 PANEL CUT-OUT
45
+0.6
mm
1.78
+0.023
Yokogawa Electric Corporation - TC10 - ENGINEERING MANUAL - PAG. 1
48
11
AT
8 mm max.
65 mm min.
2.56 in min.
in

1.3 MOUNTING REQUIREMENTS

This instrument is intended for permanent installation, for
indoor use only, in an electrical panel which encloses the
rear housing, exposed terminals and wiring on the back.
Select a mounting location having the following characteristics:
1. It should be easily accessible;
2. There is minimum vibrations and no impact;
3. There are no corrosive gases;
4. There are no water or other fluids (i.e. condensation);
5. The ambient temperature is in accordance with the
operative temperature (0 to 50°C);
6. The relative humidity is in accordance with the instrument
specifications (20 to 90%);
The instrument can be mounted on panel with a maximum
thickness of 8 mm.
When the maximum front protection (IP65) is desired, the
optional gasket must be mounted.

2. CONNECTION DIAGRAM

DI2
12 VDC/20 mA max.
+
14
+
2.1 GENERAL NOTES ABOUT WIRING
1. Do not run input wires together with power cables.
2. External components (like zener barriers, etc.) connected
between sensor and input terminals may cause errors in
measurement due to excessive and/or not balanced line
resistance or possible leakage currents.
3. When a shielded cable is used, it should be connected at
one point only.
4. Pay attention to the line resistance; a high line resistance
may cause measurement errors.
+
NO
8
Out1
C
7
-
6
D -
-
RS485
5
D +
+
Out4
4
3
2
1
+
+
Relay Out 1:
4 (4) A/250 VAC
Relay Out 2, 3: 2 (1) A/250 VAC
SSR Out 1, 2 , 3: 10 VDC/15 mA
SSR Out4:
12 VDC/20 mA
Current Out1:
0/4 to 20 mA, 0/2 to 10V
+
DI1
16
15
-
+
NO
14
Out2
13
C
-
+
NO
12
Out3
C
11
-
10
Power
supply
9
