Inputs & Outputs
Line Out 2/R
1.
Line 2 or Stereo Right Channel male balanced XLR output with recessed
level control.
Line In 2/R
2.
Line 2 or Stereo Right Channel female balanced XLR input with recessed
level control.
Line Out 1/L
3.
Line 1 or Stereo Left Channel male balanced XLR output with recessed
level control.
Line In 1/L
4.
Line 1 or Stereo Left Channel female balanced XLR input with recessed
level control.
LAN Jack
5.
The LAN jack has a Link/Activity LED and 10/100 Mbps speed LED.
Remote Jack
6.
WARNING! Connecting this jack to any device besides a JK Audio
product may result in irreparable damage. This damage is not covered
under warranty.
Remote Header
7.
The removable screw terminal block provides connection to switch contacts
for remote operation. See page 17 for the Remote Header Pinout.
USB Jack
8.
Connecting the USB port to a computer is not necessary for typical
operation. The USB port should only be used by your IT administrator to
obtain the IP address or perform a "check file system" command.
Power Jack
9.
For connection only to the supplied 9VDC regulated power supply.

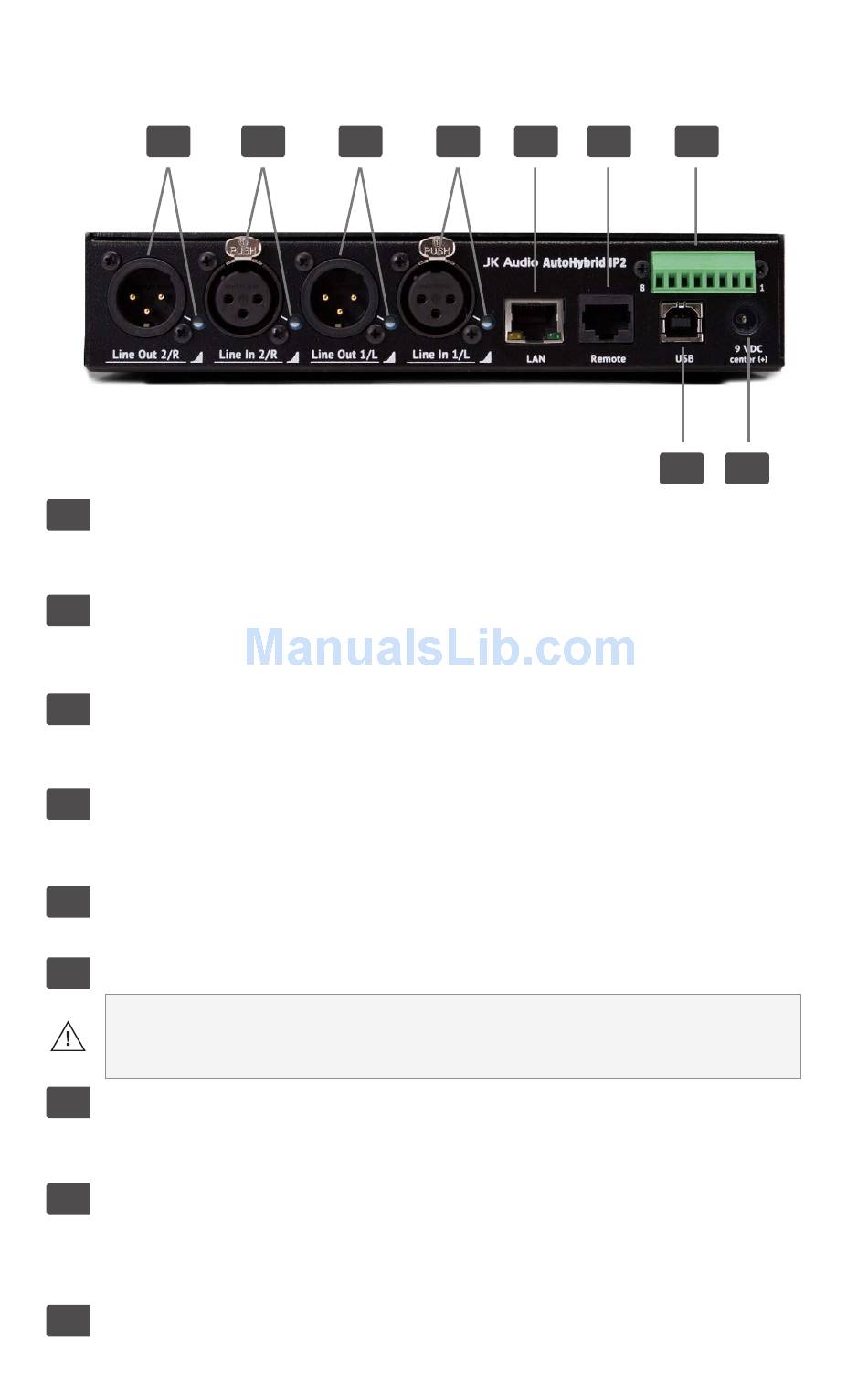

Getting to Know Your AutoHybrid IP2
2 3
(
For JK Audio products only)
4 5 6 7
8 9
