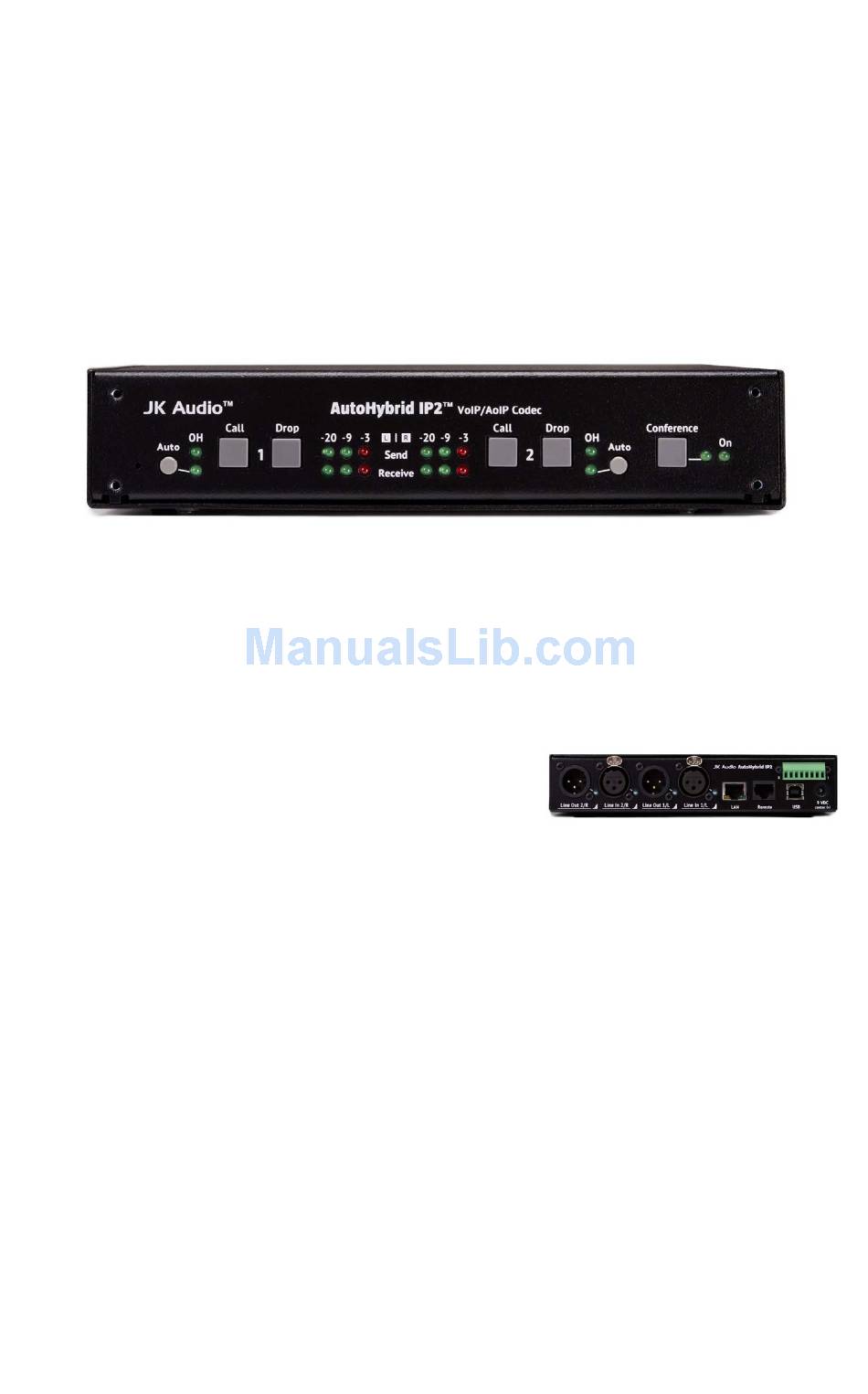

- Page 1 AutoHybrid IP2 ™ VoIP/AoIP Codec User Guide JK Audio...
-
Page 2: Thank You
Or, check out our FAQ section for answers to common questions. Limited Warranty The AutoHybrid IP2 is covered by a 2 year warranty to be free from defective workmanship and materials. To obtain service, contact JK Audio by phone or email for return authorization. -
Page 3: Table Of Contents
Contents Contents Overview Getting to know your AutoHybrid IP2 2 Controls & Indicators 3 Inputs & Outputs Getting Connected Logging In Graphic User Interface Call Management Accounts Audio Network System / Management FAQs Troubleshooting Block Diagram Technical Information FCC Compliance Notice... - Page 4 PoE or AC Mains Powered AGC & Ducking Optional RA2 Rack Mount Adapter Send and Receive LED Metering Female XLR Line Input (2) What’s in the Box? PS009 Power Supply CN114 Ethernet cable CN094 AC cable CN115 USB cable AutoHybrid IP2™ VoIP/AoIP Codec...
-
Page 5: Overview
VoIP mode, Line-level XLR jacks provide mono send and receive audio for Line 1 and Line 2. The AutoHybrid IP2™ Remote jack allows easy connection to the JK Audio Interchange™ Intercom Phone Bridge, offering an auto-answer VoIP connection into your party-line intercom. -
Page 6: Getting To Know Your Autohybrid Ip2
Line 2 Controls & Indicators Hidden Reset Switch Use a paper clip to reset the AutoHybrid IP2 instead of power cycling. Auto Answer When enabled, AutoHybrid IP2 automatically answers an incoming call and then disconnects after the caller hangs up. -
Page 7: Inputs & Outputs
The LAN jack has a Link/Activity LED and 10/100 Mbps speed LED. Remote Jack For JK Audio products only) WARNING! Connecting this jack to any device besides a JK Audio product may result in irreparable damage. This damage is not covered under warranty. -
Page 8: Getting Connected
3. Connect the supplied AC power cord to the back of the AutoHybrid and then to an AC power outlet. Or, enable Power over Ethernet (PoE) on your switch or router. Your AutoHybrid IP2 will be ready to take calls once a SIP Account is configured. What is SIP? Session Initiation Protocol. -
Page 9: Logging In
AutoHybrid IP2 but we recommend labeling the device with the IP address or the Account Name registered to the device. Logging In Enter the AutoHybrid IP2's IP address in the address bar in your browser to access the AH IP2 GUI. Default Username: admin Default Password: admin See Page 9 to change username and password. -
Page 10: Graphic User Interface
Graphic User Interface Note: Controls & Indicators 2-12 only apply to the corresponding line. Blue = On Gray = Off AutoHybrid IP2™ VoIP/AoIP Codec... -
Page 11: Call Management
Call Management Device Friendly Name Edit the Friendly Name under the System tab. Line Status, Caller ID, Active Codec, Caller Name Indicates when a line is On Hook, Off Hook or ringing. Caller ID and the active Codec will appear adjacent to the Line Status. If it is available, the Caller Name will appear below the Line Status. -
Page 12: Accounts
Accounts General Registering AutoHybrid IP2 replaces your VoIP phone, therefore you must register it with your VoIP service. On the Accounts tab, enter your account information. After you enter ALL of your account information, click <Save> and <Restart SIP Service>... -
Page 13: Local Port
Accounts Topology SIP Transport Mode There are three SIP Transport Modes: Automatic, TCP, and UDP. Automatic should be selected unless otherwise specified by your SIP service/ VoIP phone system IT administrator. Local Port This port number will be provided by your SIP service/VoIP phone system IT administrator. - Page 14 <Move Up> and <Move Down> buttons set priority for which codec is used. The preferred codecs list is saved on the AutoHybrid IP2, therefore users will not have to reselect their preferred codecs for each use. Users can save and store multiple profiles on their computer for different applications that might require different codecs.
- Page 15 Audio Conference Modes − A. Send Not Mixed These options allow you to enable and disable Caller Caller Send and Receive mix features. Keep in mind that no matter what options are selected, both callers will always be able to communicate with each other in Conference mode.
- Page 16 Network / System WAN Settings Dynamic IP AutoHybrid IP2 is assigned an IP address in the network. Static IP Obtain a static IP address from your internet service provider to have remote access via the public internet or create a unique static IP address on your LAN.
- Page 17 Configure Product Registration / Firmware Updates Your AutoHybrid IP2 contains many advanced features, but we are constantly looking for ways to improve. Product Registration allows us to keep you informed of any firmware updates that become available in the future.
-
Page 18: Faqs
AutoHybrid can also run using PoE power, supplied over the ethernet cable from a PoE equipped switch or router. 4. Will the USB port on the AutoHybrid IP2 act as a sound card when connected to a computer? No. The USB port is not designed to exchange audio between the AutoHybrid IP2 and your computer. -
Page 19: Troubleshooting
The LAN jack is not receiving a signal from the network or the ethernet cable is not connected properly. Basic Reset Insert a paperclip to restart AutoHybrid IP2 instead of power cycling Confirmation of the reset is indicated by lighting all the LEDs. Network Reset To reset the AutoHybrid IP2 to its default DHCP settings: Hold the <Line 1 Call>... -
Page 20: Block Diagram
Block Diagram Display XLR Line Input XLR Line Output VoIP/AoIP Hybrid/Codec XLR Line Input XLR Line Output Remote AutoHybrid IP2™ VoIP/AoIP Codec... -
Page 21: Technical Information
Maximum Operating 2,000 meters (6,562 feet) Altitude Misc Remote Jack: RJ50 Proprietary interface to JK Audio Products Only PoE (Power over Ethernet) or +9 VDC Power: with AC power supply Size: 7.6” x 5.3” x 1.5” (20 x 14 x 4 cm) Weight: 1.2 lbs (0.5 kg) -
Page 22: Fcc Compliance Notice
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his/her own expense. Changes or modifications not expressly approved by JK Audio can void the user’s authority to operate the equipment. AutoHybrid IP2™ VoIP/AoIP Codec... - Page 23 1311 E 6 Street Sandwich, Illinois 60548 USA Address: Declares that the product: Product Name: AutoHybrid IP2 VoIP / AoIP Codec Model Numbers: AutoHybrid IP2, AutoHybrid IP2-AE Conforms to the following Product Specifications: Safety: IEC 60950-1:2005 (Second Edition) +Am 1:2009 + Am 2:2013...
- Page 24 AutoHybrid IP2™ VoIP/AoIP Codec User Guide Version 6/22/17 JK Audio, Inc. 1311 E 6th St. Sandwich, IL 60548 United States Telephone: 815.786.2929 Toll Free: 1.800.jkaudio Fax: 815.786.8502 www.jkaudio.com © 2017 JK Audio, Inc. All rights reserved. JK Audio...
