Specifications; Standard Features; Optional Features - Cardinal MED VUE Mv1 Owner's Manual

Power Requirements . . . . . . . . 6 "C" cell Alkaline, Ni-Cad or NiMH batteries (not included)
Operating Temperature . . . . . . 14 to 104 ºF (-10 to +40 ºC)
Display . . . . . . . . . . . . . . . . . . . Weight: 5 digit, seven segment, 7/8" (22.23 mm) high LCD
Sensitivity . . . . . . . . . . . . . . . . . 0.5 uV/division (0 to 3.0 mV/V), Class III
Signal Input Range . . . . . . . . . 0 to 15mV max.
Transducer Excitation . . . . . . . 5.0 VDC
Number of Load Cells . . . . . . . up to 4 each 350
Load Cell Cable Length . . . . . . 30 feet (9 meters) max.
Resolution . . . . . . . . . . . . . . . . 10,000 divisions
Capacities . . . . . . . . . . . . . . . . 10,000 divisions commercial
NTEP . . . . . . . . . . . . . . . . . . . . Certificate of Conformance Number 13-011
Division Value . . . . . . . . . . . . . 1, 2, or 5 x 1, 0.1, 0.01, 0.001
Sample Rate . . . . . . . . . . . . . . 1 to 100 samples per second selectable
Auto Zero Range . . . . . . . . . . . 0.5 or 1 through 9 divisions
Weighing Units . . . . . . . . . . . . . Pounds (lb), Pounds/Kilograms (lb/kg), Kilograms (kg) and
Keyboard . . . . . . . . . . . . . . . . . Membrane type with 19 keys
Enclosure Size . . . . . . . . . . . . . 9.8 inch W x 6.8 inch H x 1.8 inch D
Construction . . . . . . . . . . . . . . . Painted Steel
Battery Life:
LCD Viewing Range:

Standard Features:

 Metric Conversion
 Auto Shut-Off Feature
 Selectable Sleep-Mode
 StableSENSE
 14-Digit Alphanumeric Patient ID
 99 Stored Tare Weights
 200 Stored Transactions

Optional Features:

 MVIP, Ethernet Option Card
 MVWIFI, Wireless Option Card
 Detecto DHR (Digital Height Rod)
1 ®
StableSENSE is a digital filter utilizing proprietary software algorithms to remove or greatly
reduce changes in the weight display resulting from movement on the scale platform.
®
StableSENSE can be used with clinical scales to lessen the effects of the patient's
movement or vibration on the scale. Any application affected by vibration or movement on
the scale platform can benefit using StableSENSE
8555-M512-O1 Rev D 01/15

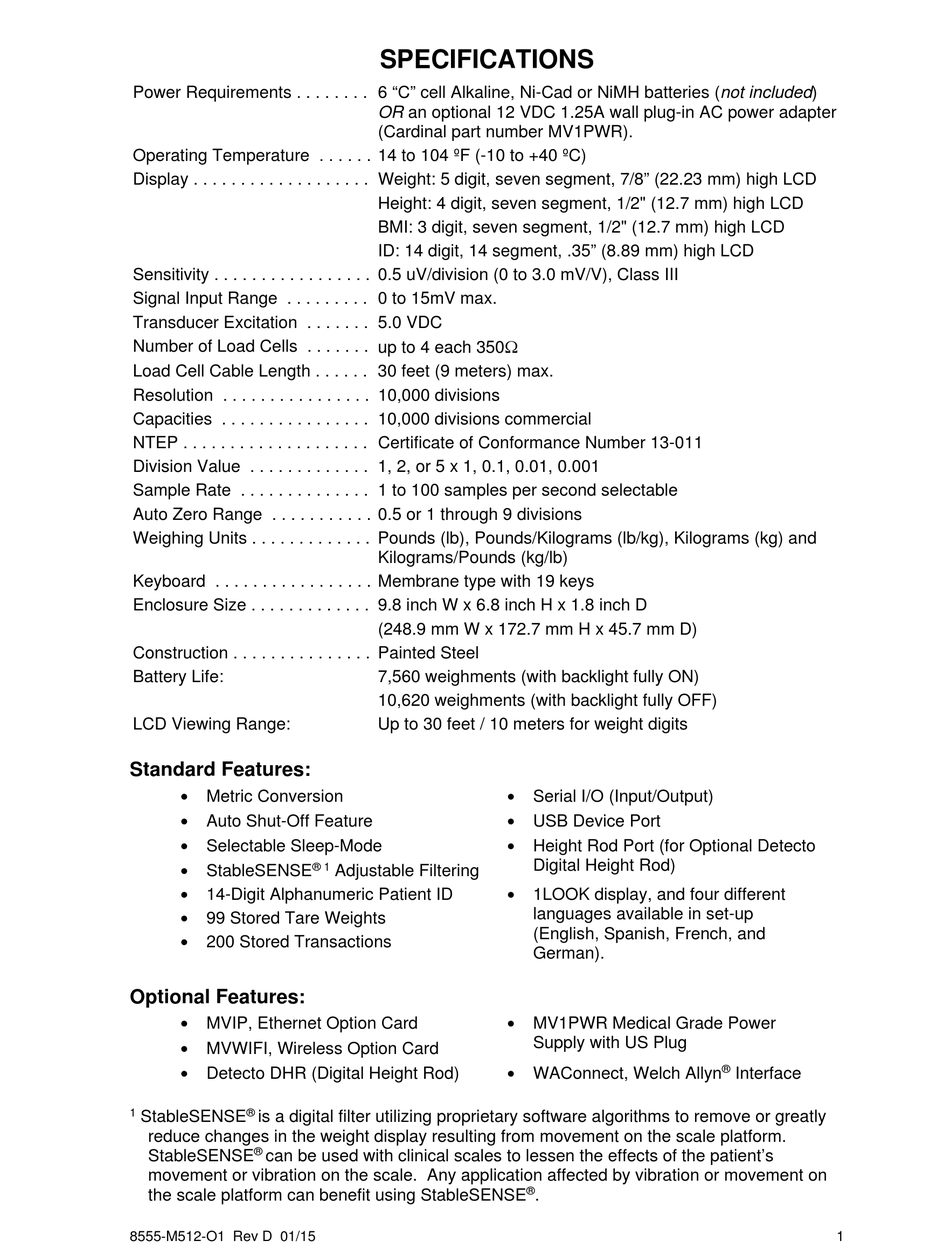

SPECIFICATIONS

OR an optional 12 VDC 1.25A wall plug-in AC power adapter
(Cardinal part number MV1PWR).
Height: 4 digit, seven segment, 1/2" (12.7 mm) high LCD
BMI: 3 digit, seven segment, 1/2" (12.7 mm) high LCD
ID: 14 digit, 14 segment, .35" (8.89 mm) high LCD
Kilograms/Pounds (kg/lb)
(248.9 mm W x 172.7 mm H x 45.7 mm D)
7,560 weighments (with backlight fully ON)
10,620 weighments (with backlight fully OFF)
Up to 30 feet / 10 meters for weight digits
® 1
Adjustable Filtering
 Serial I/O (Input/Output)
 USB Device Port
 Height Rod Port (for Optional Detecto
Digital Height Rod)
 1LOOK display, and four different
languages available in set-up
(English, Spanish, French, and
German).
 MV1PWR Medical Grade Power
Supply with US Plug
 WAConnect, Welch Allyn
®
.
®
Interface
1
