DoE— Kahuku HIS 7/2014

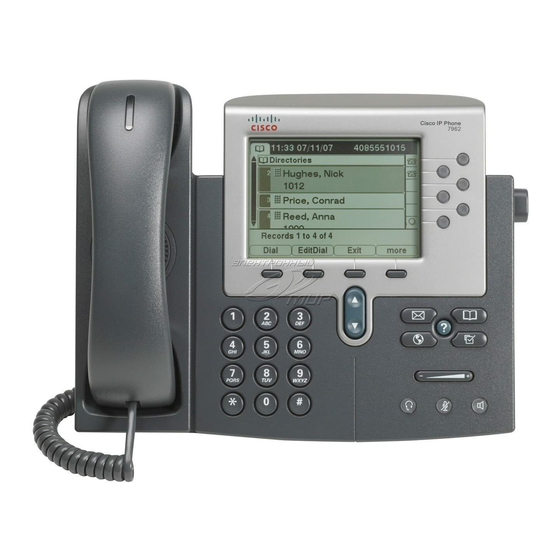

Cisco 7942* / 7962 IP Phone

Quick Reference

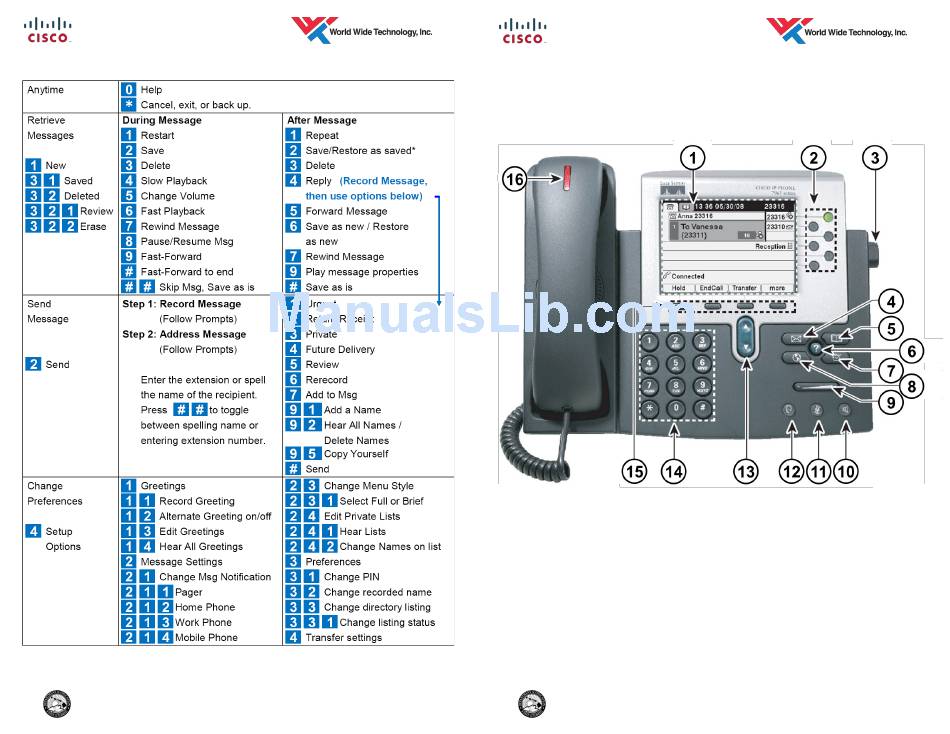

1. Phone Screen
2. Programmable Buttons
3. Footstand Button
4. Messages Button
5. Directory Button
6. Help Button
7. Settings Button
8. Services Button
9. Volume Control
10. Speaker Button
V 1.4
11. Mute Button
12. Headset Button
13. Navigation Button
14. Keypad
15. Softkey Buttons **
16. Handset Light Strip
* 7942 has 2 programmable buttons
** Softkey labels change with different
phone states.
1
DoE— Kahuku HIS 7/2014

Advertisement

loading

  Also See for Cisco 7942

  Related Manuals for Cisco 7942

  Summary of Contents for Cisco 7942

  • Page 1: Quick Reference

    Cisco 7942* / 7962 IP Phone Quick Reference V 1.4 1. Phone Screen 11. Mute Button 2. Programmable Buttons 12. Headset Button 3. Footstand Button 13. Navigation Button 4. Messages Button 14. Keypad 5. Directory Button 15. Softkey Buttons ** 6.
  • Page 2 VOICEMAIL VOICEMAIL ACCESS From Your Phone 1. DC adaptor port (optional) 1. Press the Messages button or dial 1608000. 2. AC-to-DC power supply 2. Follow prompts (optional) From Another Phone 3. AC power cord (optional) 1. Press the Messages button or dial 1608000. 2.
  • Page 3 ANSWERING AN ADDITIONAL CALL DISPLAY CONTRAST 1. While on a call you will hear a call waiting beep indicating a new incoming 1. Press the Settings button. call. 2. Press 1 on the dial pad, or scroll to User Preferences and select it. 2.
  • Page 4 CONFERENCE LIST BUSY LAMP FIELD (BLF) / SPEED DIAL 1. While on a Conference call, press the ConfList softkey. The conference 1. Get dial tone and press a BLF / Speed Dial button. Call is placed to the participants are displayed in your screen. speed dial destination.
