03

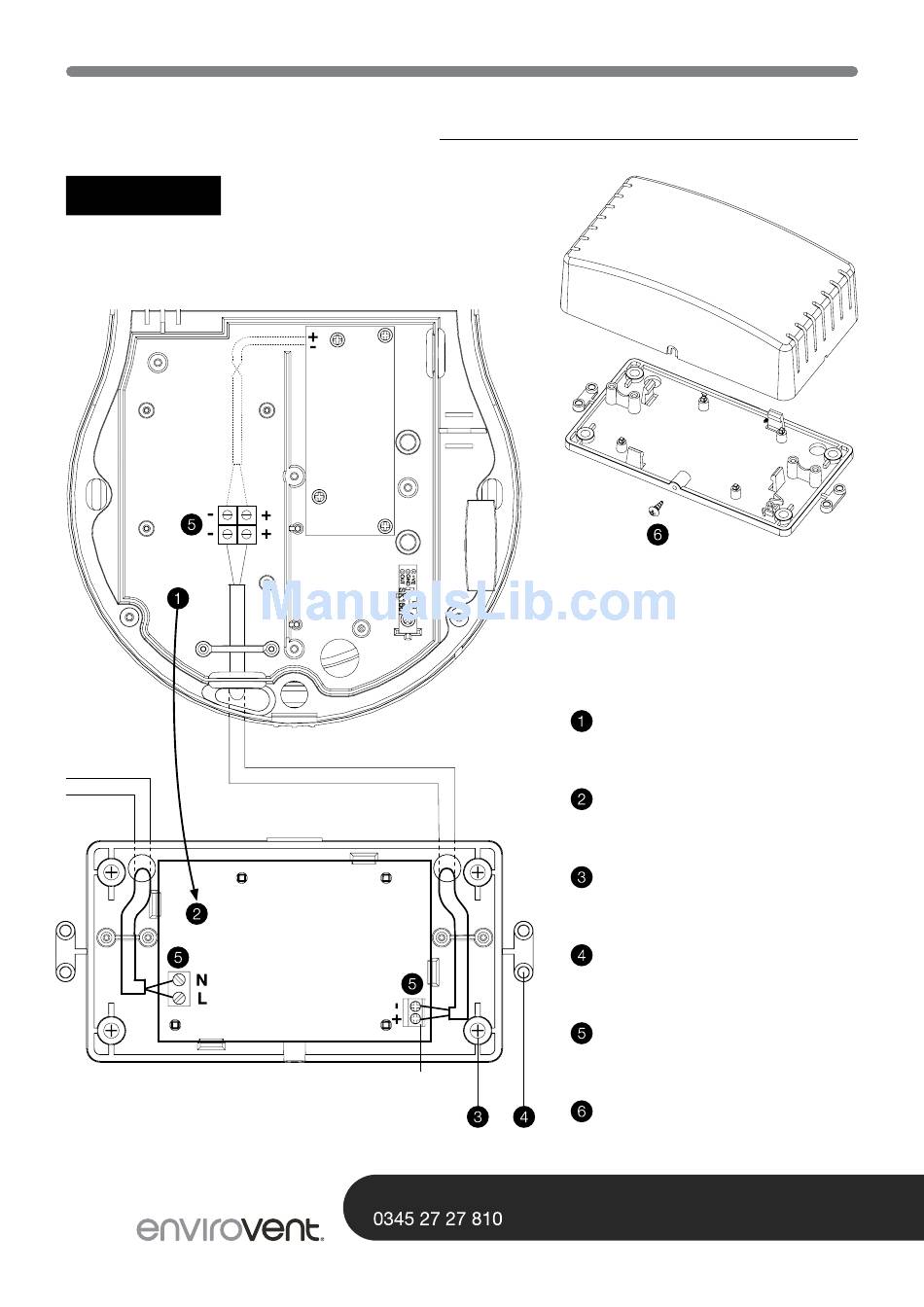

Wiring Diagrams - SELV
SELV (option 2).
Mains
Power Supply
6
Fan
Board
12v
SHOULD YOU ENCOUNTER ANY PROBLEMS INSTALLING THIS UNIT CALL
SELV box and lid
Remove power supply from
the unit
Place in SELV box
SELV Box must be secured
using the 4 fixing points
Use tags to restrain cable
Make electrical connections
as shown
Secure the lid with screw.
