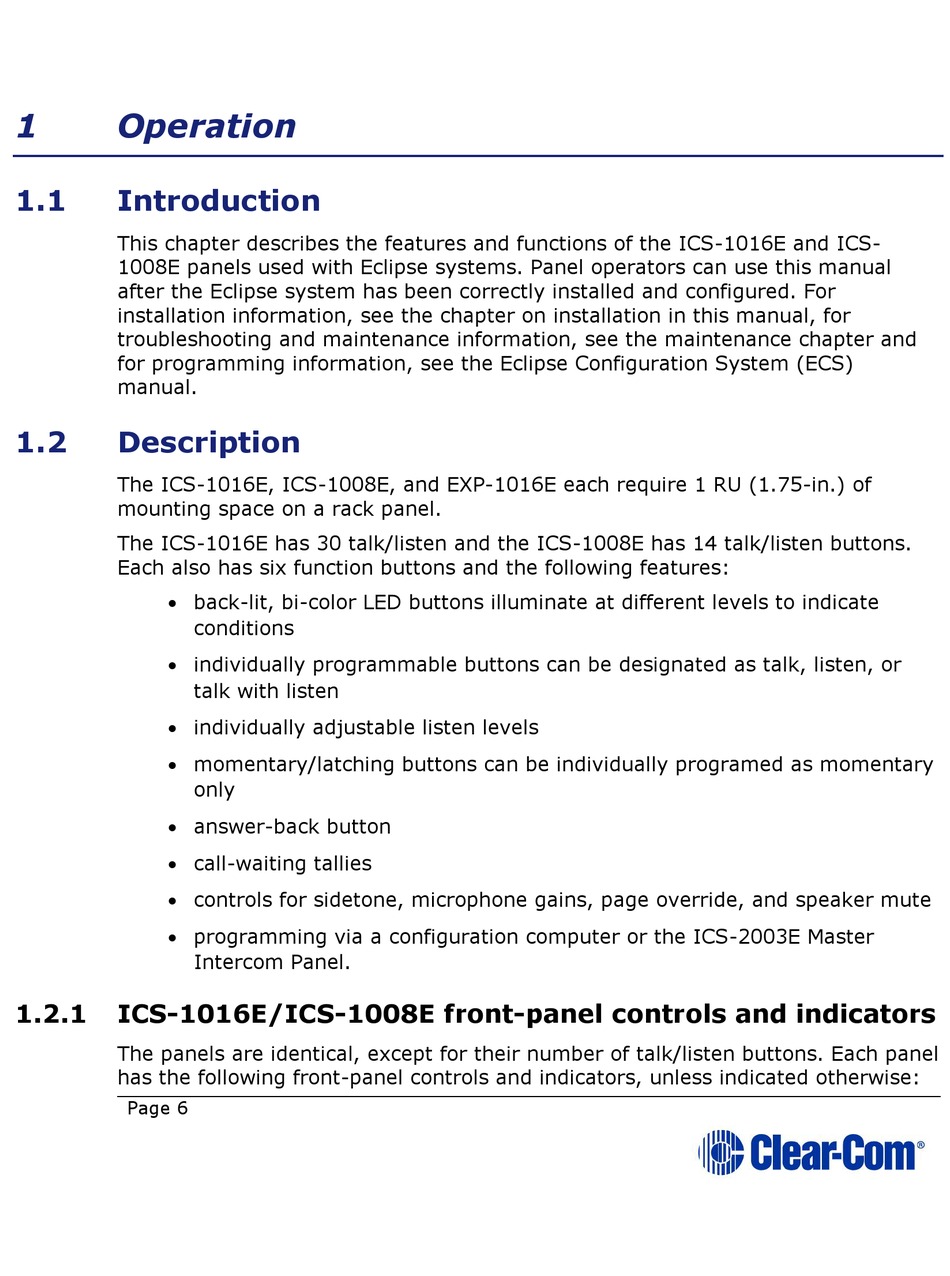

Operation

1.1

Introduction

This chapter describes the features and functions of the ICS-1016E and ICS-
1008E panels used with Eclipse systems. Panel operators can use this manual
after the Eclipse system has been correctly installed and configured. For
installation information, see the chapter on installation in this manual, for
troubleshooting and maintenance information, see the maintenance chapter and
for programming information, see the Eclipse Configuration System (ECS)
manual.
1.2

Description

The ICS-1016E, ICS-1008E, and EXP-1016E each require 1 RU (1.75-in.) of
mounting space on a rack panel.
The ICS-1016E has 30 talk/listen and the ICS-1008E has 14 talk/listen buttons.
Each also has six function buttons and the following features:
 back-lit, bi-color LED buttons illuminate at different levels to indicate
conditions
 individually programmable buttons can be designated as talk, listen, or
talk with listen
 individually adjustable listen levels
 momentary/latching buttons can be individually programed as momentary
only
 answer-back button
 call-waiting tallies
 controls for sidetone, microphone gains, page override, and speaker mute
 programming via a configuration computer or the ICS-2003E Master
Intercom Panel.
1.2.1 ICS-1016E/ICS-1008E front-panel controls and indicators
The panels are identical, except for their number of talk/listen buttons. Each panel
has the following front-panel controls and indicators, unless indicated otherwise:
Page 6
