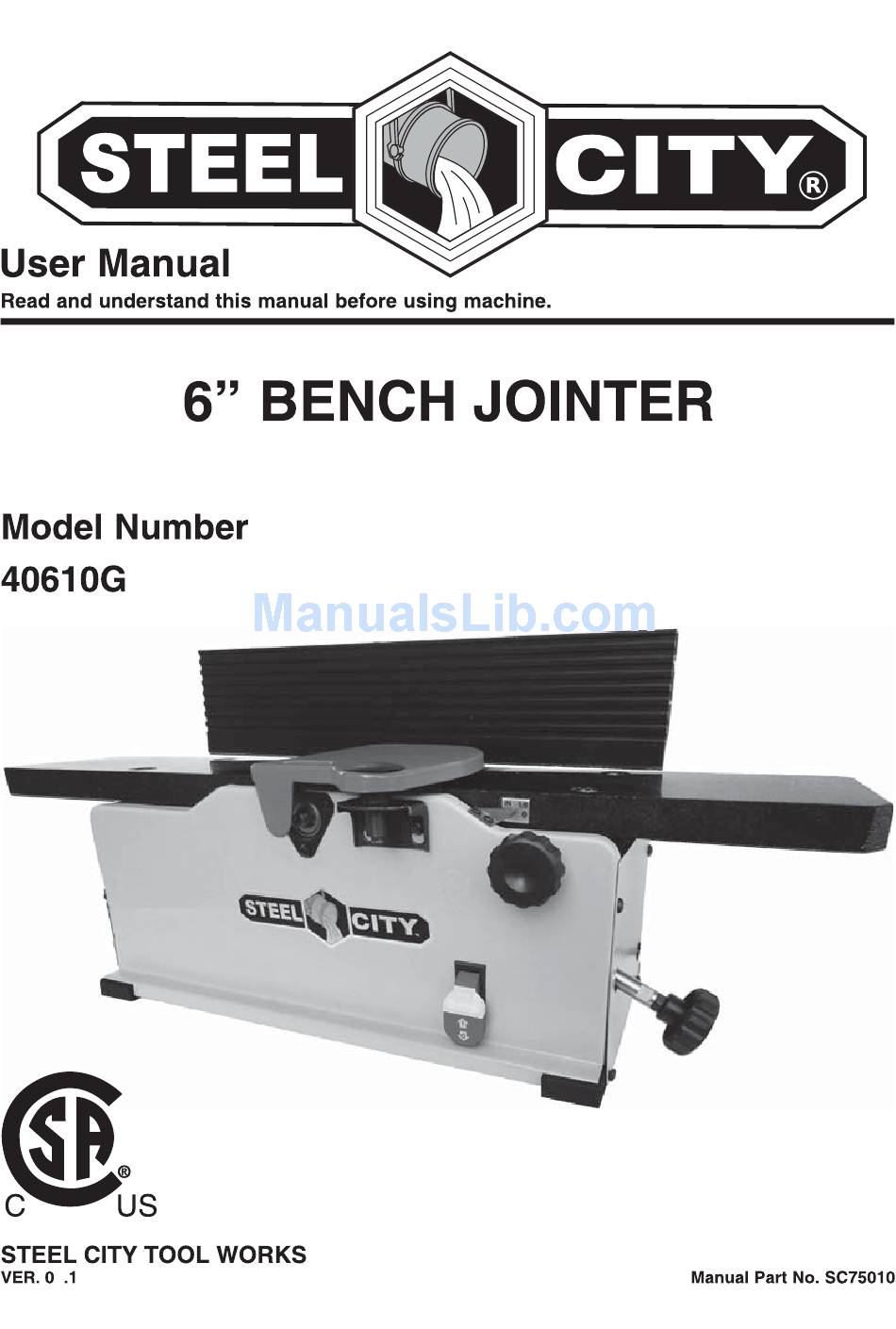

Steel City 40610GS User Manual
  1. Manuals
  2. Brands
  3. Steel City Manuals
  4. Power Tool
  5. 40610GS
  6. User manual

Steel City 40610GS User Manual

6 inch bench jointer
Hide thumbs

Advertisement

Quick Links

Download this manual
S
7
4

Advertisement

loading
Need help?

Need help?

Do you have a question about the 40610GS and is the answer not in the manual?

Questions and answers

Related Manuals for Steel City 40610GS

Summary of Contents for Steel City 40610GS

  • Page 4: Year Limited Warranty

    2 YEAR LIMITED WARRANTY Steel City Tool Works, LLC (SCTW) warrants this SCTW machinery to be free of defects in workmanship and materials for a period of 2 years from the date of the original retail purchase by the original owner for domestic use. Granite components are warranted for 2 years based on normal use and is void if non SCTW accessories are used that cause the break or chip.
  • Page 6 FOLD ON DOTTED LINE PLACE STAMP SteelCityToolWorks #4 Northpoint Court Bolingbrook, IL 60440 FOLD ON DOTTED LINE...
  • Page 7 Carbon Steel...
  • Page 16 SOC BUTTON HD SCREW 3mm T - Hex Wrench Fence Support Assy...
  • Page 17 Assemble the Fence Bracket Assy (A) to the Jointer Base (B). Use the four Soc Button Hd Screws (C) to lock the Fence Bracket Assy in Place. SEE FIG. 1 Please note, the Gap on fence should align with the cutter-head. SEE FIG.4 There are 2pcs Hex Nut (A) on fence bracket assy.
  • Page 20 Adjusing of 135 degree: 1. First, loosen the two locking knobs (A), SEE FIG.16 6. Loosen the M6 Hex Nut (A) by open wrench. SEE FIG.19-1. 7. Put a gauge block (C) on the table with one end against the fence, then adjust the set screw (D) by hex wrench till the fence is exactly 135 degrees to the table, and then lock the M6 Hex Nut (E) by open wrench.
  • Page 22 carbonsteel carbide cutting tip cutting tip. cutting tip cutting tip...

  • Page 23: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Motor and Machine Operation PROBLEM LIKELY CAUSE (S) SOLUTION 1. Low voltage. Motor will not start. 1. Check power line to proper voltage. 2. Open circuit in motor or loose connections. 2. Inspect all lead connections on motor for loose or open connections.
  • Page 26 HEX NUT M6 SC10974 HEX SOC SET SCR W/FLAT POINT M6X20 SC10955 FENCE BRACKET SC10956 FENCE BRACKET TRRM (RIGHT) SC10958 SC10948 SC10957 SC10968 SUPER CUT ASSY (w/HELIX CUTTER) 160S-1 CUTTER SC10975 160S-2 SC10976 160S-3 SC10977 ON/OFF SWITCH FOR 40610GS/CS SC10971 SC10949...
