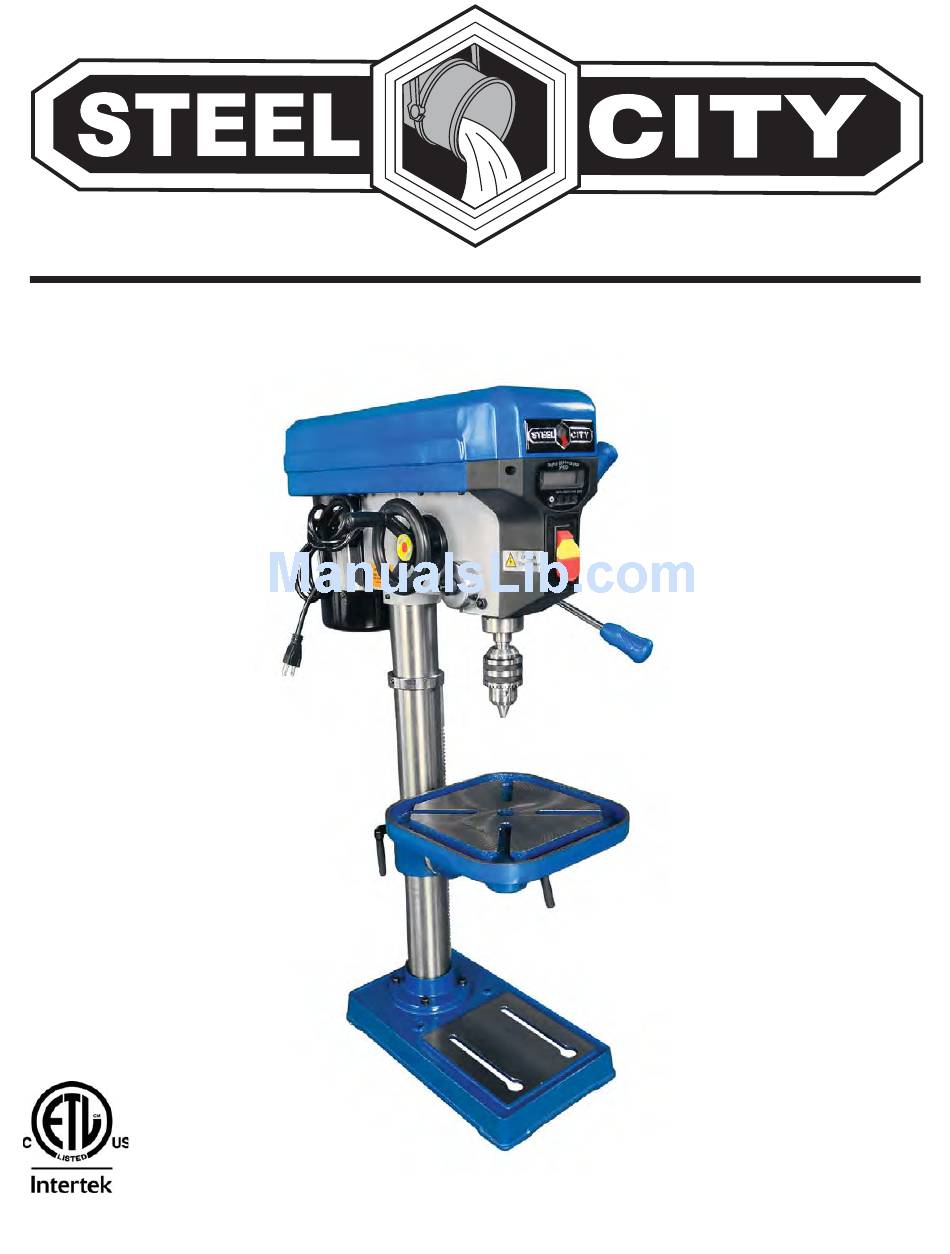

- Page 1 ® User Manual Read and understand this manual before using machine. 13” VS DRILL PRESS Model Number 20130VS STEEL CITY TOOL WORKS VER. 10.13...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Product Specifications ....................................3 Safety ......................................... 4 Accessories and Attachments ..................................5 Carton Contents ......................................6 Assembly ........................................7 Adjustment ......................................... 8 Operations ......................................... 9 Maintenance ......................................Troubleshooting Guide ..................................... -
Page 4: Product Specifications
PRODUCT SPECIFICATIONS (Please choose proper power source, voltage and frequency that are shown in the label for your drill press.) MODEL 20130VS MOTOR 3/4 HP CHUCK 5/8” JT3 SPINDLE TRAVEL 3.25”... -
Page 5: Safety
GENERAL SAFETY RULES WARNING: Failure to follow these rules may result in serious personal injury. For your own safety, read the instruction manual Use the proper extension cord. Make sure your before operating the machine. Learning the machine’s extension cord is in good condition. When using an application, limitations, and specific hazards will greatly extension cord, be sure to use one heavy enough to carry minimize the possibility of accidents and injury. -
Page 6: Accessories And Attachments
ELECTRICAL REQUIREMENTS POWER SUPPLY AND MOTOR SPECIFICATIONS WARNING: To avoid electrical hazards, fire hazards, or damage to the tool, use proper circuit protection. Use a separate electrical circuit for your tools. To avoid shock or fire, if power cord is worn or cut or damaged in any way, have it replaced immediately. -
Page 7: Carton Contents
CARTON CONTENTS UNPACKING AND CHECKING CONTENTS Carefully unpack the drill press and all its parts. Compare against the illustration drawing below. WARNING: To avoid injury from unexpected start, DO NOT plug the power cord into a power source receptacle during unpacking and assembly. -
Page 8: Assembly
ASSEMBLY 1. Install column to base. 2. Install table assembly. 3. Install table adjustment handle. 4. Install head assembly. 5. Install feed handles. 6. Install the handwheel, tighten the set screw. Carefully lift the head above the column and slide it onto the column. -
Page 9: Adjustment
ADJUSTMENT TABLE ADJUSTMENT A. Tilting adjustment: Loosen the lock bolt, then swing the table to appropriate position and re-tighten the lock bolt. B. Swing 360°: Loosen the table bracket’s locking handle, then swing the table to the appropriate position and re-tighten the locking handle. -
Page 10: Operations
OPERATIONS INSTALLING A DRILL BIT 1. With the switch “OFF”, open the chuck jaws (1) using the chuck key (2). Turn the chuck key counterclockwise to open the chuck jaws (1). 2. Insert the drill bit (3) into the chuck far enough to obtain maximum gripping by the jaws, but not far enough to touch the spiral grooves (flutes) of the drill bit when the jaws are tightened. -
Page 11: Maintenance
RECOMMENDED OPERATING SPEEDS (RPMS) Material ACCESSORY SOFTWOOD HARDWOOD ACRYLIC BRASS ALUMINUM STEEL TWIST DRILL BITS 1/16-3/16 (1.5 - 5mm) 3000 3000 2500 3000 3000 3000 1/4-3/8 (6-10mm) 3000 1500 2000 1200 2500 1000 7/16-5/8 (11-16mm) 1500 1500 1500 11/16-1 (17-27mm) 1000 BRAD- POINT BITS 1800... -
Page 12: Troubleshooting Guide
TROUBLESHOOTING CHART Symptom Possible Cause(s) Corrective Action Noisy operation. 1. Incorrect belt tension. 1. Adjust tension. 2. Dry spindle. 2. Lubricate spindle. 3. Loose spindle. 3. Tighten pulley nut. 4. Loose motor pulley. 4. Tighten set screw in pulley. Bit burns or smokes. 1. - Page 13 DATE MAINTENANCE PERFORMED REPLACEMENT COMPONENTS REQUIRED...
- Page 14 DATE MAINTENANCE PERFORMED REPLACEMENT COMPONENTS REQUIRED...
- Page 15 ® STEEL CITY TOOL WORKS www.steelcitytoolworks.com 1-877-SC4-TOOL (1-877-724-8665)
