Tormax 1102 Instructions For Use Manual

Automatic swing doors with drive
Hide thumbs Also See for 1102:
Table of Contents

Advertisement

Quick Links

See also: Installation and Servicing Manual

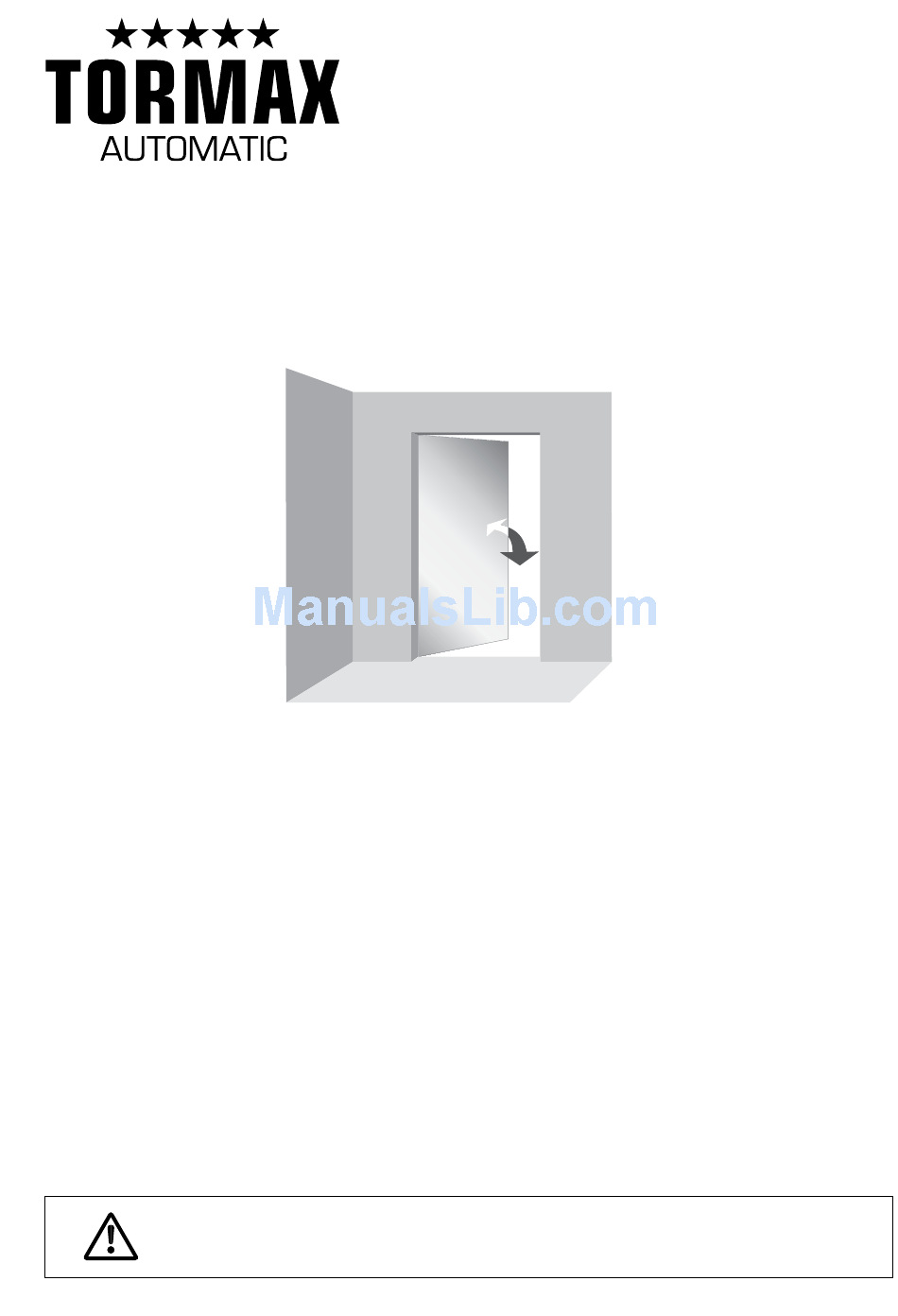

T-1661 e 31.8.15
Translation of the original
instructions for use
Instructions for Use
For Automatic Swing Doors with Drive
TORMAX 1102 Swing Door Drive
TORMAX 1201 Swing Door Drive
Please follow the safety instructions in chapter 2!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1102 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tormax 1102

Summary of Contents for Tormax 1102

  • Page 1 T-1661 e 31.8.15 Translation of the original instructions for use Instructions for Use For Automatic Swing Doors with Drive TORMAX 1102 Swing Door Drive TORMAX 1201 Swing Door Drive Please follow the safety instructions in chapter 2!

  • Page 2: Table Of Contents

    First edition: 12.14, update 8.15 We reserve the right to make technical changes. Printed on environmentally friendly paper bleached without the use of chlorine. Landert Motoren AG and Landert GmbH are certified to ISO 9001. Instructions for Use TORMAX 1102, 1201 T-1661 e...

  • Page 3: General Information

    Product name, door drive: TORMAX 1102 Swing Door Drive TORMAX 1201 Swing Door Drive Serial number: ……………………………………… The identification plate with the serial number is placed on the drive itself under the casing. Instructions for Use TORMAX 1102, 1201 T-1661 e...

  • Page 4: Explanation Of The Symbols

    24 V DC 1,5 A Protective class, drive IP20 Ambient temperature –20 °C to +50 °C Fuse 5 AT Drive weight TORMAX 1102 11,2 kg TORMAX 1201 11,8 kg Noise emission level < 70 db (A) Instructions for Use TORMAX 1102, 1201 T-1661 e...

  • Page 5: Safety

    Hazards and Risks Depending on the system design and equipment, there is a residual risk of crushing, shearing and colli- sion with limited force in the move- ment area of the door leaf. T1661_3 Instructions for Use TORMAX 1102, 1201 T-1661 e...

  • Page 6: Checks

    • Open the door manually and secure in the open position if it is installed in an escape route. • Fire doors must never be secured in the open position even in emergencies. See section 7 for rectification of faults. Instructions for Use TORMAX 1102, 1201 T-1661 e...

  • Page 7: Disposal

    • Before opening the casing, release the tension on the spring up to the stop. Warning Broken glass Risk of injury when dismantling the door leaves. • Take care when transporting the door leaves. Instructions for Use TORMAX 1102, 1201 T-1661 e...

  • Page 8: Product Description

    8c 9 1a,b 4a 4b 4c 10b,c 5b 8b outside inside T1661_1e Double-leaved Systems 8c 9 1a,b 2a 1a,b 4a 4b 4c 4e 10b,c 5b 8b inside T1661_7e Primary drive Secondary drive Instructions for Use TORMAX 1102, 1201 T-1661 e...
  • Page 9 £ Fire alarm system Output message £ Bell / gong £ Door status Lock u a) £ Electrical door opener b) £ Door handle c) £ Mechanical door lock £ Depending on the system’s equipment Instructions for Use TORMAX 1102, 1201 T-1661 e...

  • Page 10: System Function

    Depending on the configuration, “Power Assist” can be activated in advance for a limited period using a button, door trap sensor or a motion detector. In this case the door can be easily opened with very little effort. Instructions for Use TORMAX 1102, 1201 T-1661 e...
  • Page 11 – Continued operation for a certain period in the current operating mode by means of a battery unit u. – Unlocking and opening of the door from outside by means of a key switch and the battery unit u. Instructions for Use TORMAX 1102, 1201 T-1661 e...

  • Page 12: Operating Modes

    Operating Modes The automatic door system can be operated with the TORMAX user interface u (5 operating modes and status display) or with an operating mode switch u (3 operating modes). Operating Mode OFF The internal and external sensors are disregarded. The door is mechanically held in the closed position and locked using an electric lock u.
  • Page 13 If an opening command is given via the internal or external sensors or by Push & Go, only the primary leaf. If an opening command is given by the “passage for beds” button or the key switch, both doors are opened. Instructions for Use TORMAX 1102, 1201 T-1661 e...

  • Page 14: Operation

    Access will be automatically blocked again for 60 s after the button has been pressed for the last time. Selection of Operating Modes • Press selector keys 1 or 2 briefly. The corresponding operating mode symbol is illuminated. Instructions for Use TORMAX 1102, 1201 T-1661 e...

  • Page 15: Setting Customer Parameters With The Tormax User Interface

    Confirm with key 2 T1661_11e • Similarly, select and confirm the second and the third characters of the code. If “C” appears, access is blocked. Parameters cannot be re-set in this case. Instructions for Use TORMAX 1102, 1201 T-1661 e...
  • Page 16 Parameters for displays Drive type (1 = 1102, 2 = 1201) Firmware version Number of cycles Number of operating hours Parameters for settings 10 0…E Hold open time for activator inside / outside 11 0…E Hold-open time button e.g. for beds 0 / 1/ 2 / 3 /4 / 5 / 6 / 8 /10 /12.5 /15 /17.5 /20/40/ 60 s...

  • Page 17: Operation On Power Failure

    If this does not reset the fault or if it re-occurs after a short time, you must arrange for the fault to be rectified by a skilled person from your TORMAX dealer. In this case note the fault number and inform the dealer.

  • Page 18: Maintenance

    Only genuine TORMAX spare part should be used. The manufacturer accepts no liability if you fail to observe this requirement. Original spare parts and original accessories guarantee the safety of use in accordance with norm EN 16005.

  • Page 19: Appendix

    Activator inside is active > 1 min. Get sensor adjusted by a skilled Activator outside is active > 1 min. person. Key switch is active > 1 min. Reset the key switch. Instructions for Use TORMAX 1102, 1201 T-1661 e...
  • Page 20 The door stands still. Control system shut down for Perform a software-reset. E0.. safety reasons. Arrange for the system to be re- E2.. paired by a specialist. Instructions for Use TORMAX 1102, 1201 T-1661 e...

  • Page 21: Check-List For Functional Checks

    This leaf then remains open and ary door leaf to close. motionless at about 25 degrees of the door opening until the second- Secondary leaf ary door leaf which is closing is practically closed. Instructions for Use TORMAX 1102, 1201 T-1661 e...
  • Page 22 • If the mains power cable is not secured against entrapping in mov- properly secured, get it se- ing parts of the drive, door or sys- cured by a skilled person. tem. Instructions for Use TORMAX 1102, 1201 T-1661 e...

  • Page 23: Declaration Of Conformity

    - 2006/95/EG (low tension) - 2004/108/EG (electro-magnetic-compatibility) and the following harmonised standards have been adhered to: - EN 16005 Base document: Declaration of incorporation by TORMAX | Landert Motoren AG Person responsible for documents Name/address: Place, date: Signatory...
  • Page 24 TORMAX Revolving Door Drives Manufacturer: Advice, sales, installation, repairs and service: TORMAX | CH-8180 Bülach-Zürich Phone +41 (0)44 863 51 11 +41 (0)44 861 14 74 Homepage www.tormax.com E-Mail info@tormax.com TORMAX is a Division and a registered trademark of Landert Motoren AG...
