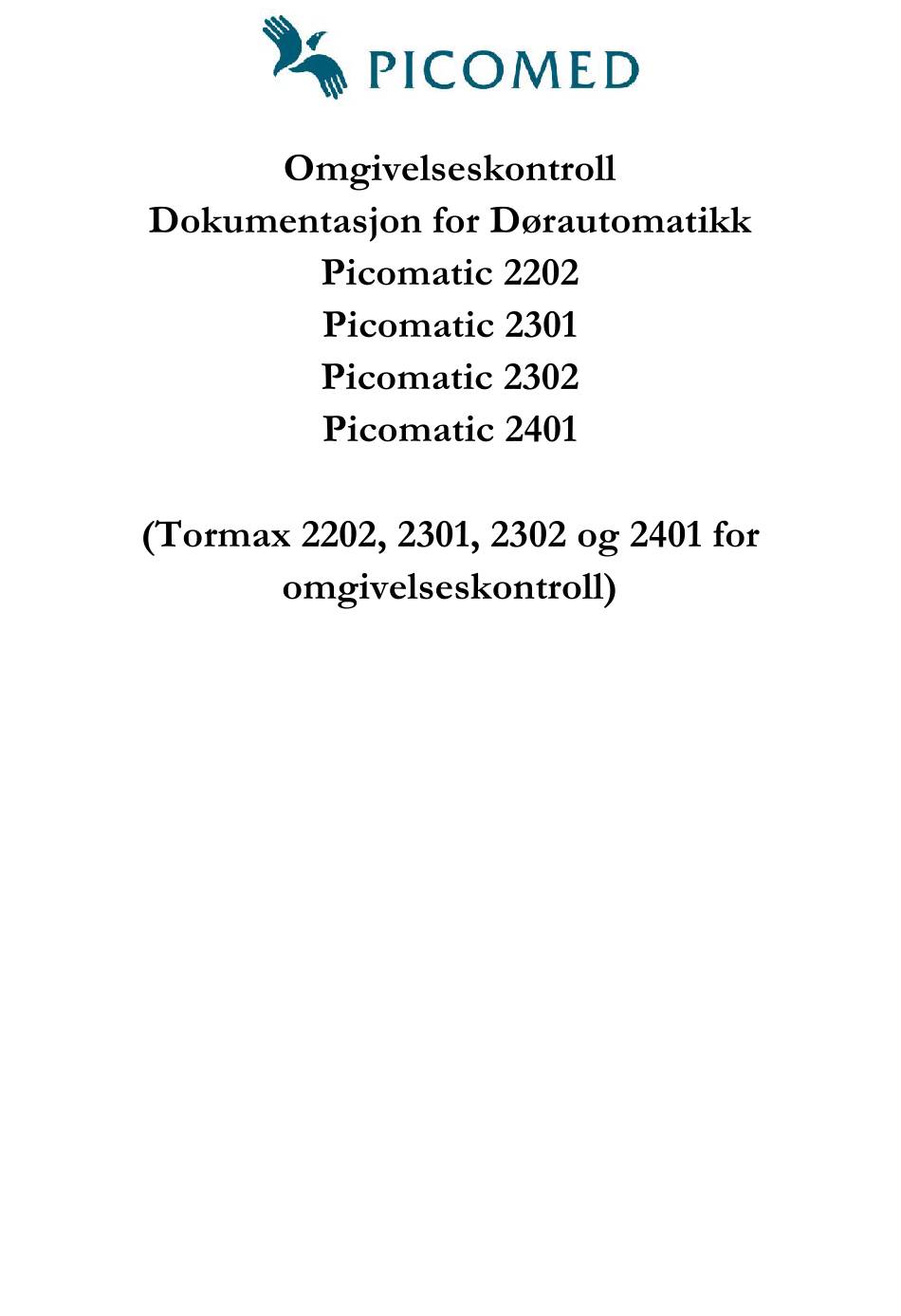

- Page 1 Brokelandsheia, 4993 Sundebru, Tlf + 47 37119950 Fax + 47 37119951 E-mail: post@picomed.no Foretaksnummer 962 211 631 MVA...
- Page 2 T-1321 e 6.12.13 Translation of the original instructions for use Instructions for Use For Automatic Sliding Doors with Drive iMotion 2202 Sliding Door Drive ® iMotion 2202.A Sliding Door Drive ® iMotion 2301 / 2301.IP65 Sliding Door Drive ® iMotion 2302 Sliding Door Drive ®...
-
Page 3: Table Of Contents
Disposal Product Description System Overview System Function Operating Modes Operation Commissioning Operation with the TORMAX User Interface Operation with an Operating Mode Switch Operation on Power Failure Procedure in the Event of a Fault Maintenance Cleaning Functional Checks Maintenance and Testing... -
Page 4: General Information
1 General Information 1.1 Target Groups • Operator of the automatic door. The operator is the person responsible for the operation and main- tenance of the system. • Persons instructed by the operator to carry out certain duties, for example the servicing and main- tenance of the automatic sliding door. -
Page 5: Explanation Of The Symbols
1.4 Explanation of the Symbols Warning (signal word) Source of hazard (designates a possibly hazardous situation) Possible consequences of non-observance • Measures for averting danger. Text which is highlighted in grey MUST be observed to ensure that the system operates perfectly. Failure to observe these sections can cause damage to equipment. -
Page 6: Safety
2 Safety 2.1 Responsibilities For instructing the operator: A specialist from a TORMAX sales partner For operating the system: The operator or a person instructed by the operator For maintenance and function control: The operator or a person instructed by the operator... -
Page 7: Checks
Warning Danger through moving parts: – in the area of all closing edges – in the gap for suspending the door in the cladding – when objects such as, for example, display shelves are erected in the direct proximity of the moving part of the door leaf. -
Page 8: Disposal
2.7 Disposal This system must be properly dismantled at the end of its working life. Its disposal must comply with national regulations. We recommend that you contact a specialist disposal company. Warning Aggressive acids Risk of injury if you dismantle the battery module. •... -
Page 9: Product Description

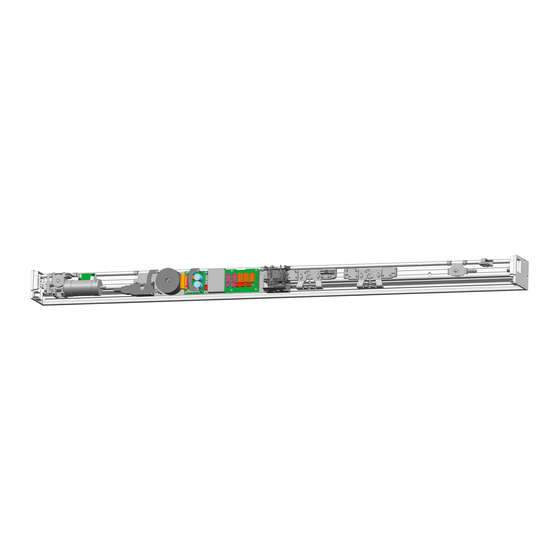

3 Product Description 3.1 System Overview 5a, 7a 2a 4d inside outside T1321_4e Drive Cladding Motor unit MCU32 control system with monitoring system, power limitation and perma- nent diagnosis Guide system with noise-absorbent guide rail Drive accessories u £ Lock with a) £... -
Page 10: System Function
3.2 System Function It is the responsibility of the system operator to ensure that the automatic sliding door can be freely used at all times and particularly that access to the sliding door is not blocked. T1321_12 Automatic Door Operation with Sensors When operating automatically (AUTOMATIC operating mode) the door is automatically opened from both sides by sensors when a person approaches. -
Page 11: Operating Modes
3.3 Operating Modes By using the TORMAX user interface u it is possible to operate the automatic door system in 6 operat- ing modes and with status displays or to use a simple operating mode switch u to operate the door in 3 operating modes. -
Page 12: Operation
The first movement after switching the power on for the first time is slow and H61/ H62 is dis- played. The control system is checking the door leaf’s travel distance and defining the end position. The door is now ready for operation. 4.2 Operation with the TORMAX User Interface TORMAX User Interface Lock u for User Interface... -
Page 13: Operation With An Operating Mode Switch
2301, 2302, 2401 iMotion 2202 • Switch the operating mode switch to operating mode OFF . If a TORMAX user interface is used, operating mode OFF is automatically set when power is reconnected as the lock is engaged. Manual Unlocking u •... -
Page 14: Procedure In The Event Of A Fault
If this does not reset the fault or if it re-occurs after a short time, you must arrange for the fault to be rectified by a specialist from your TORMAX dealer. In this case note the fault number and inform the dealer. -
Page 15: Maintenance
Only genuine TORMAX spare part should be used. The manufacturer accepts no liability if you fail to observe this requirement. Original spare parts and original accessories guarantee the safety of use in accordance with norm EN 16005. -
Page 16: Appendix
7 Appendix 7.1 Fault Table System Behaviour Cause Remedy/ Rectification The door stops when Electronic obstacle recognition on Remove the obstruction. Clean the opening. opening by a person, wind pressure, floor guide in operating mode P . ventilation or dirt in the floor guide. Door reverses when Electronic obstacle recognition on Remove the obstruction. - Page 17 System Behaviour Cause Remedy/ Rectification The door opens slowly. The safety facility in the opening di- Remove objects from within the rection is permanently active (>1 range of the sensor(s). Otherwise minute) or defective. have the system repaired by an expert.
-
Page 18: Check-List For Functional Checks
7.2 Check-list for Functional Checks Item To Be Checked Procedure Result Sensors • Walk through the door direct- The door opens at the right time ly from the front and from dif- and with sufficient speed so that ferent directions at normal passage through the door Is not speed, starting both from the hindered. -
Page 19: Declaration Of Conformity
- 2006/95/EG (low tension) - 2004/108/EG (electro-magnetic-compatibility) and the following harmonised standards have been adhered to: - EN 16005 Base document: Declaration of incorporation by TORMAX | Landert Motoren AG Person responsible for documents Name/address: Place, date: Signatory... - Page 21 TORMAX Revolving Door Drives Manufacturer: Advice, sales, installation Repairs and service: TORMAX | CH-8180 Bülach-Zürich Phone +41 (0)44 863 51 11 +41 (0)44 861 14 74 Homepage www.tormax.com E-Mail info@tormax.com TORMAX is a Division and a registered trademark of Landert Motoren AG...
