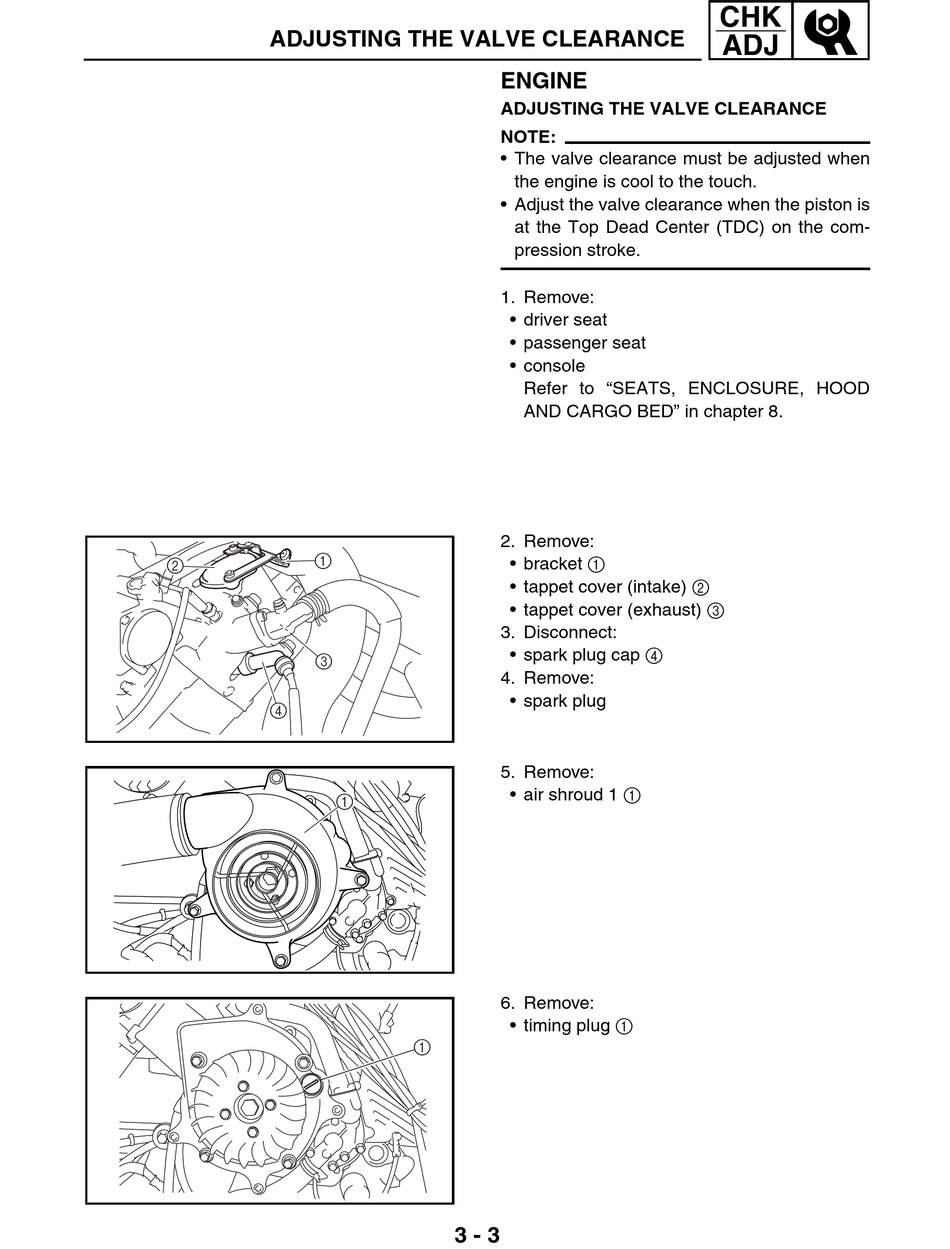

ADJUSTING THE VALVE CLEARANCE

1
2
3
4
1

ENGINE

ADJUSTING THE VALVE CLEARANCE
NOTE:
• The valve clearance must be adjusted when
the engine is cool to the touch.
• Adjust the valve clearance when the piston is
at the Top Dead Center (TDC) on the com-
pression stroke.
1. Remove:
• driver seat
• passenger seat
• console
Refer to "SEATS, ENCLOSURE, HOOD
AND CARGO BED" in chapter 8.
2. Remove:
• bracket 1
• tappet cover (intake) 2
• tappet cover (exhaust) 3
3. Disconnect:
• spark plug cap 4
4. Remove:
• spark plug
5. Remove:
• air shroud 1 1
6. Remove:
• timing plug 1
1
3 - 3
CHK
ADJ
