Summary of Contents for SHOWTEC 42512

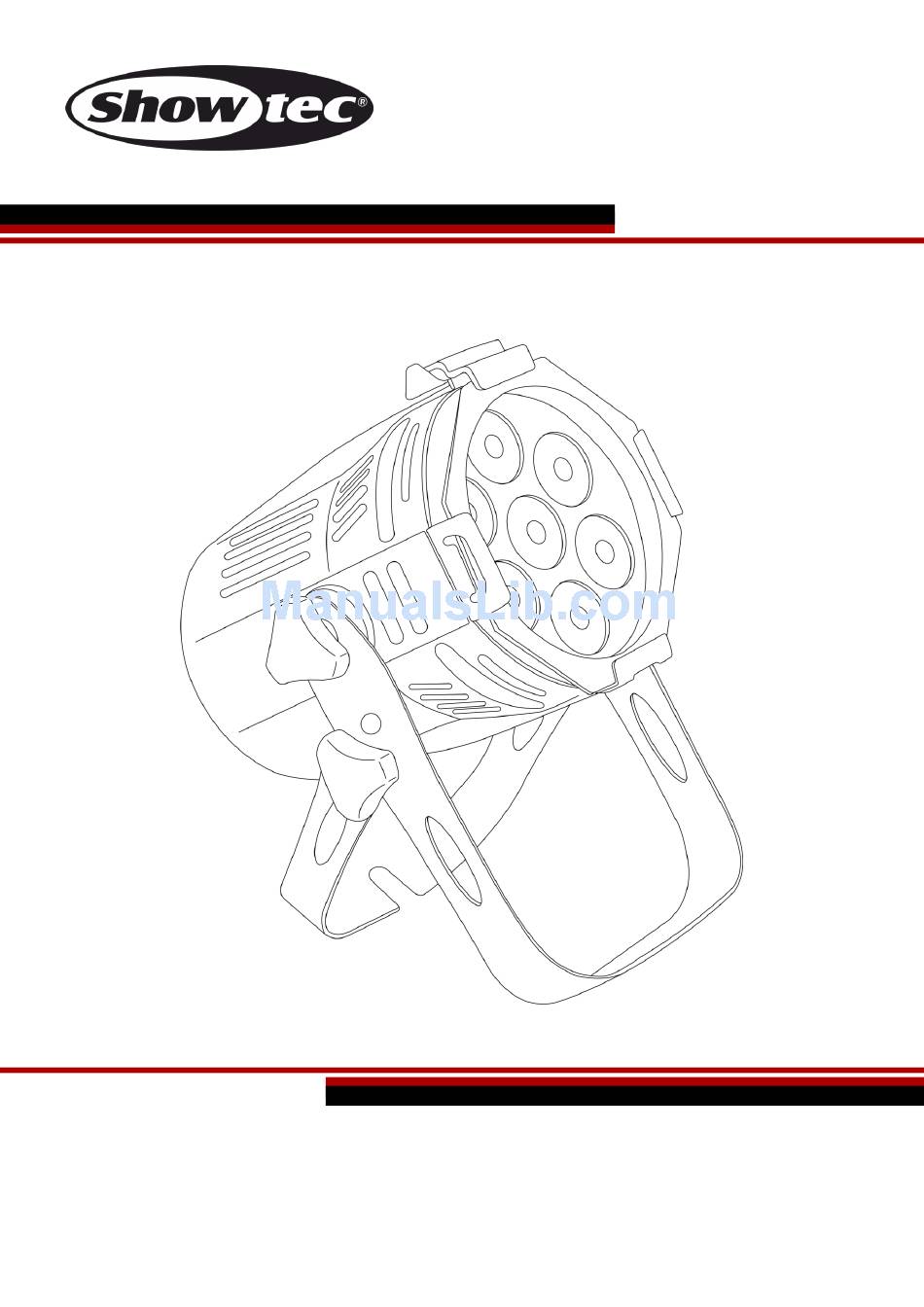

- Page 1 MANUAL ENGLISH Medium Studiobeam RGBW 3° Tour Ordercode: 42512 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
6. Program speed settings / Sound-controlled ....................16 7. Manual Mode ..............................17 DMX Channels ................................17 4 channels .................................17 8 channels .................................17 Lux Chart ...................................18 Maintenance ..................................19 Troubleshooting ................................19 No Light ..................................19 No Response to DMX..............................20 Product Specifications ..............................21 Dimensions ..................................22 Ordercode: 42512... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Showtec Medium Studiobeam RGBW 3° Tour 1 x color frame ... - Page 4 • If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
The installation must always be secured with a safety attachment, e.g. an appropriate safety net or safety cable. • When rigging, derigging or servicing the projector, always make sure, that the area below the installation site is secured and that there are not any unauthorized people around. Ordercode: 42512... -
Page 6: Connection With The Mains
UK Cable US Cable BROWN YELLOW/COPPER PHASE BLUE BLACK SILVER NEUTRAL YELLOW/GREEN GREEN GREEN PROTECTIVE GROUND Make sure that the device is always properly connected to the earth! Improper installation can cause serious injuries and/or damage of property! Ordercode: 42512... -
Page 7: Return Procedure
After this period complaints will not be handled anymore. Complaints will only then be considered if the client has so far complied with all parts of the agreement, regardless of the agreement from which the obligation is resulting. Ordercode: 42512... -
Page 8: Description Of The Device
Dimensions: 240 x 182 x 230 mm (LxWxH) Weight: 1,8 kg Frontside Fig. 01 01) Adjustment screw 02) Mounting bracket with inclination screw 03) 3-pin DMX signal connector OUT 04) 3-pin DMX signal connector IN 05) 2x Red, 2x Green, 2x Blue 1W LEDS Ordercode: 42512... -
Page 9: Backside
Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. Connect the device to the main power supply. Ordercode: 42512... -
Page 10: Color Frame Retaining Clip
Make sure that all color frame accessories are locked in position with the retaining clip before hanging the Studiobeam. 01) Press the retaining clip down, in order to unlock the color frame slot. 02) Insert the color frame(s). 03) Lock the retaining clip by releasing the retaining clip. Fig. 03 Ordercode: 42512... -
Page 11: Control Modes
Auto Mode, Manual Mode or Sound-controlled Mode). This means that you can set your desired operation mode on the master device and all slave devices will react the same as the master device. Multiple Studiobeams (Master/Slave control) Fig. 04 Each Slave device must be set to Ordercode: 42512... -
Page 12: Multiple Studiobeams (Dmx Control)
Do not supply power before the whole system is set up and connected properly. Multiple Studiobeams DMX Set Up Fig. 05 Note : Link all cables before connecting electric power Ordercode: 42512... -
Page 13: Fixture Linking
Neutrik®. Ordercode FL7275 (0,75 m), FL72150 (1,5 m), FL723 (3 m), FL726 (6 m), FL7210 (10 m). • DAP Audio 110 Ohm cable with digital signal transmission. Ordercode FL0975 (0,75 m), FL09150 (1,5 m), FL093 (3 m), FL096 (6 m), FL0910 (10 m), FL0915 (15 m), FL0920 (20 m). Ordercode: 42512... -
Page 14: Control Panel
The controller is switched off or defective, the cable or connector is detective, or the signal wires are swapped in the input connector. Note: It is necessary to insert an XLR termination plug (with 120 Ohm) in the last fixture in order to ensure proper transmission on the DMX data link. Ordercode: 42512... -
Page 15: Menu Overview
Medium Studiobeam RGBW 3° Tour Menu Overview Ordercode: 42512... -
Page 16: Main Menu Options
4. Static Color Presets With this menu, you can set the desired color preset. 01) Press the MODE button until the display shows = blackout 03) Press the UP/DOWN buttons to toggle between the 64 static color presets. Ordercode: 42512... -
Page 17: Built-In Programs
02) Press the UP/DOWN buttons to set the program speed. The adjustment range is between 01-16, from slow to fast. 03) Press the MODE button until the display shows 04) The device is now operating in the Sound-controlled mode and will react to the beat of the background music. Ordercode: 42512... -
Page 18: Manual Mode
Channel 3 – Blue Dimmer must be open 0-255 Gradual adjustment Blue, from 0-100% Channel 4 – White Dimmer must be open 0-255 Gradual adjustment White, from 0-100% Channel 5 – Color Macros Not functional 1-255 Macro Mode (64 static colors) Ordercode: 42512... -
Page 19: Lux Chart
Channel 8 – Dimmer intensity 0-255 Gradual adjustment, from dark to brightest 0-100% Lux Chart Distance 11800 3945 1799 Red (Lux) 22020 6362 2807 1006 Green (Lux) 3772 1030 Blue (Lux) 12870 3218 1446 Total (Lux) 50310 14430 6460 2314 Ordercode: 42512... -
Page 20: Maintenance
Suspect two potential problem areas as: the power supply and the LEDs. 01) Power supply. Check that the unit is plugged into an appropriate power supply. 02) The LEDs. Return the Studiobeam to your Showtec dealer. 03) If both of the above appear to be O.K., plug the unit in again. -
Page 21: No Response To Dmx
Check if power is switched on and One or more cables are plugged in fixtures do not function at all Internal fuse blown • Return the fixture to your Showtec dealer. Fixtures reset The controller is not connected. • Connect controller. correctly, but all 3-pin XLR Out of the controller •... -
Page 22: Product Specifications
Medium Studiobeam RGBW 3° Tour Product Specifications Model: Showtec Medium Studiobeam RGBW 3° Tour Input Voltage: 100-240 VAC, 60/50Hz Power consumption: 25W (full output) DMX linking: 30pcs Dimensions: 240 x 182 x 230 mm (LxWxH) Weight: 1,8 kg Operating and Programming:... -
Page 23: Dimensions
Medium Studiobeam RGBW 3° Tour Dimensions Ordercode: 42512... - Page 24 ©2015 Showtec...
