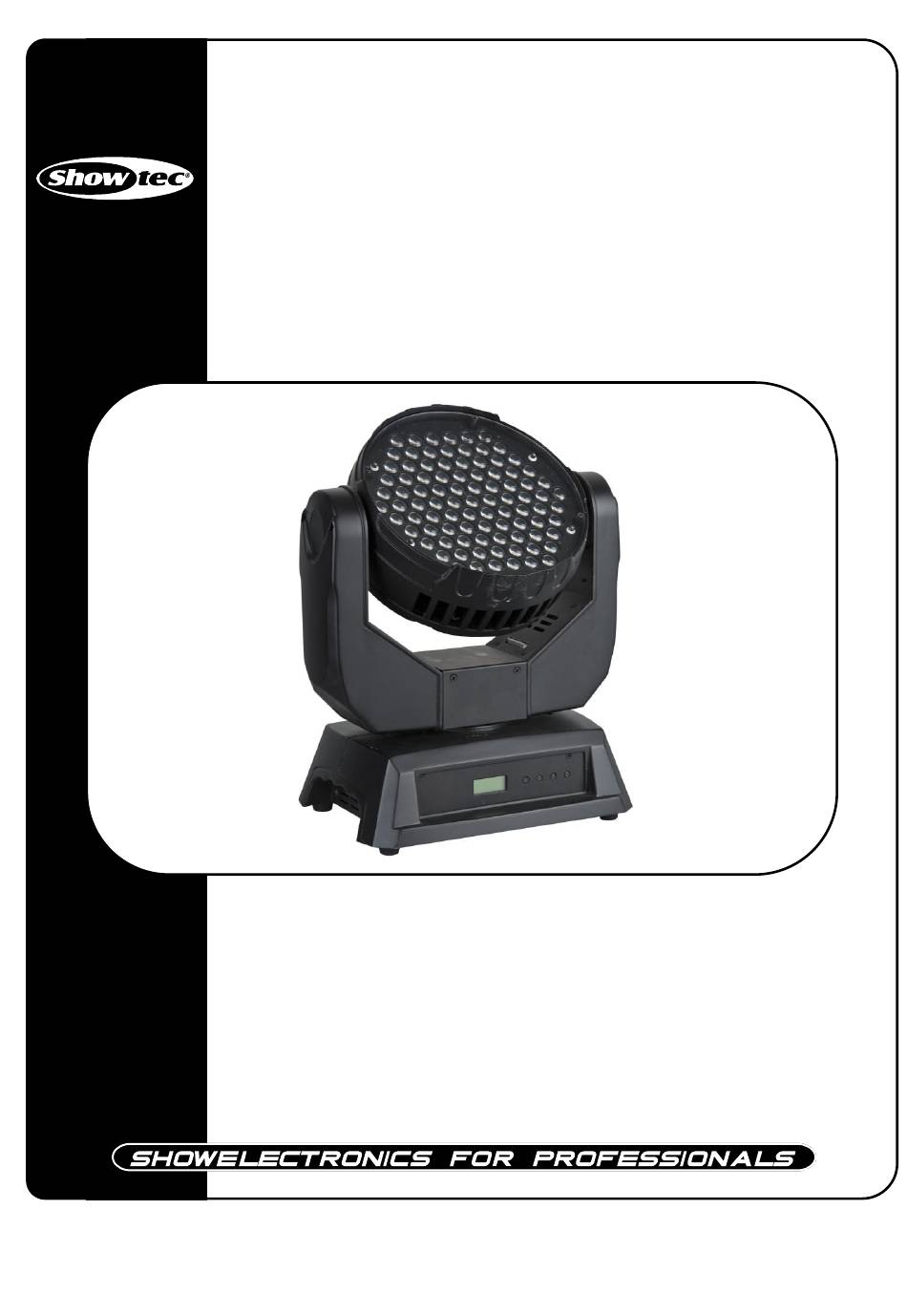

- Page 1 Expression 33000 Zoom RGBWA V2 ORDERCODE 41368...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Showtec Showtec Expression 33000 Product Guide ™ Warning.................…...……………..…………………………….………………………………….. Safety-instructions……………………………………………………………………………………………………………………………..… Operating Determinations.…………………………………………………………………………………………………...…………….… Rigging.………………………………………………………………………………………………………………………………...…………. Return Procedure………….………………………………………………………………………………………………………...………….. Claims……………………………………………………………………………..................Description................…...……………………………………………………………….…….……… Features and Overview ………………………………...….……………….…………………………………….……….……….…………. Backside…………………………………………………...…...….……………….……………………………………………...…………….. Installation................…...……………………………………………………………………….…….. Set Up and Operation..............……..……………………………………………………………….…….. Fixture Linking…………………....……..……………………………………..…………………..……………………………………..… Data Cabling………………..……..……………………………………………..…………………………………………………….….. Control Modes……………………………………………………………………………………………………………………………….….. One Expression 33000 (Built-in Programs)…..………………………………….……………….……………………………... Multiple Expression 33000s (Master/Slave control).……………………………………………….......... -
Page 4: Showtec Expression 33000 ™ Product Guide Warning
Your shipment includes: • Showtec Indigo 33000 LED with Volex IEC powercable 1,5m • 2 brackets for truss mounting • Safety cable •... - Page 5 If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 6: Operating Determinations
OPERATING DETERMINATIONS • This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. • The minimum distance between light-output and the illuminated surface must be more than 1 meter. •... -
Page 7: Return Procedure
Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE BLUE BLACK SILVER YELLOW/GREEN GREEN GREEN... -
Page 8: Description
Description of the device Features The Showtec Expression 33000 is a moving-head with high output and great effects. • Input voltage: 100-240V AC • Peak power 588 Watt • Continuous Power 313 Watt • Volex IEC power connector • LED Quantity: 22x Red, 22x Green, 22x Blue, 12x White, 12x Amber •... -
Page 9: Backside
Backside Fig. 2 3 4 5 3) Earth ON/OFF 5) IEC power connector + Fuse T5A 250V DMX signal connector (IN) 3-pin DMX signal connector (OUT) 3-pin DMX signal connector (IN) 5-pin DMX signal connector (OUT) 5-pin Installation Remove all packing materials from the Expression 33000. -
Page 10: Fixture Linking
Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 11: Control Modes
Control Modes There are 3 modes: • Select built-in programs • Master/Slave • DMX512 (Basic(12CH), Advanced (15CH) or G1 (14CH)) One Expression 33000 (Built-in Programs) 1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. When the Expression 33000 is not connected by a DMX-cable, it functions as a stand-alone device. -
Page 12: Multiple Expression 33000S (Dmx Control)
Multiple Expressions (DMX Control) 1. Fasten the effect light onto firm trussing Leave at least 1 meter on all sides for air circulation. Always use a safety cable (ordercode 70140 / 70141). 3. Use a 3-p XLR cable to connect the Expressions and other devices. 4. -
Page 13: Control Panel
The Expression 33000 can be operated with a controller in control mode or without the controller in stand- alone mode. Control Panel Fig. 6 A. LCD Display D. Up Button B. MENU button E. Down Button C. ENTER Button Control Mode The fixtures are individually addressed on a data-link and connected to the controller. -
Page 14: Menu Overview
Menu Overview... - Page 15 Once you have entered a step, you will see menu 5.2-5.13.
-
Page 17: Main Menu Options
MAIN MENU Press the MODE button to scroll through 9 options of the menu: To see menu 7, 8 and 9 You have to enter password UP DOWN UP DOWN in menu EXTRA When you use the menu button, the 3 hidden menus will now appear. 1. -
Page 18: Dmx Addressing
DMX Addressing With this menu you can set the DMX address. 1) Press Menu, until the display shows: Intro 2) Press Enter and use the Up/Down buttons to go to the Address menu. 3) Press enter to open this menu. You can choose 512 different DMX addresses. Use the Up / Down buttons to select the required address from 000 - 512. -
Page 19: Built-In Programs (Auto_1 + Auto_2)
Built-in Programs (Auto_1 + Auto_2) The device will play its built-in stand-alone programs. Custom Mode For a custom program to run, you have to enter some values first. For more information, please see Edit menu. Slave Mode With this menu you are able to set the device as a slave device. 1) Press Menu, until the display shows: Intro 2) Press Enter and use the Up/Down buttons to go to the Run menu. -
Page 20: Info Version
Info version 1) Press Menu, until the display shows: Intro 2) Press Enter and use the Up/Down buttons to go to the Info menu. 3) Press enter to see your expression 33000 version number. 2. Invert 1) Press Menu, until the display shows: Invert 2) Press Enter and use the Up/Down buttons to scroll through the options: Pan, Tilt, Dimmer, Use. -
Page 21: Edit
5. Edit 1) Press Menu, until the display shows: Edit 2) Press Enter and use the Up/Down buttons to scroll through the options: Step, Pan, Tilt, Speed, Red, Green, Blue, White, Amber, Dimmer, Strobe, Zoom, Time, Use. 3) Press enter to open this menu. Use the Up / Down buttons to set the desired setting. 4) Once you have set the desired mode, press the enter button to store your setting. -
Page 22: Calib
7. Calib... -
Page 23: Zoom
7. Calib 1) Press Menu, until the display shows: Calib 2) Press Enter and use the Up/Down buttons to choose the different color temperatures. 3) There are 11 pre-programmed White colors and RGB TO WHITE. They can be edited by mixing Red, Green and Blue. -
Page 24: Dmx Channels
DMX Protocol 15 Channels (Advanced) Channel 1 – Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540°and stopped at any position you wish. –... - Page 25 Channel 12 – Dimmer intensity 0-255 From black to brightest Channel 13 – Shutter / Strobe (Dimmer must be open Open 10-255 Strobe effect, from slow to fast (0-10 flashes/sec.) Channel 14 – Zoom 0-255 Zoom Channel 15 – Control 0-19 No Function 20-39...
-
Page 26: Channels (Basic)
DMX Protocol 12 Channels (Basic) Channel 1 – Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540°and stopped at any position you wish. Channel 2 –... - Page 27 Channel 10 – Shutter / Strobe (Dimmer must be open Open 10-255 Strobe effect, from slow to fast (0-10 flashes/sec.) Channel 11 – Zoom 0-255 Zoom Channel 12 – Control 0-19 No Function 20-39 Blackout during Pan/Tilt movement 40-59 Disabled blackout during Pan/Tilt movement 60-79 Fan Auto activated after 5 seconds 80-99...
-
Page 28: Channels (G1)
DMX Protocol 14 Channels (G1) Channel 1 – Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540°and stopped at any position you wish. –... -
Page 29: Channel Settings
160-169 Test activated after 5 seconds 170-179 Custom activated after 5 seconds 180-199 No Function 200-219 Reset activated after 5 seconds 220-235 No Function 236-239 activated after 5 seconds DIM 0 240-243 activated after 5 seconds DIM 1 244-247 activated after 5 seconds DIM 2 248-251 activated after 5 seconds... -
Page 30: Maintenance
3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 4. The electric power supply cables must not show any damages or material fatigue. The Showtec Expression 33000 requires almost no maintenance. However, you should keep the unit clean. - Page 31 Problem Probable cause(s) Remedy No power to the fixture · Check that power is switched on One or more and cables are plugged in. fixtures are Primary fuse blown. · Replace fuse. completely dead. Fixtures reset The controller is not connected. ·...
-
Page 32: Product Specifications
Product Specification Model: Showtec Expression 33000 Voltage: 100-240V-50Hz (CE) Peak power 588 Watt Continuous Power 313 Watt Fuse: T5A / 250V Dimensions: 310x296x460mm (LxWxH) Weight: 10,15 kg Operation and Programming Signal pin OUT: pin 1 earth, pin 2 (-), pin 3 (+)
