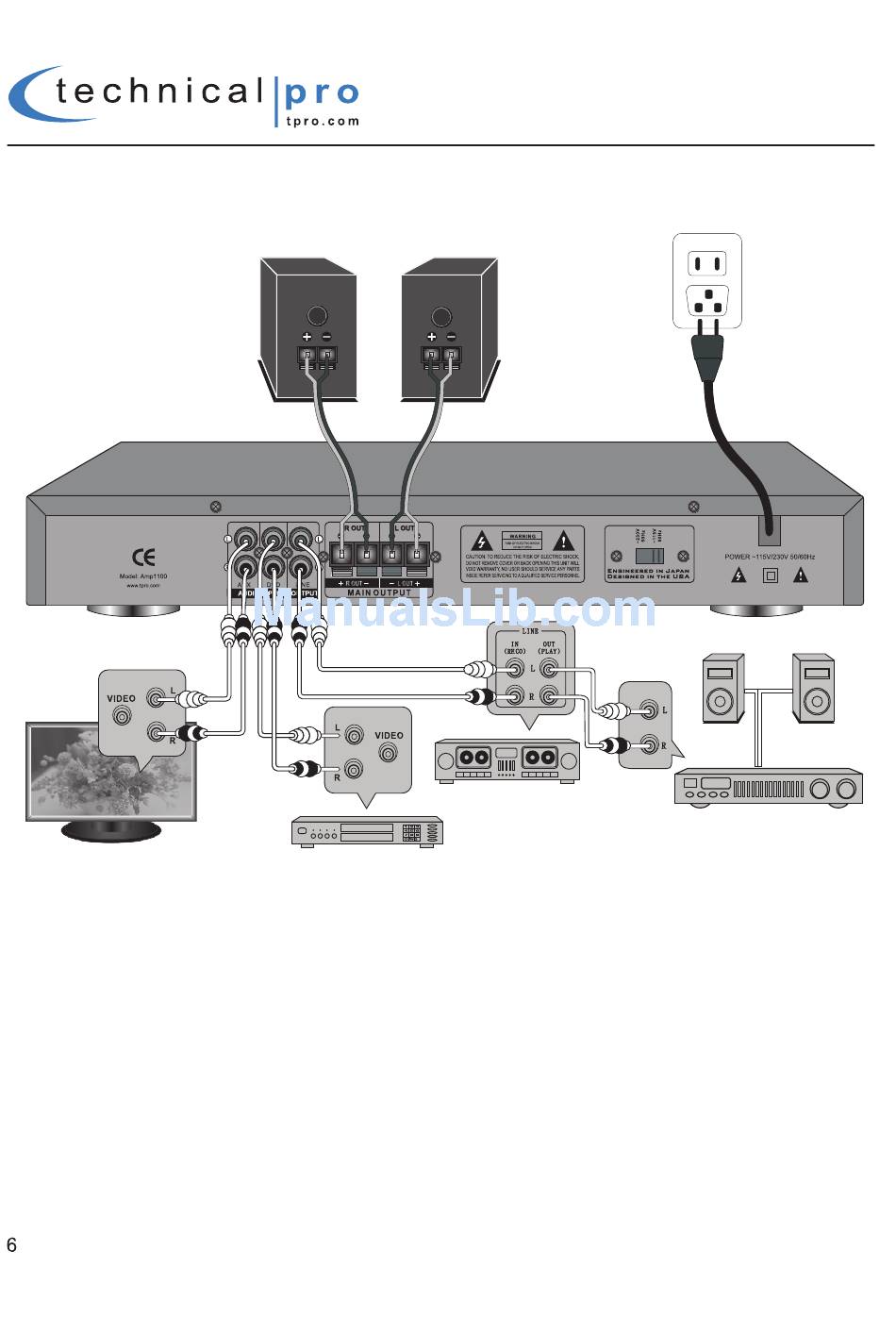

Typical IA1200 Input and Output Connections

POWER OUTLET
LEFT SPEAKER
RIGHT SPEAKER
Audio Out
Audio IN
Audio Out
TAPE Recorder
Power Amplifier
(AUDIO INPUT)
TV DVD Player
(AUDIO OUTPUT) (AUDIO OUTPUT)
In the typical setup, a user should wire from the output of the signal source directly to one of the RCA
inputs on the rear of the IA1200. Once the input signal source is connected to the IA1200, connect the
loudspeakers to the IA1200's main outputs. Pictured above is a TV and DVD player connected to the
IA1200 inputs. The IA1200 has two loudspeakers connected to it which will play either the signal from
either the TV,DVD,USB flash drive,SD Card or MP3 player.
The LINE OUTPUT is connected to the input of a tape recorder. The output of the tape recorder is
connected to the input of another amplifier. You can bypass the tape recorder and connect the LINE
OUTPUT directly to the input of another amplifier. The LINE OUTPUT will send the signal from the
selected input (AUX,DVD,USB flash drive,SD card or MP3 Player).
NOTE:WHEN MAKING THESE CONNECTIONS THE POWER OF THE IA1200 AND THE SIGNAL
SOURCE SHOULD ALL BE IN THE OFF POSITION WITH THE VOLUME LEVELS TURNED DOWN
