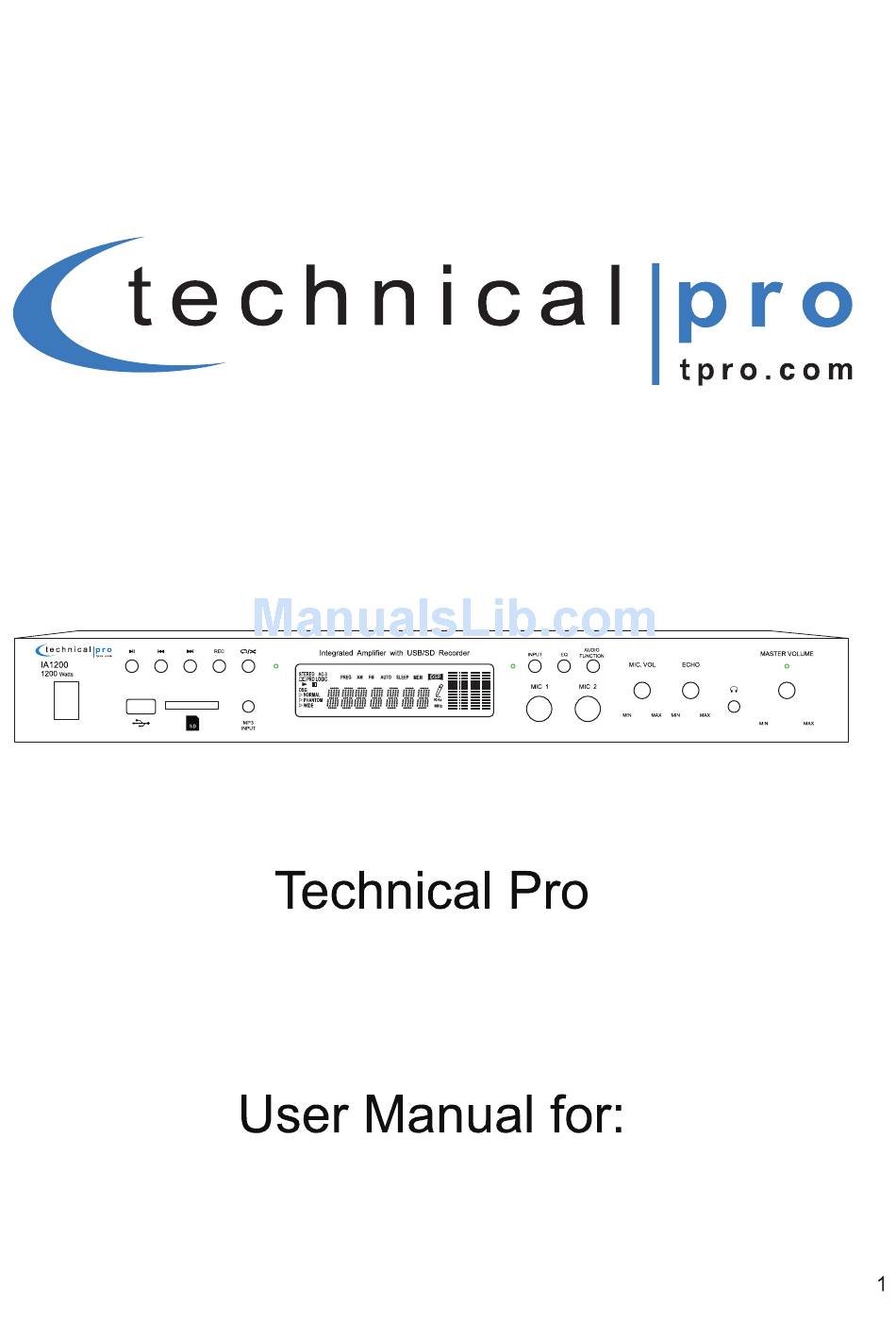

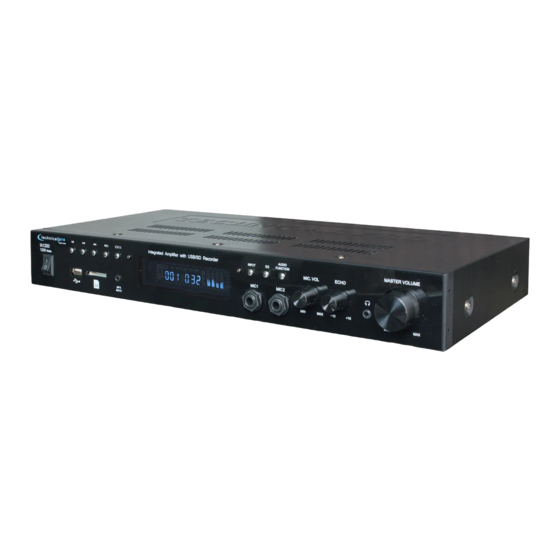

- Page 1 Integrated Amplifier with USB / SD Inputs IA1200...
- Page 2 IA1200, it is recommended that you review all of the information provided in this instruction manual before operating this equipment. If you've spent any time at all in professional audio, you know the name Technical Pro and what it stands for — incredible performance &...
- Page 3 IA1200 IA1200 Front Panel 11 12 13 14 15 16 17 18 1.Power: Press this button to power the unit on and off. 2.USB Input: Insert your USB flash drive into this slot. The unit will automatically read .mp3 files from the USB flash drive.
- Page 4 16.Input Slector: Use this button to switch between all the inputs. 17.EQ Mode Selector: The IA1200 has five built-in pre-set equalization modes. Press this button to switch among the pre-set equalization modes. 18.Audio Function: Use this to switch among treble, bass, balance & master volume control mode, then use the master volume knob to adjust the corresponding sound effect.
-
Page 5: Screen Display
IA1200 is off. 2.Voltage selector: Select between 230V AC 50Hz / 115V AC 65Hz. 3.Main Output: Connect your speakers to these speaker outputs.The IA1200 should be powered off and volume levels turned down when making these connections. - Page 6 In the typical setup, a user should wire from the output of the signal source directly to one of the RCA inputs on the rear of the IA1200. Once the input signal source is connected to the IA1200, connect the loudspeakers to the IA1200’s main outputs.
- Page 7 Connecting the Signal Source to the IA1200 (DVD/MIXER/MP3 etc.) The IA1200 has two input jacks on the rear of the unit which is designed to receive the signal directly from your DVD, mixer or any of your other 2 Channel signal sources. To ensure that you have correctly connected your DVD player (other sound sources) to the unit, make sure that the DVD player has a RCA cord coming from it’s output and that this cord is plugging into the RCA Input on the rear of the...
