Summary of Contents for Technical Pro AMP8X

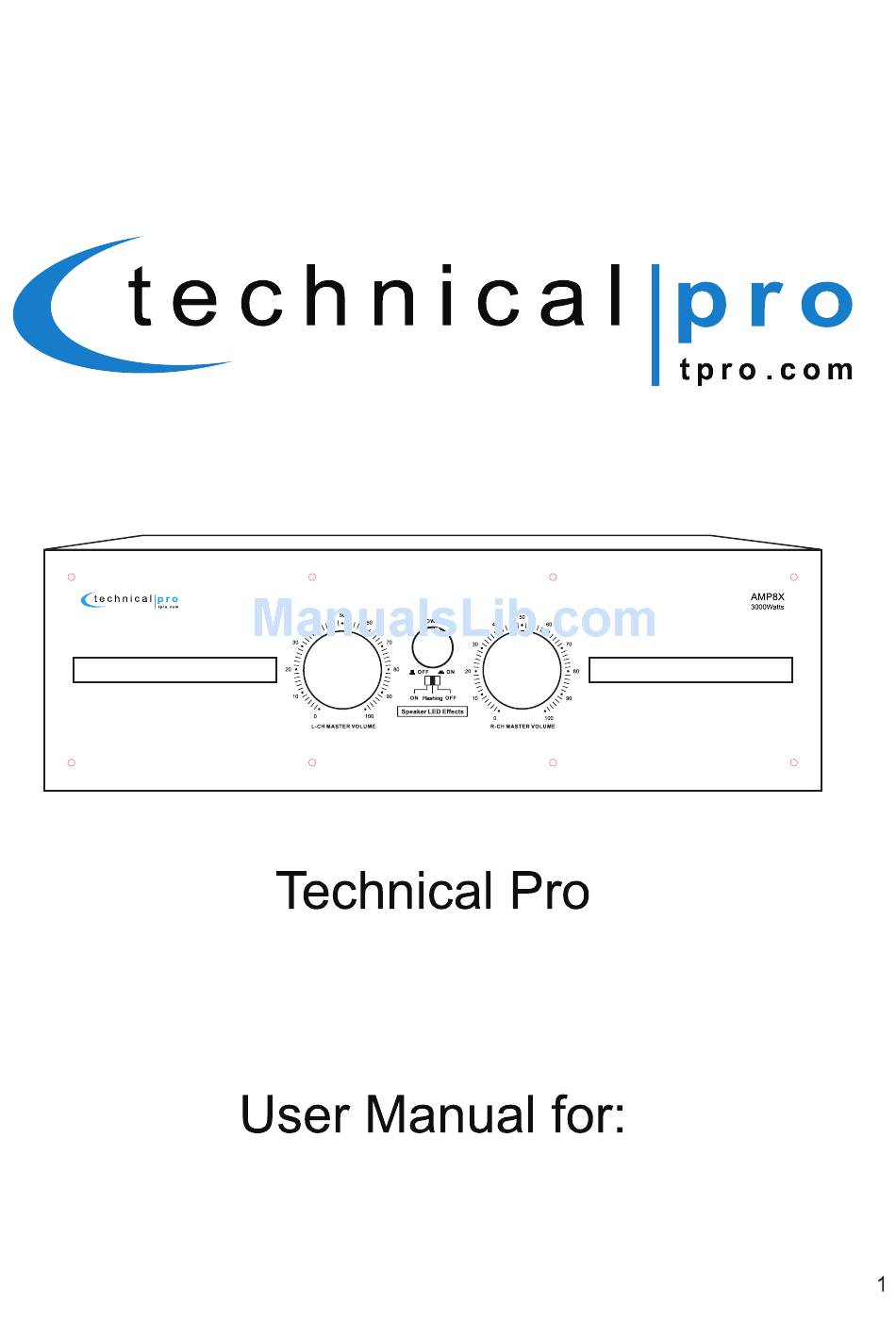

- Page 1 Integrated Amplifier with Speaker LED Outputs AMP8X...
- Page 2 AMP8X, it is recommended that you review all of the information provided in this instruction manual before operating this equipment. If you've spent any time at all in professional audio, you know the name Technical Pro and what it stands for — incredible performance &...

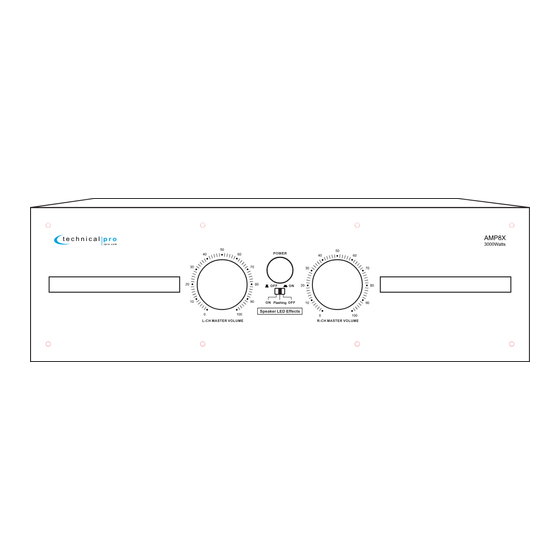

- Page 3 2.Speaker LED Effect Switch: There are three positions on the switch. Set the switch to different positions to make the LED connected on the rear of AMP8X flash in correspoding mode--constantly on, flash with the music level and silent off.
- Page 4 2.Power Switch: Select between 230V AC 50Hz / 115V AC 65Hz. 3.Group B Main Output: Connect your speakers to these speaker outputs. The AMP8X should be powered off and volume levels turned down when making these connections. 4.Group A Main Output: Connect your speakers to these speaker outputs.
- Page 5 Passive Loudspeakers (top) connected to it which will play the signal from DVD player. These speakers do not have LED inputs and therefore will only transmit the audio from the AMP8X. The AMP8X also has two Technical Pro Passive LED Loudspeakers (bottom) connected to it. Just connect the AMP8X's speaker outputs to the audio inputs on the speakers, then connect the AMP8X's LED outputs to the LED inputs on the speakers.
- Page 6 Connecting the Signal Source to the AMP8X (DVD/MIXER/MP3 etc.) The AMP8X has one RCA input jack on the rear of the unit which is designed to receive the signal directly from your DVD, mixer or any of your other 2 Channel signal sources. To ensure that you have correctly connected your DVD player (other sound sources) to the unit, make sure that the DVD player has a RCA cord coming from it’s output and that this cord is plugging into the RCA Input on the rear of...
