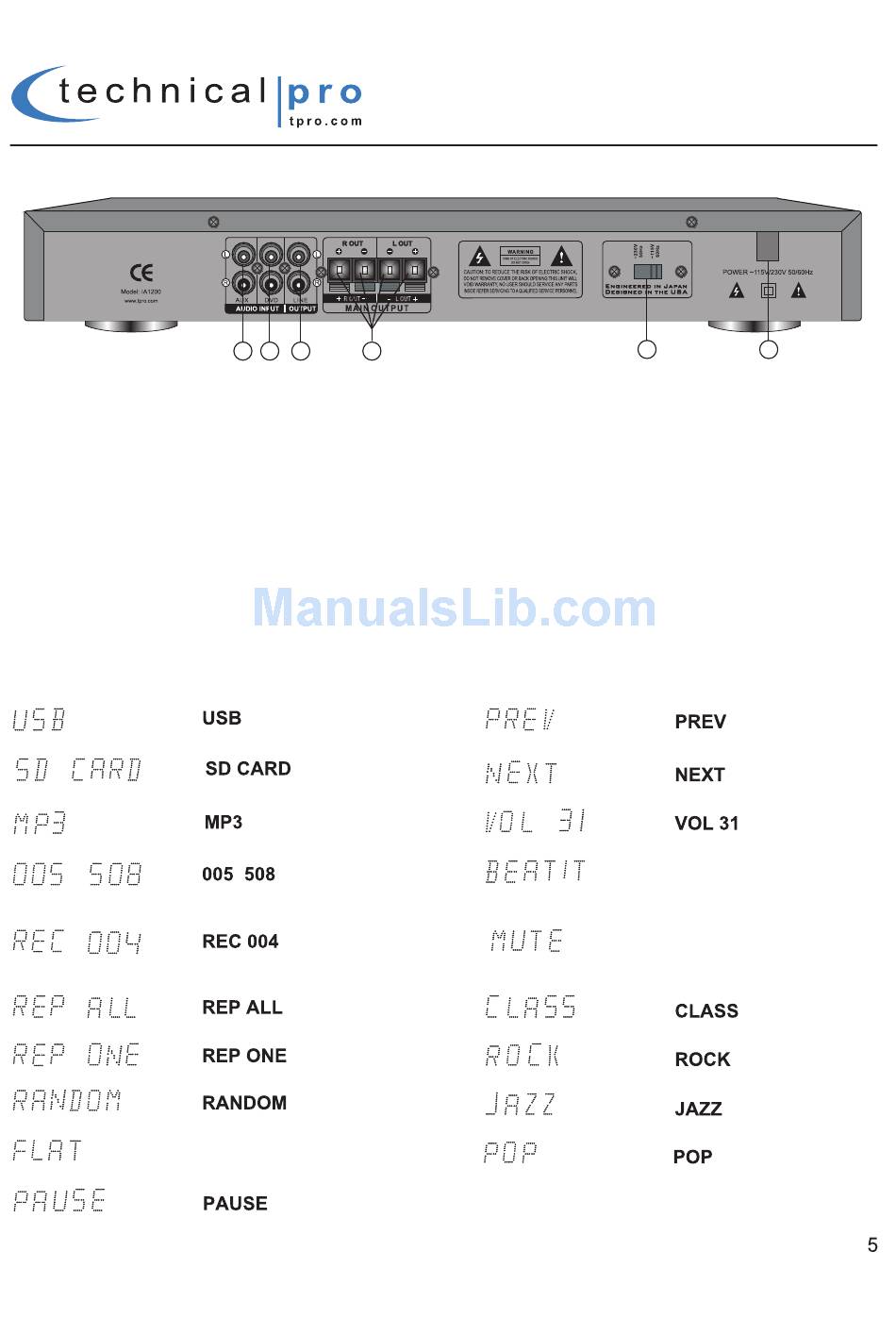

IA1200 Rear Panel
1.Power Supply: Use the power cord to provide with the unit. Before connecting it to the outlet, be
sure the power of the IA1200 is off.
2.Voltage selector: Select between 230V AC 50Hz / 115V AC 65Hz.
3.Main Output: Connect your speakers to these speaker outputs.The IA1200 should be powered off
and volume levels turned down when making these connections.
4.LINE Output: Connect the line output to the input on either a recording device or another amplifier.
The signal from the line output is a passive output and can not be connected directly to a passive
speaker.
5.DVD Input: Connect any stereo signal such as a DVD, CD, TAPE, Mixer etc to this input. To play a
signal connected to this input make sure the DVD input is selected on the front panel.
6.AUX Input: Connect any stereo signal such as a DVD, CD, TAPE, Mixer etc to this input. To play a
signal connected to this input make sure the AUX input is selected on the front panel.
Screen Display
This will display when the unit is reading the USB flash drive.
This will display when the unit is reading the SD card.
This will display when the input selected is MP3.
This will display when the unit is playing tracks from USB flash drive
or SD card.The track No. is 5 and the elapsed time is 5min 8sec.
This will display when the unit is recording and the elapsed time is
4seconds.When the recording is paused this will flash on the screen.
This will display when the unit is set to repeat all tracks.
This will display when the unit is set to repeat current tracks.
This will display when the unit is set to play random tracks.
This will display when the equalizer is set to Flat.
This will display when the playing is paused.
6
5
4
3
Flat
2
This will display when pressing the "Previous" button or key.
This will display when pressing the "Next" button or key.
This will display when the volume level is set to 31.
This will display when the unit is playing tracks from USB
flash drive or SD card.The track title is "BEAT IT".
This will display when the input selected is MP3, AUX or
DVD and unit is muted.
This will display when the equalizer is set to CLASS.
This will display when the equalizer is set to ROCK.
This will display when the equalizer is set to JAZZ.
This will display when the equalizer is set to POP.
IA1200
1
BEAT IT
MUTE
