Summary of Contents for Technical Pro AX3000

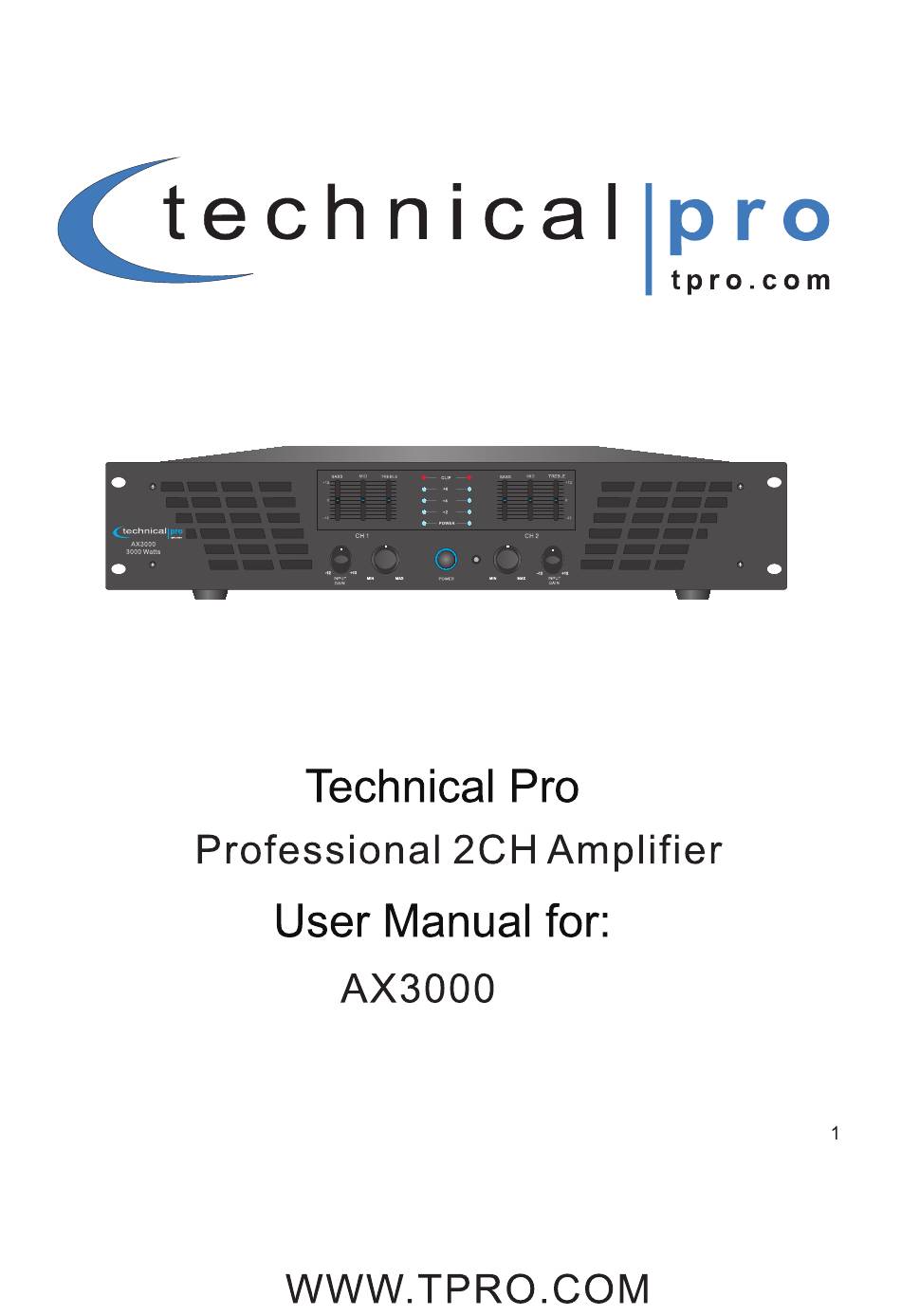

- Page 2 AX3000, it is reommended that you review all of the information provided in the instruction manual before operating the equipment. If you’ ve spent any time at all in professional audio, you know the name Technical Pro and what it stands for- incredible performance&...
- Page 3 1. POWER SWITCH This button turns on the power to the amplifier. Before turning on the amplifier, set the input gain and volume knobs all the way down. 2. INPUT GAIN (dB) These two controls are used to adjust the input gain of each channel. Use the input gain knobs to adjust the input signal level on each channel.
- Page 4 BANANA BINDING POST OUTPUTS There are two banana binding post outputs on the rear of the AX3000. Make sure the banana binding posts are Tightly screwed in place before connecting a cable with a banana connector. When using a speaker wire with the Banana binding post follow the instructions on page 5 to installation instructions.
- Page 5 Wiring the Amplifier using Speaker Wire POWER There are two banana binding post outputs on the rear of AX3000. To use the banana binding post Outputs you will need to use a banana connector or speaker wire. You can connect the speakers To these speaker ouputs via the speaker cable included.
-
Page 6: Ac Power Cord Connection
Connecting the signal source to the AX3000 ( DVD/MIXER/MP3 etc.) The AX3000 has two RCA input jacks on the rear of the unit which is designed to receive the signal directly from your DVD,mixer or any of your other 2 Channel signal sources. To ensure...
