Summary of Contents for Technical Pro IA1000
-

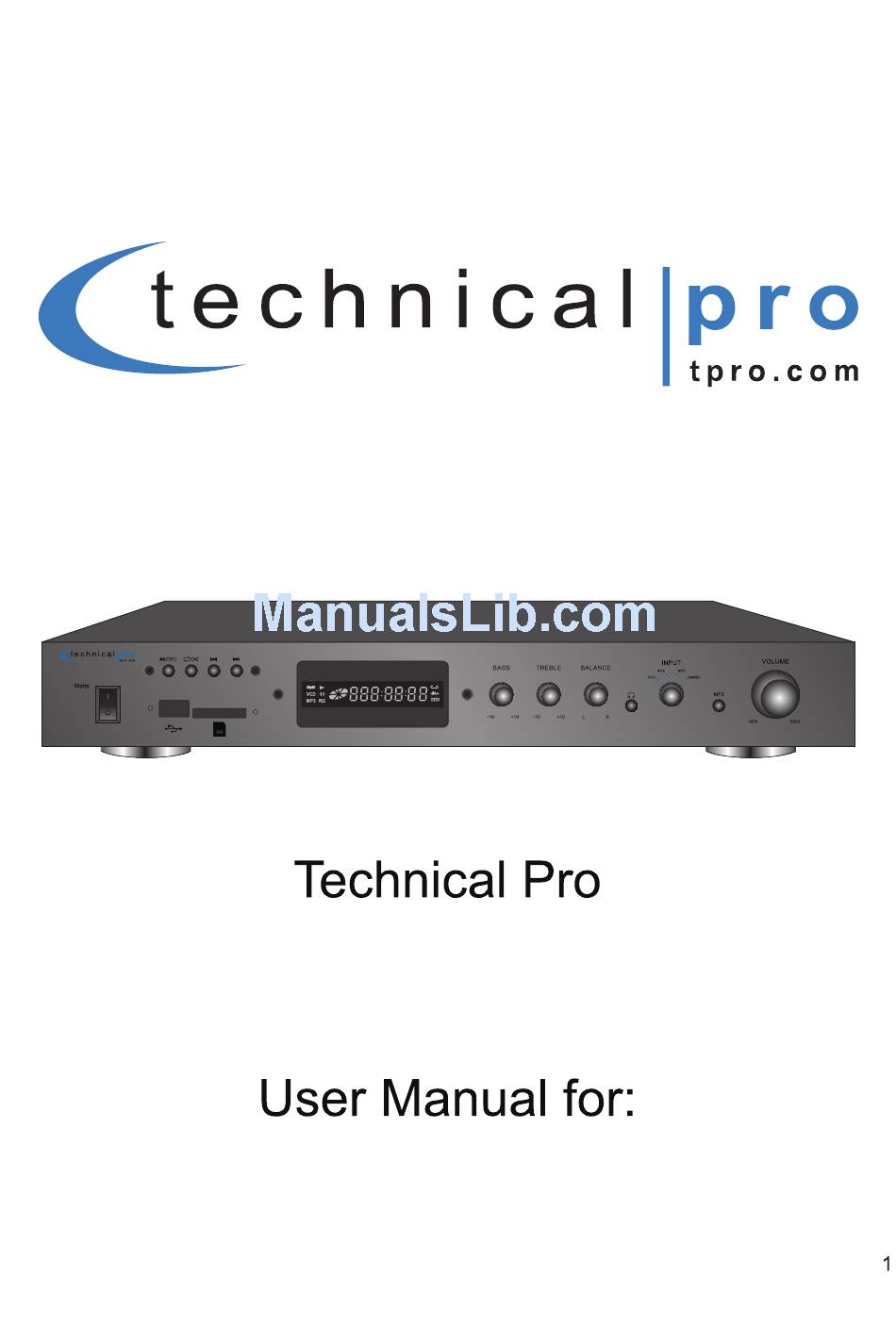

Page 1: Integrated Amplifier
IA1000 1000 Integrated Amplifier with USB / SD Inputs IA1000 QUESTIONS/COMMENTS CALL 888-842-6277 or email info@tpro.com... - Page 2 IA1000, it is recommended that you review all of the information provided in this instruction manual before operating this equipment. If you've spent any time at all in professional audio, you know the name Technical Pro and what it stands for — incredible performance &...

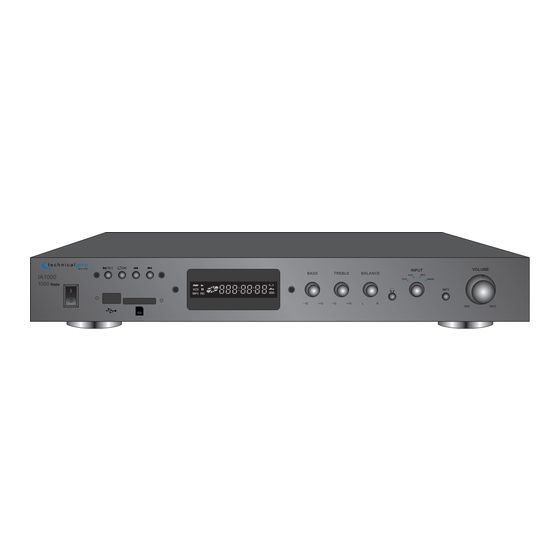

- Page 3 IA1000 IA1000 Front Panel 4 5 6 7 IA1000 1000 1.Power: Press this button to power the unit on and off. 2.USB Input: Insert your USB flash drive into this slot. The unit will automatically read .mp3 files from the USB flash drive.
- Page 4 The IA1000 is able to determine if the current track is the original track or if it was made using the IA1000’s recording feature.
- Page 5 2.Power Switch: Voltage selector. Select between 230V AC 50Hz / 115V AC 65Hz. 3.Main Output: Connect your speakers to these speaker outputs.The IA1000 should be powered off and volume levels turned down when making these connections. 4.LINE Output: Connect the line output to the input on either a recording device or another amplifier. The signal from the line output is a passive output and can not be connected directly to a passive speaker.
-
Page 6: Right Speaker
In the typical setup, a user should wire from the output of the signal source directly to one of the RCA inputs on the rear of the IA1000. Once the input signal source is connected to the IA1000, connect the loudspeakers to the IA1000’s main outputs.Pictured above is a TV and DVD player connected to the IA1000 inputs. -
Page 7: Input / Output Connections
Connecting the Signal Source to the IA1000 (DVD/MIXER/MP3 etc.) The IA1000 has two input jacks on the rear of the unit which is designed to receive the signal directly from your DVD, mixer or any of your other 2 Channel signal sources. To ensure that you have correctly connected your DVD player (other sound sources) to the unit, make sure that the DVD player has a RCA cord coming from it’s output and that this cord is plugging into the RCA Input on the rear of the... -
Page 8: Screen Display
IA1000 Screen Display This will display when the unit is reading the USB flash drive. This will display if the “Previous” or next button is pressed when the previous or next track No. is 58. This will display when the unit is reading the SD card. -
Page 9: Mounting Options
IA1000 Mounting Options Desk IA1000 1000 IA1000 1000 Desk Rack IA1000 1000...
