Summary of Contents for Technical Pro H1502UrBT

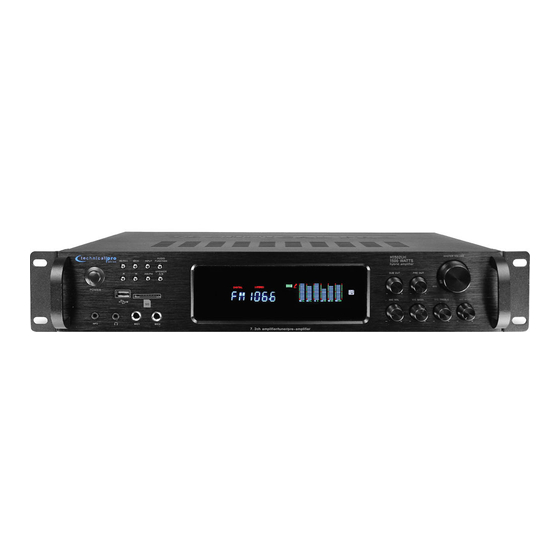

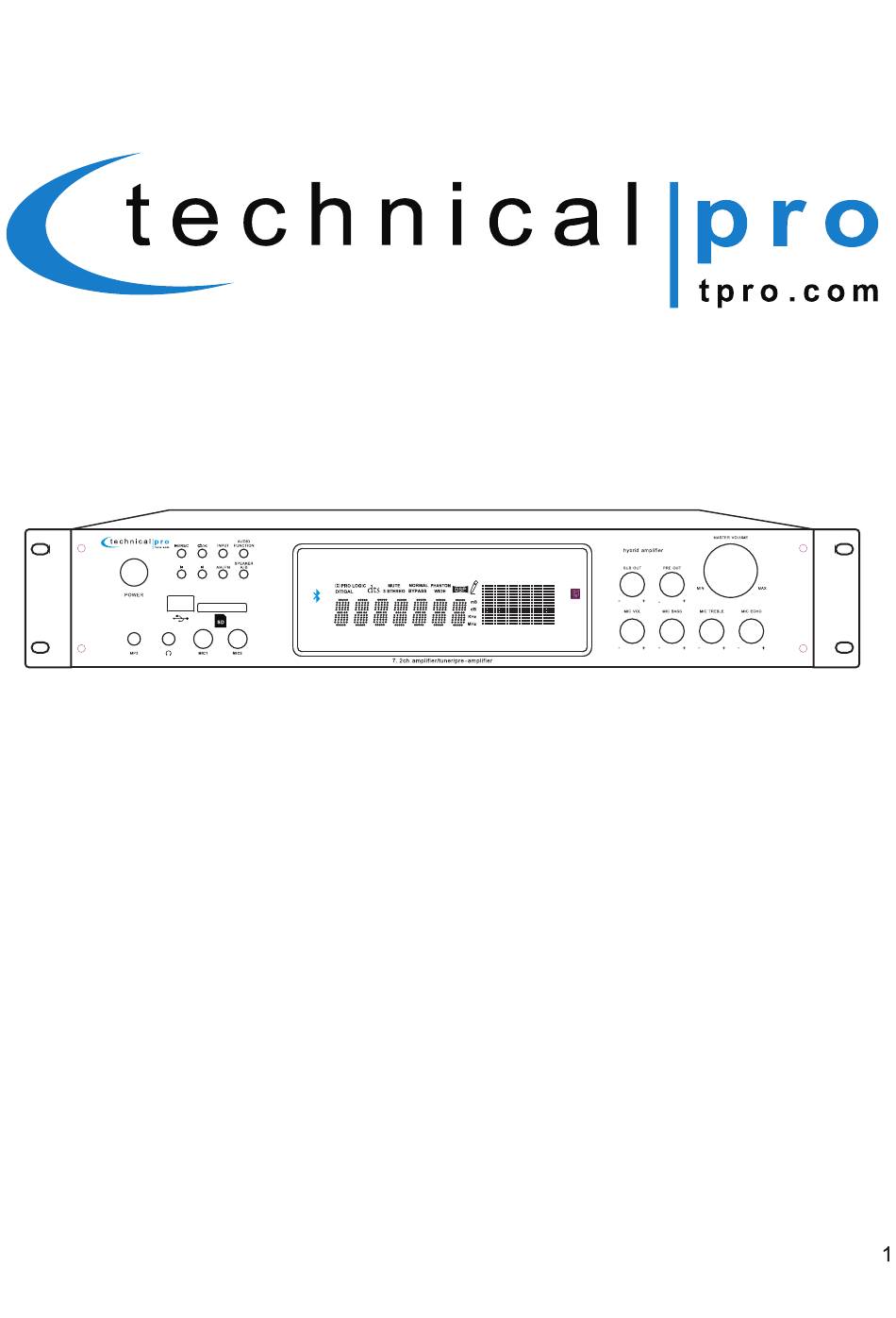

- Page 1 Technical Pro Professional Hybrid Amplifier with USB & SD Card Inputs ® Bluetooth Compatibility User Manual for: H1502UrBT & H2502UrBT & H3502UrBT...
- Page 2 If you've spent any time at all in professional audio, you know the name Technical Pro and what it stands for — incredible performance &...
-
Page 3: Front Panel
Hybrid Series Hybrid Series Front Panel 4 5 6 7 8 9 16 17 18 1.Power:Press this button to power the unit on and off. 2.MP3(1/8”) Input: Connect your MP3 player or computer here.Make sure to press the input selector button (5) until “MP3”... - Page 4 Hybrid Series 5.Input Selector: Use this button to switch between all the inputs. 6.Audio Function: Use this to switch among treble, bass, balance & master volume control mode, then use the master volume knob to adjust the corresponding sound effect. 7.Previous Track Button: Press this button to go back to the beginning of the previous track on either the iPod™...
- Page 5 Hybrid Series Hybrid Series Rear Panel 1.Power Supply: Only use the power cord provided with the unit to power the unit. When connecting and disconnecting the power cord, be sure the power of the unit is off. Connect the cord to the rear of the unit and then connect it to the outlet.
- Page 6 Hybrid Series Hybrid Series Remote 1.Play/Pause:Press this button to pause the signal from the USB flash drive,SD Card or iPod™(Classic and Nano) or bluetooth signals,press again to play. This button will only function for the USB flash drive,SD Card, iPod™ (Classic and Nano) or bluetooth signals.
- Page 7 Hybrid Series 10.Balance Control: Press these buttons to adjust the balance effect of master output. 11.Bass Control: Press either of these buttons to increase or decrease the bass effects on the main output. 12.EQ Mode Selector: The hybrid has five built-in pre-set equalization modes. Press this button to switch among the pre-set equalization modes.
-
Page 8: Remote Control Operation
Hybrid Series “REC” and the elapsed time displayed on the screen will start flashing. Press again to continue the recording. Press and hold this button for several seconds to save the file and end the recording and exit. If both USB flash drive and SD card are connected, the unit will begin recording onto the USB flash drive. - Page 9 Hybrid Series Typical Hybrid Series Input and Output Connections POWERED SUBWOOFER Wall Socket Amplifier TAPE RECORDER ™ iPhone (AUDIO INPUT) (Bluetooth enabled) CD Player In the typical setup, a user should wire from the output of the signal source directly to one of the RCA inputs on the rear of the hybrid.
- Page 10 Hybrid Series Connecting the speaker wire to the hybrid’s main speaker outputs 1.Remove approximately 10 mm (0.4 in) of insulation from the end of each speaker cable and twist the exposed wires of the cable together to prevent short circuits. 10 mm (0.4 in) 2.Unscrew the main speaker output terminal on the rear of the Hybrid.Insert the exposed speaker wire into the opening.
- Page 11 Hybrid Series USB Flash Drive & SD Card & iPod™(Classic and Nano) & Bluetooth Connection MP3 Player There are also SD Card and USB flash drive inputs on the front panel of the hybrid which is compatible with iPod™ (Classic and Nano) via the USB input. The maximum size of the SD Card or USB flash drive is 32GB. If your memory card exceeds 32GB, the unit will not be able to read the files from the memory cards.
-
Page 12: Ac Power Cord Connection
Hybrid Series AC Power Cord Connection To connect the power cord to your hybrid simply plug female side of the power cord into the power cord input which is on the rear of the unit . Then plug the male side of the power cord to an electric outlet. -
Page 13: Screen Display
This will display when the input selected is bluetooth. The Bluetooth word mark and logos are registered trademarks owned by SIG, Inc. and any use of such marks by Technical Pro is under license. Other trademarks and trade name are those of their respective owners.
