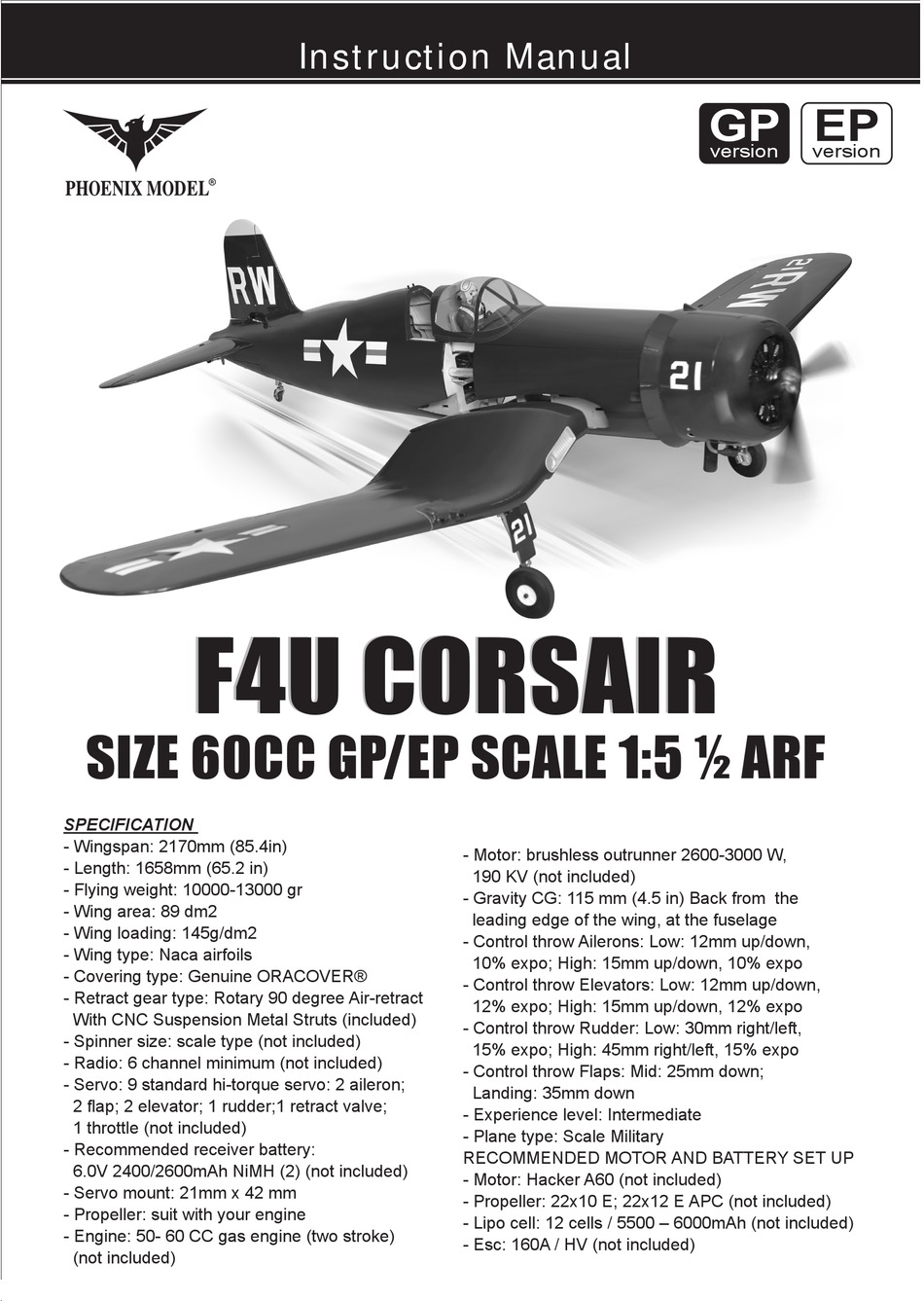

Phoenix Model f4u corsair Instruction Manual

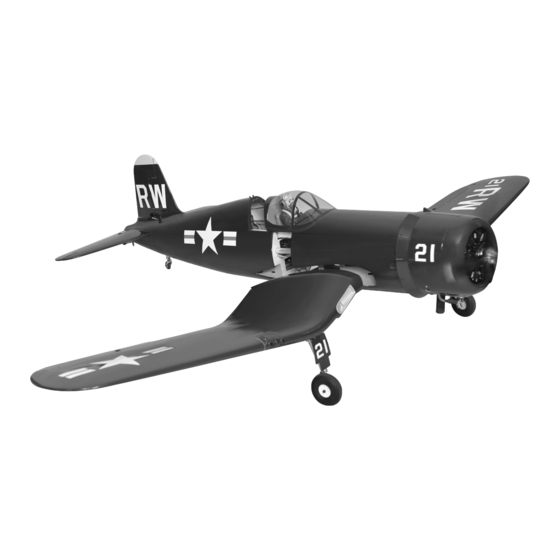

F4U CORSAIR
F4U CORSAIR
SIZE 60CC GP/EP SCALE 1:5 ½ ARF
SPECIFICATION
- Wingspan: 2170mm (85.4in)
- Length: 1658mm (65.2 in)
- Flying weight: 10000-13000 gr
- Wing area: 89 dm2
- Wing loading: 145g/dm2
- Wing type: Naca airfoils
- Covering type: Genuine ORACOVER®
- Retract gear type: Rotary 90 degree Air-retract
With CNC Suspension Metal Struts (included)
- Spinner size: scale type (not included)
- Radio: 6 channel minimum (not included)
- Servo: 9 standard hi-torque servo: 2 aileron;
2 flap; 2 elevator; 1 rudder;1 retract valve;
1 throttle (not included)
- Recommended receiver battery:
6.0V 2400/2600mAh NiMH (2) (not included)
- Servo mount: 21mm x 42 mm
- Propeller: suit with your engine
- Engine: 50- 60 CC gas engine (two stroke)
(not included)
Instruction Manual
- Motor: brushless outrunner 2600-3000 W,
- Gravity CG: 115 mm (4.5 in) Back from the
- Control throw Ailerons: Low: 12mm up/down,
- Control throw Elevators: Low: 12mm up/down,
- Control throw Rudder: Low: 30mm right/left,
- Control throw Flaps: Mid: 25mm down;
- Experience level: Intermediate
- Plane type: Scale Military
RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: Hacker A60 (not included)
- Propeller: 22x10 E; 22x12 E APC (not included)
- Lipo cell: 12 cells / 5500 – 6000mAh (not included)
- Esc: 160A / HV (not included)
190 KV (not included)
leading edge of the wing, at the fuselage
10% expo; High: 15mm up/down, 10% expo
12% expo; High: 15mm up/down, 12% expo
15% expo; High: 45mm right/left, 15% expo
Landing: 35mm down
GP EP
version version
