Community MX-Y8 Instructions

MX-Y8 / MX-Y10 Yoke
M-Class MX8 and MX10 Mounting Yokes
Standard Yoke-Type Mounting Brackets for Community
M-Class MX8 and MX10 Monitor Systems
The MX-Y8 and MX-Y10 yoke brackets are designed to flush mount the M-Class
series MX8 and MX10 loudspeakers in either a vertical or horizontal orientation tightly
against a wall or ceiling. Corner mounting is also possible when the yoke is mounted
vertically and the loudspeaker horizontally with the bottom and rear of the enclosure
against adjacent walls. Such mounting is further aided by the convenient location of
the input panel on the bottom rear of the loudspeaker enclosure.
The yokes are manufactured of steel, covered with a durable powder-coat finish, and are
available in either black or white to match the color of the loudspeaker enclosure. They
are engineered to provide a high margin of safety when supporting the correct M-Class
loudspeaker. Use the MX-Y8 yoke for the MX8 monitor and MX-Y10 yoke for the MX10
monitor.
The yoke bracket is provided with the hardware required to attach it to the loudspeaker enclosure. No additional
hardware is provided to attach the yoke bracket to the mounting surface. Such hardware must be supplied by the
installer and should be sized and rated for the weight load of the loudspeaker, keeping in mind that additional torque
load may occur when focusing the loudspeaker within the yoke assembly.
determining if the mounting surface is capable of safely supporting the weight load of the loudspeaker, and for
selecting appropriate hardware to install it.
Parts List:
Mounting Yoke (1)
Rubber Washer (2)
M10 x 30 mm Hex Bolt (2)
10mm Flat Washer (2)
10mm Lock Washer (2)
The installer must supply all other hardware
for the installation.

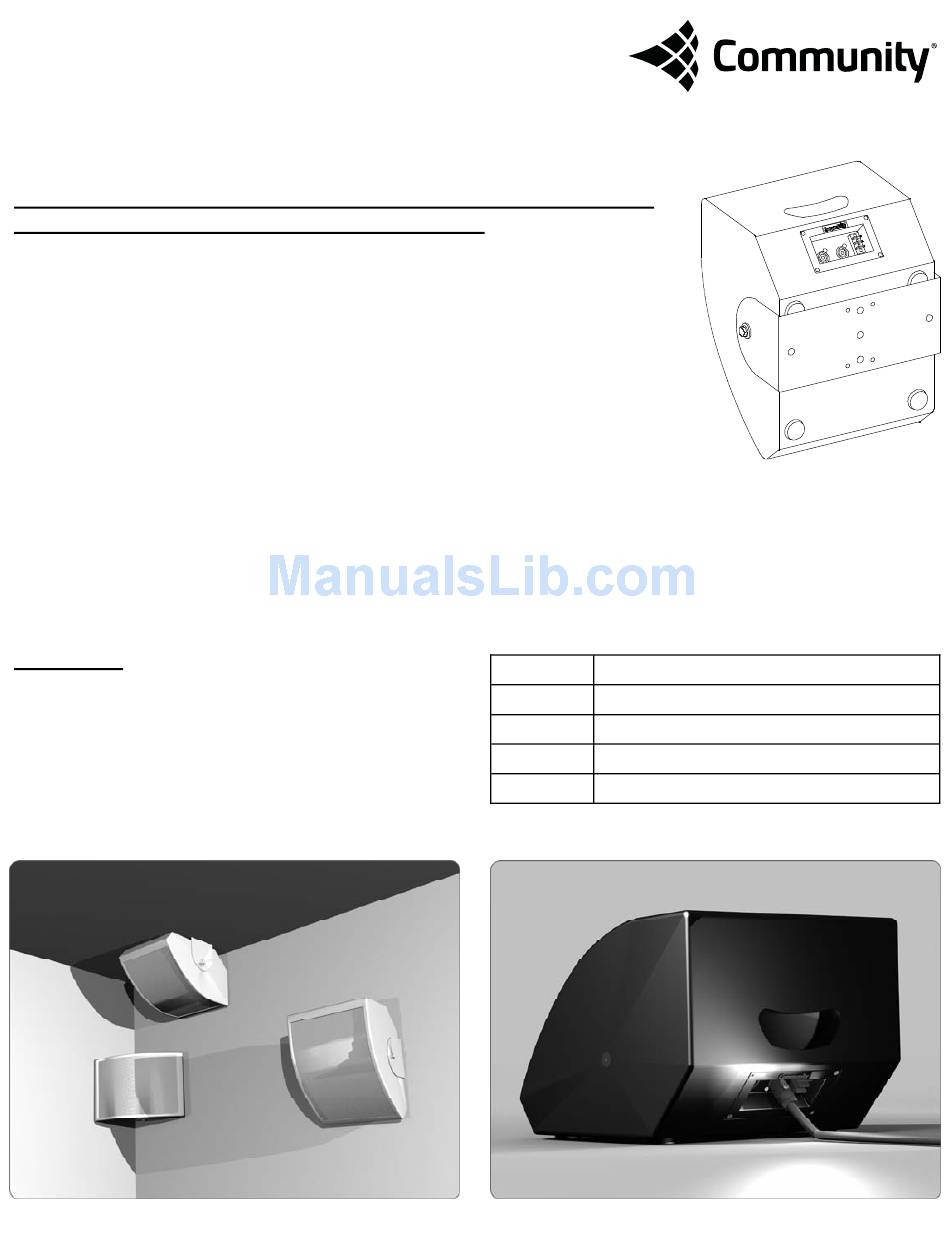

Wall, ceiling and corner mounting of the M-Class MX8 or MX10
monitor is possible using the MX-Y8 and MX-Y10 yokes.
The installer is solely responsible for
Part No. Description
MX-Y8B Yoke Bracket for M-Class MX8-B (black)
MX-Y8W Yoke Bracket for M-Class MX8-W (white)
MX-Y10B Yoke Bracket for M-Class MX10-B (black)
MX-Y10W Yoke Bracket for M-Class MX10-W (white)
The loudspeaker input panel is located
on the rear of the enclosure.
