III

– Connecting to the time distribution network

Connect the 100-240VAC 50/60Hz mains power supply. (See chapter 2.)

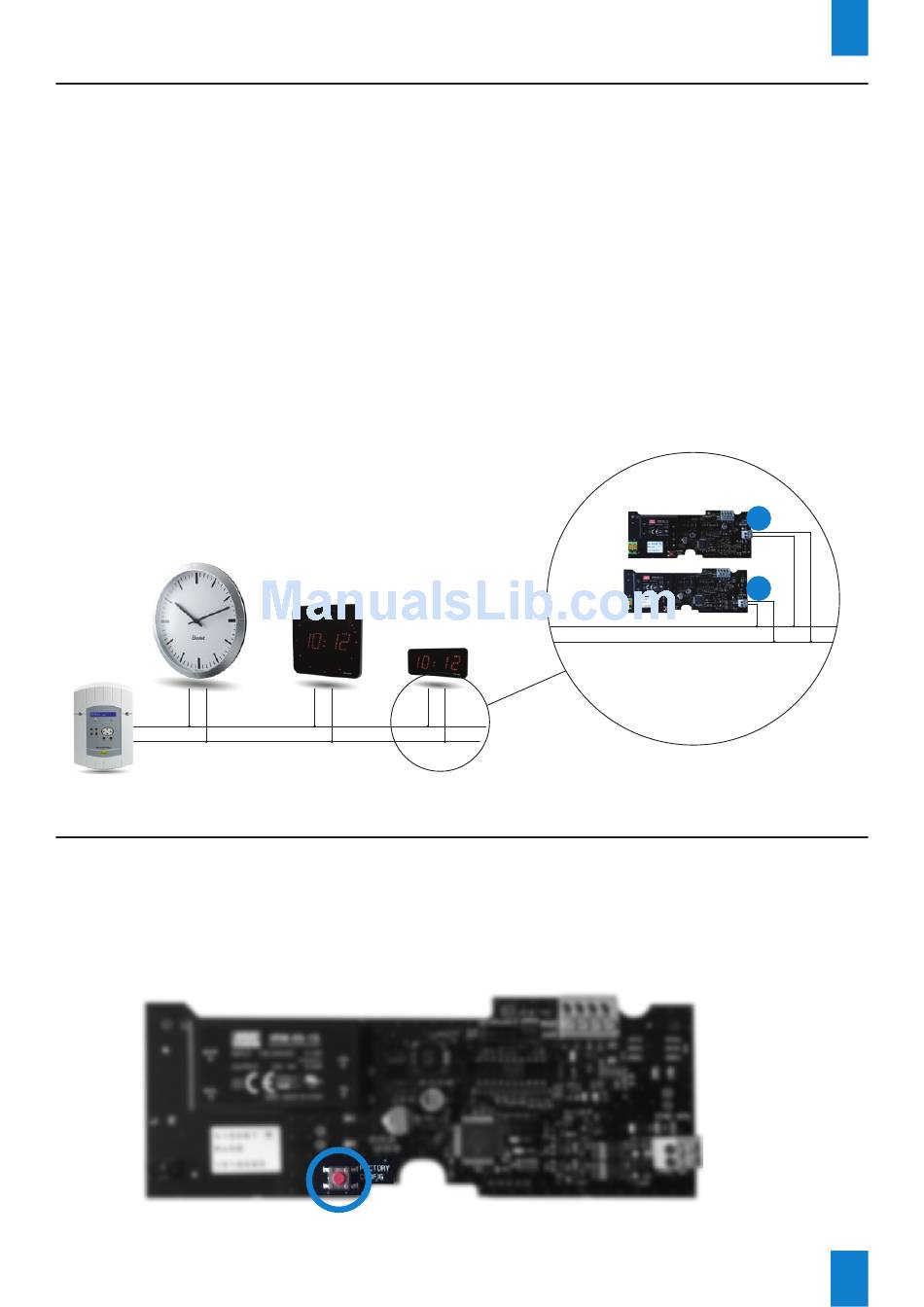

3.1 Parallel distribution with inverted polarity

Minute // (12-24-48 Volt), ½ minute // (24 Volt) and AFNOR
1) Ensure that the clock is designed to be synchronised by "Impulse" or to be connected to a time
code distribution network that meets the AFNOR standard .
2) Connect the impulse cable to terminal strip (A). Use the correct polarity for impulse synchronisation.
There is no polarity in AFNOR.
Minute or ½ minute mode (only)
3) Select the impulse frequency (minute or ½ minute) (refer to page 23) and display mode
(refer to page 13 or 15, depending on your clock).
4) Set the clock to the correct time (refer to page 11 or 12, depending on your clock).
IV

– Default configuration

To restore factory settings, press the red button on the electronic board until the clock turns black.
Open the clock to access this button (see Installation).
Location of button on the electronic board (example shows an Impulse card):
AFNOR
OR
IMPULSE
EN
A
A
9
