Assembly - FANATEC CSL Elite Pedals Manual

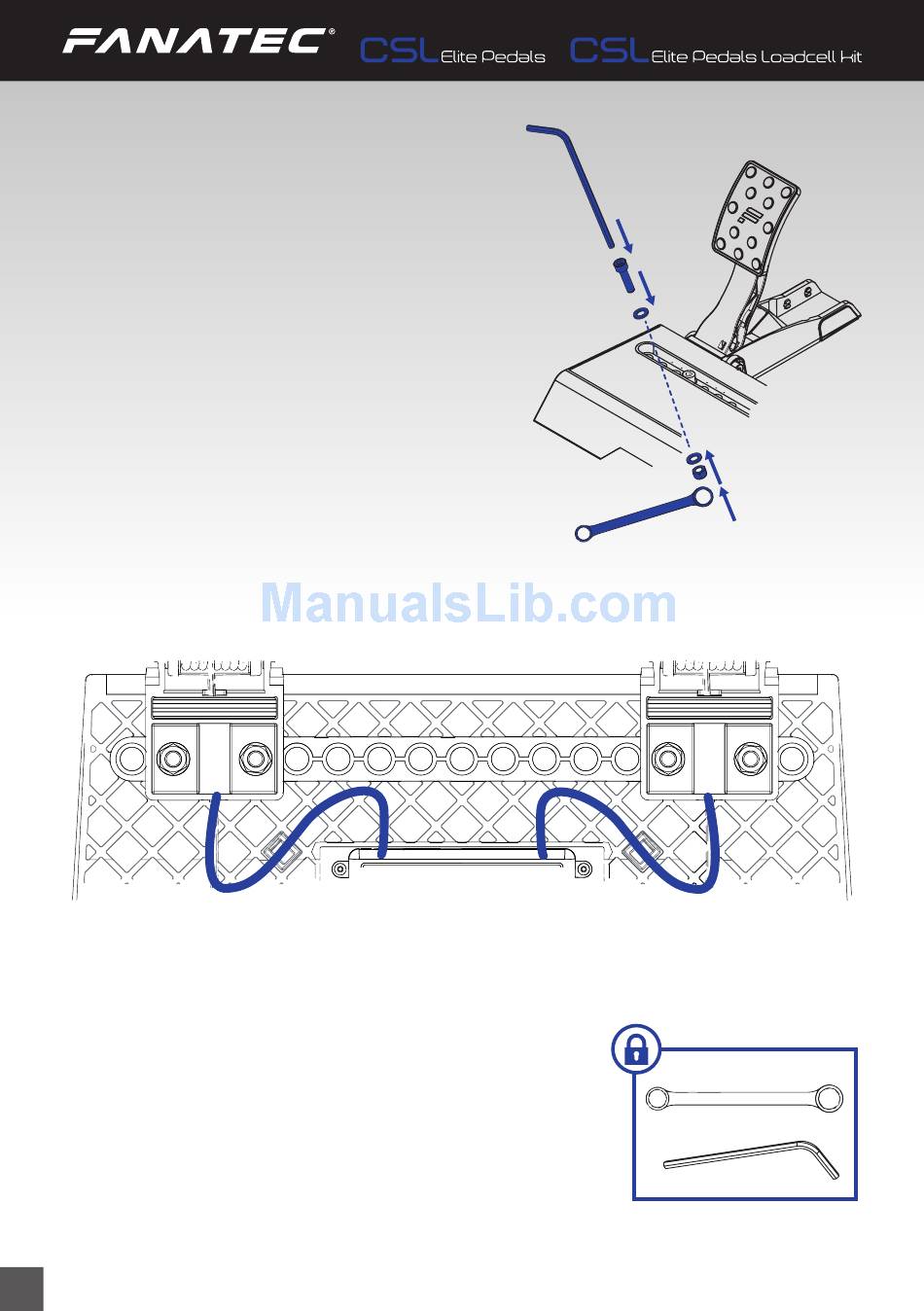

Insert the M8 screws with washer from top
side through the heel rest and pedal unit
(pedal unit brake)/(pedal unit gas), counter
with washer and nut from bottom side.
Tighten the assembly by using the Allen Key
and the wrench from package content.
When done insert the slot cover into the
heel rest.
Connect the RJ12 plugs of the pedal unit cables to the corresponding port.
Store Allen Key and wrench safely for later use.
15
