5.9 Connections CSL Elite Pedals LC

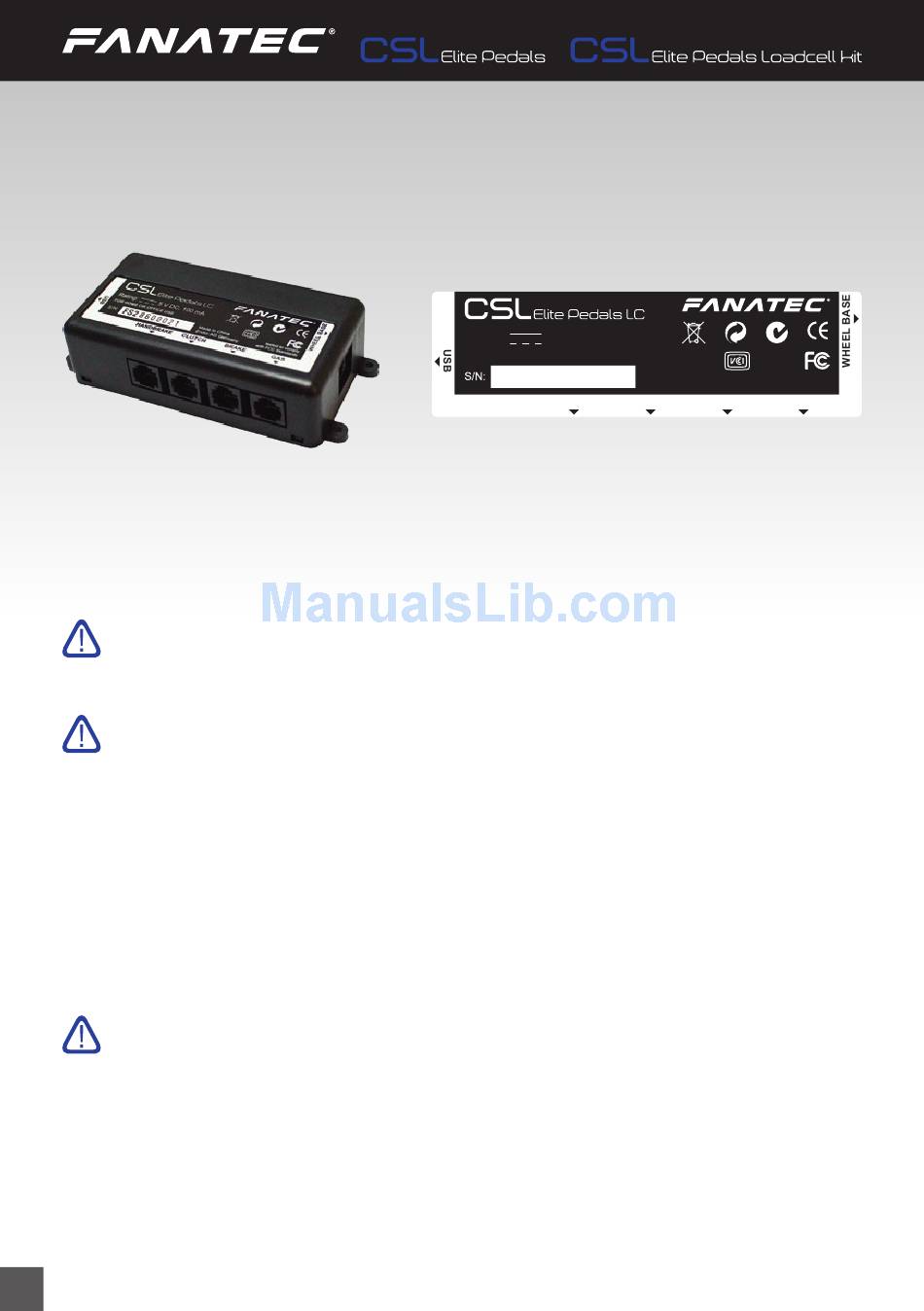

To connect your CSL Elite Pedals LC to PC or wheel base there are some con-
nector sockets at the bottom side of the CSL Elite Pedals LC mainboard which
comes with the CSL Elite Pedals Loadcell Kit:
5.9.1 Wheel Base
Use the RJ12 connection cable on this port and connect the other plug of the
RJ12 cable to the wheel base port 'Pedals'. This option is applicable for use of
CSL Elite Pedals LC with PC or consoles.
IMPORTANT:
CSL Elite Pedals to avoid damages on the CSL Elite Pedals electronics!
IMPORTANT:
damages on the devices! Only use the USB socket of the CSL Elite Pedals
LC mainboard for connection to PC USB port!
5.9.2 USB
Use the USB connection cable on this port and connect the other plug of the
USB cable to the USB port of your PC. This option is only applicable for use
of CSL Elite Pedals LC with PC, not applicable for use of CSL Elite Pedals LC
with consoles.
IMPORTANT:
CSL Elite Pedals Loadcell Kit to avoid damages on the CSL Elite Pedals
LC electronics!
5.9.3 Gas
This port is used for the connection to the gas / throttle pedal unit of the CSL
Elite Pedals.
