FANATEC CSL Elite Pedals Manual page 17

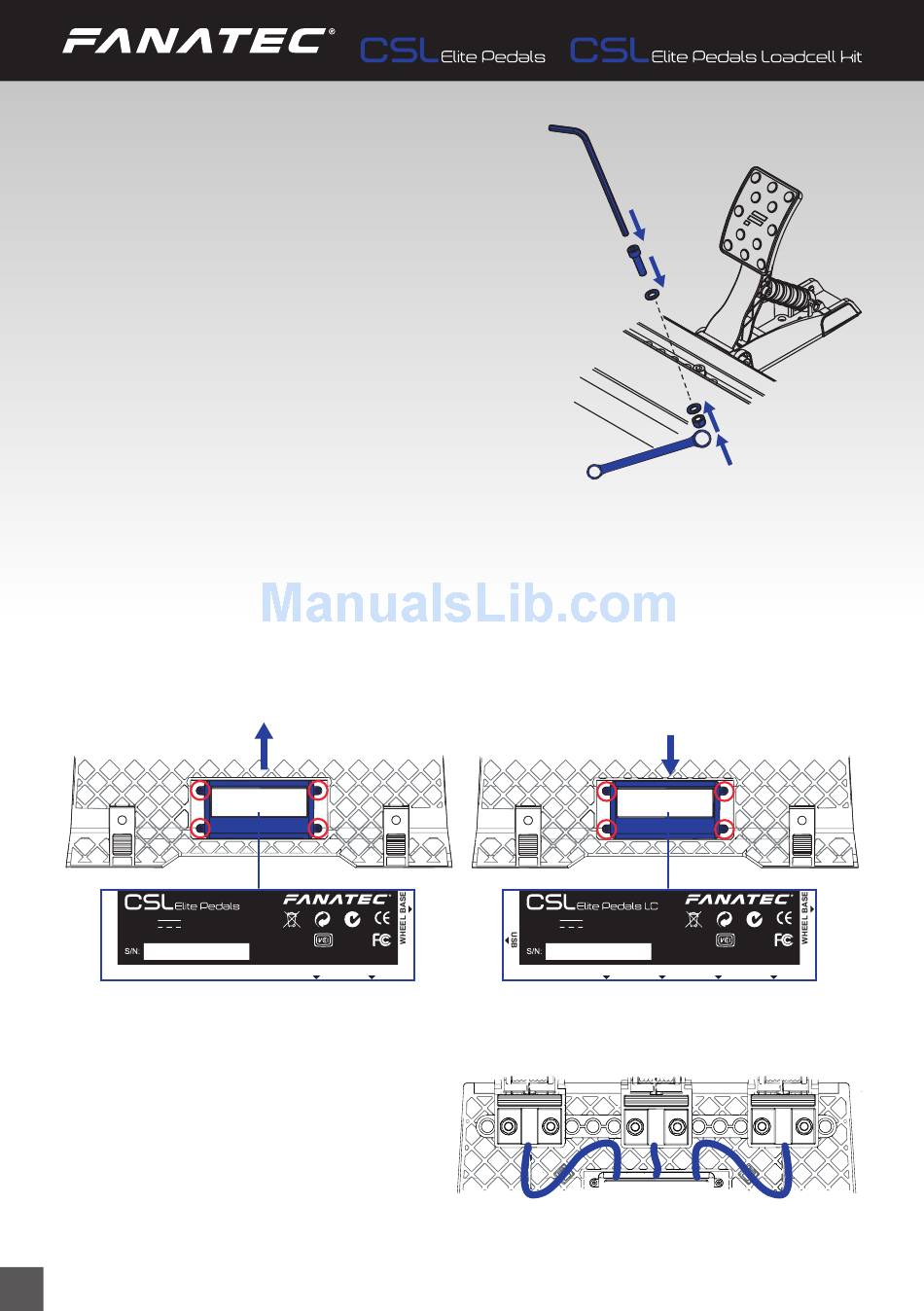

Insert the M8 screws with washer from top
side through the heel rest and pedal units,
counter with washer and nut from bottom side.
Tighten the assembly by using the Allen Key 6
mm and the wrench 13 mm from original CSL
Elite Pedals package content.
When done insert the slot cover into the heel
rest.
Remove the original CSL Elite Pedals electronics module by loosening the
four small screws on the sides with Allen Key 2 mm.
Insert the CSL Elite Pedals LC electronics module from Loadcell Kit package
content and mount it with the four small screws and Allen Key 2 mm.
Rating: 5 V DC, 100 mA
FOR HOME OR OFFICE USE
Connect the RJ12 plugs of the pedal
unit cables to the corresponding port.
17
CSL EP
Made in China
tested to comply
Endor AG Germany
with FCC Standards
BRAKE GAS
CSL EP LC
Rating: 5 V DC, 100 mA
FOR HOME OR OFFICE USE
Made in China
Endor AG Germany
HANDBRAKE CLUTCH
tested to comply
with FCC Standards
BRAKE GAS
