Summary of Contents for weBoost ego
- Page 1 Cell Phone Signal Booster User Manual User Manual NEED HELP? Cell Phone Signal Booster 877.786.1105 NEED HELP?
-
Page 2: Table Of Contents
______ Index Package Contents Accurately measuring cell signal strength Place Booster In Strong Signal Location STEP 1: Connect the 6’ Cable to the Booster Unit STEP 2: Outside Antenna STEP 3: Connect the 25’ Cable to Booster Unit STEP 4: Place Antenna In Weak Signal Location STEP 5: Connect the Booster to Power... -
Page 3: Package Contents

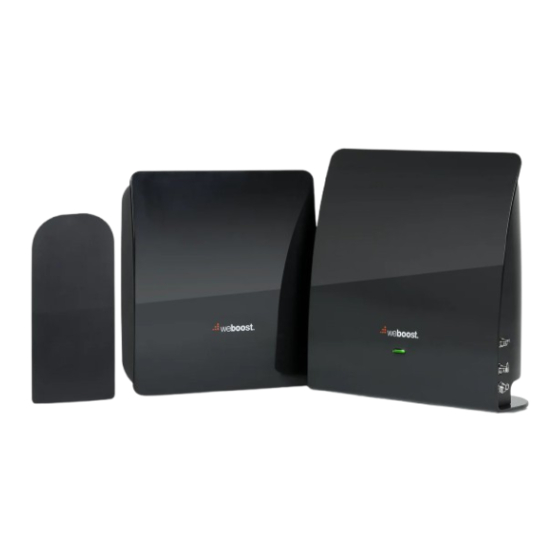

________ Package Contents Booster Inside Outside Antenna Antenna 25’ Coax 6’ Coax Power Cable Cable Supply This device may be operated ONLY in a fixed location for in-building use. The signal booster unit is designed for use in an indoor, temperature controlled environment ( <... -
Page 4: Accurately Measuring Cell Signal Strength
Apple Inc. Android is a trademark of Google Inc. All Other Phones & Alternate Methods • https://www.weboost.com/test-mode-instructions/ All Phones: • Keep track of the network (3G or 4G) phone is connected to. -
Page 5: Step 1: Place Booster In Strong Signal Location
-100 dBm Place your Booster in the area with the strongest cell phone signal. The LED light, and weBoost logo should be facing into Booster the room. Note this will need to connect to the Inside Antenna (Step 5) with the 25’... -
Page 6: Step 2: Connect The 6' Cable To The Booster Unit
______ Step 2: Connect the 6’ Cable to the Booster Unit Port Labeled “Outside Antenna” 6’ Cable ______ Step 3: Outside Antenna Outside 6’ Cable Antenna Connect the Outside Antenna to the 6’ Cable (from Step 2) Open window, place Outside Antenna between window and window screen with the logo facing inside... - Page 7 •If this is the case, it is important to have the Booster (Step 1) in the window sill with the weBoost logo facing inside the house. •If you don’t have a screen to hold the outside antenna, use the included double-sided adhesive to stick the antenna against the window.
- Page 8 ______ Step 5: Place Inside Antenna In Weak Signal Location and Connect to 25’ Cable IMPORTANT: The further apart the Antenna is located from the Booster the better your coverage will be. To determine the best location for your Booster, note the dBm reading in a variety of locations.
-
Page 9: Step 6: Connect The Booster To Power
______ Step 6: Connect The Booster to Power Connect the Power Supply on the side of the Booster. Power Cable Plug the Booster in. The light may change colors for the first 15 seconds. Check your coverage area. Refer Surge Protector to TROUBLESHOOTING section if Power Strip needed. -
Page 10: Troubleshooting
Booster. A combination of vertical and horizontal separation distance also works to increase system gain. If you are having any difficulties while testing or installing your Booster, contact our weBoost Customer Support team for assistance at 877.786.1105 or visit https://cellphonesignalbooster.us/contact-us... - Page 11 (TROUBLESHOOTING cont.) signal boost, more advanced troubleshooting may be necessary through 877.786.1105. weBoost Customer Support at Light Off If the eqo Booster’s light is off, verify your surge protected power strip has power. Note: The eqo Booster can be reset by un-plugging and re-plugging the power supply from the power strip.
-
Page 12: Specifications
______ Specifications eqo Booster Product Number U474020 Model Number 460032 FCC ID: PWO460032 4726A-460032 Connectors SMA-Female Antenna Impedance 50 Ohms Frequency 698-716 MHz, 729-756 MHz, 777-787 MHz, 824-894 MHz, 1850-1995 MHz, 1710-1755/2110-2155 MHz 700 MHz 700 MHz 800 MHz 1700/2100 MHz 1900 MHz Band 12/17 Band 13... -
Page 13: Safety Guidelines
(2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by weBoost could void the authority to operate this equipment. FOR MORE INFORMATION ON REGISTERING YOUR SIGNAL BOOSTER WITH YOUR WIRELESS PROVIDER, PLEASE SEE BELOW: Sprint: http://www.sprint.com/legal/fcc_boosters.html... -
Page 14: Warranty
______ Warranty 2 YEAR WARRANTY weBoost Signal Boosters are warranted for two (2) years against defects in workmanship and/or materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase. Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material... - Page 15 Cell Phone Signal Booster https://cellphonesignalbooster.us/weboost-eqo-4g-cell-phone-booster-for-home-474120 Copyright © 2016 weBoost. All rights reserved. weBoost products covered by U.S. patent(s) and pending application(s) NOT AFFILIATED WITH WILSON ANTENNA 111976F_Rev02_04.06.20.17...
