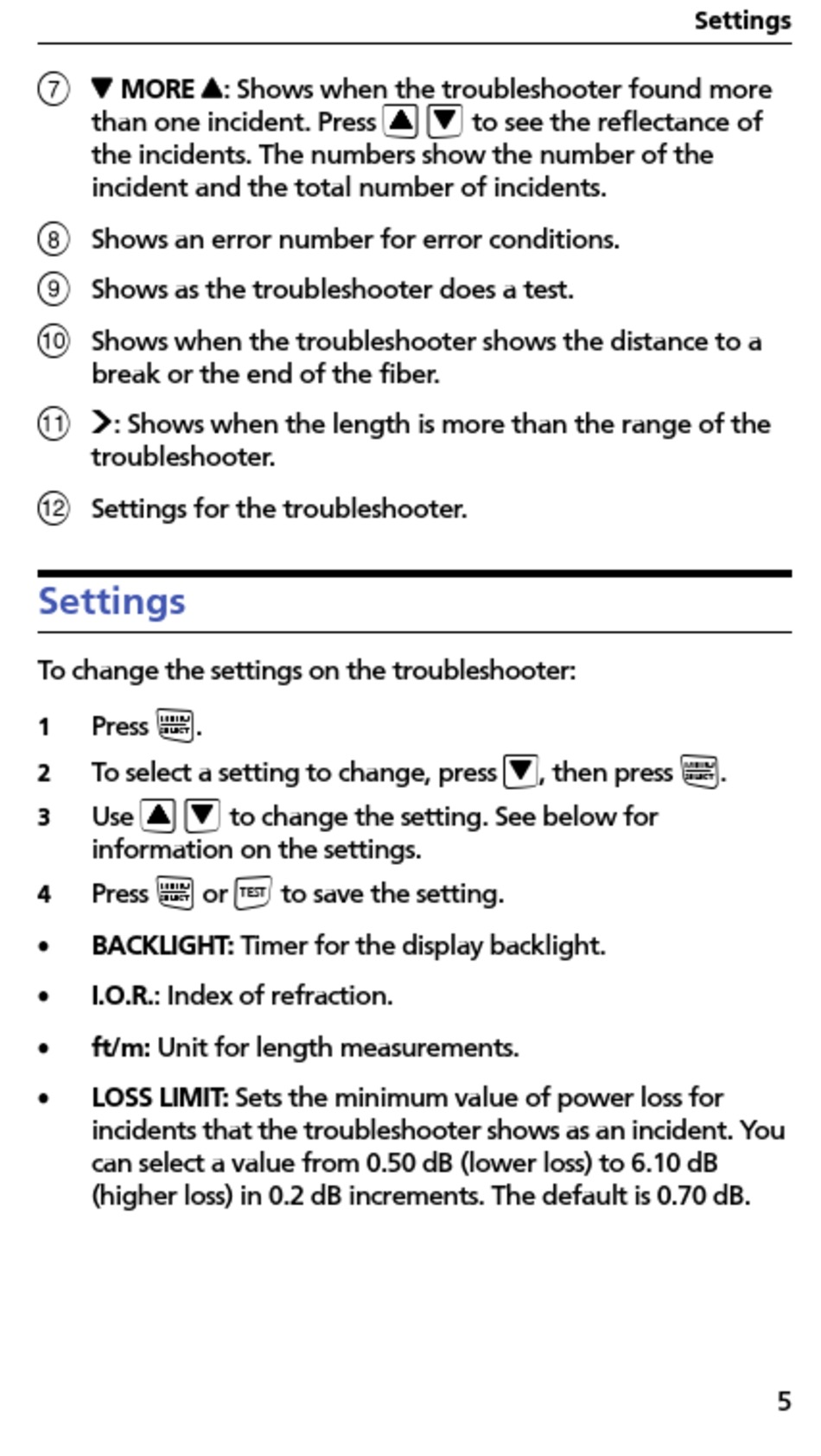

Fluke FIBER QUICKMAP Getting Started Manual page 7


 MORE : Shows when the troubleshooter found more
than one incident. Press
the incidents. The numbers show the number of the
incident and the total number of incidents.

Shows an error number for error conditions.

Shows as the troubleshooter does a test.

Shows when the troubleshooter shows the distance to a
break or the end of the fiber.
 
: Shows when the length is more than the range of the
troubleshooter.

Settings for the troubleshooter.
Settings
To change the settings on the troubleshooter:

Press
1
To select a setting to change, press
2
 
Use
3
information on the settings.

Press
4
•
BACKLIGHT: Timer for the display backlight.
•
I.O.R.: Index of refraction.
•
ft/m: Unit for length measurements.
•
LOSS LIMIT: Sets the minimum value of power loss for
incidents that the troubleshooter shows as an incident. You
can select a value from 0.50 dB (lower loss) to 6.10 dB
(higher loss) in 0.2 dB increments. The default is 0.70 dB.
.
to change the setting. See below for

or to save the setting.
 
to see the reflectance of
 
, then press
Settings
.
5
