Fluke FIBER QUICKMAP Getting Started Manual page 12

FIBER Q M
UICK
10
Getting Started Guide
AP
Blinking
The length of the receive
fiber is 105 m. Typically, the
reflectance of the end of a
fiber is higher than the limit.
Blinking
The end of the link. The loss of
this connection is higher than
the limit. The length of the link
(without the launch fiber) is
360.8 m.
Blinking
A bad splice on the fiber at 92.7 m
caused a loss incident that is
higher than the limit.
The reflectance of the first
connection is -48 dB. The
length of the launch fiber is
105 m.

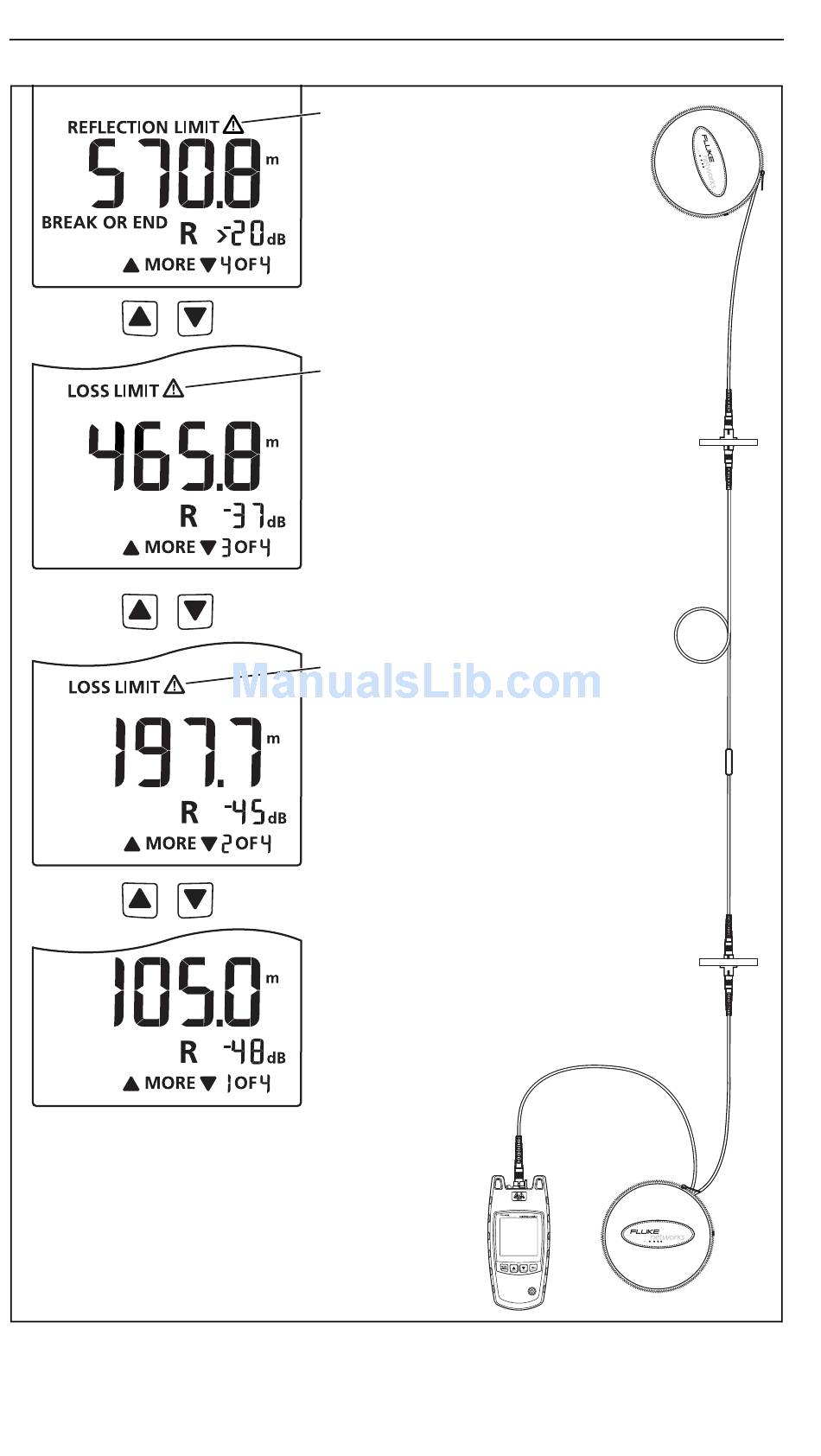

Examples of Results
gbw02.eps
