3.6 Additional conventional I/O interface (parallel interface)

If the actuator is equipped with a conventional I/O interface in parallel to the PROFIBUS
connection, there is a separate intermediate connector housing mounted between the compact
plug cover and the actuator housing. By means of this, additional wiring space and additional
available cable entries are given. Separate connectors for the conventional input and output
signals according to the wiring diagram are mounted on an additional PCB.

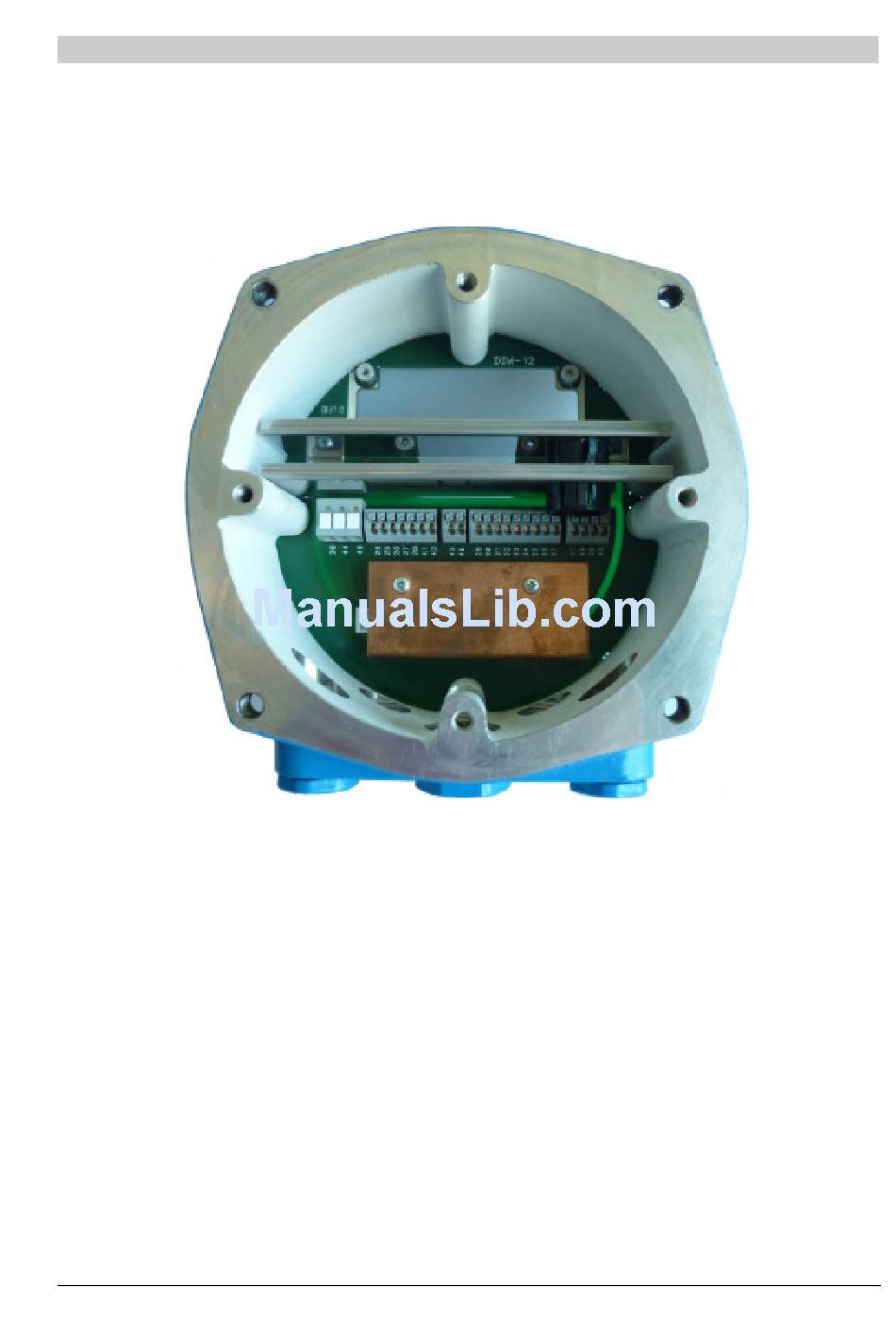

Picture: Intermediate connector housing with the integrated PCB connector board for the
conventional I/O signals
The mains power connector in those applications is no longer mounted inside the compact plug
cover. Instead it is mounted on the connector board for the conventional I/O signals inside the
intermediate connector housing.
The PROFIBUS signals are wired from the actuator housing side towards the compact plug cover
side through the intermediate housing via an additional D-Sub connector cable.
