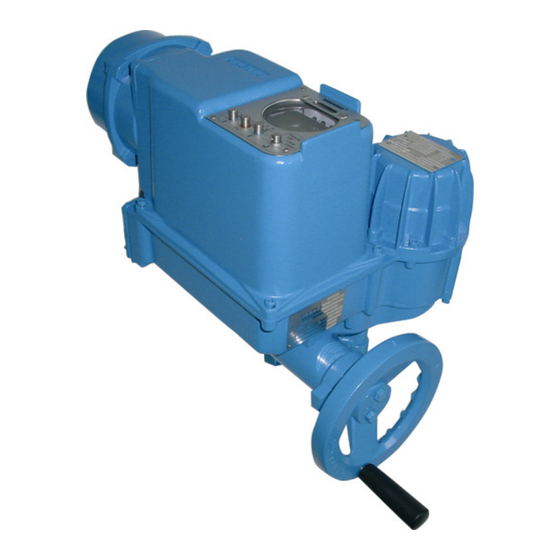

DREHMO
Matic C and i–matic
Supplementary instruction manual:
USB-adaptor kit for actuators with integrated control unit
Remark
This instruction manual has to be kept for further use.
DREHMO
Instruction manual for USB adaptor kit
Part number: 187619
Revision:
1.1
Date:
02.03.2018
page 1 of 20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Matic C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Drehmo Matic C

Summary of Contents for Drehmo Matic C

  • Page 1     DREHMO Matic C and i–matic Supplementary instruction manual: USB-adaptor kit for actuators with integrated control unit Part number: 187619 Revision: Date: 02.03.2018 Remark This instruction manual has to be kept for further use.  DREHMO Instruction manual for USB adaptor kit...

  • Page 2: Table Of Contents

    Driver installation under Windows XP ................ 6 Connectivity ........................11 SER01 adaptor ......................11 3.1.1 Connection on Matic C base plate DMC - 02 (since HW Rev. 5) ..... 11 3.1.2 Connection on Matic C interface unit DMC - 14 (Profibus DP-V1) ....12 3.1.3 Connection on i-matic interface unit DiM - 09 (DeviceNet) .......

  • Page 3: General

    +49 2762 9850-210 1.2 Validity The usage of the described USB adaptor kit is only valid in combination with the DREHMO specific electrical units as described in detail in the following sections. The adaptors offer a mean to establish a serial connection between a PC with USB interface and various intelligent electronic units.

  • Page 4: Delivery Content

    Serial communication is supported on the PC side by means of separate software. Available are the software tools i-matic Explorer and Matic C Operator. The corresponding user manuals have to be observed. 1.2.2 Delivery content The adaptor kit comprises an USB cable with a DREHMO specific programmed USB-serial converter and three different adaptor units SER01, SER02, SER03.
  • Page 5 The following table gives a reference overview for the adapter usage in combination with the various electronic units. Adaptor unit unit unit PC-Tool chapter reference function connector SER01 DMC - 02.x Matic C Matic C 3.1.1 from revision 5 base plate (lower side) Operator DMC - 14 Matic C TEST Matic C 3.1.2...

  • Page 6: Driver Installation

    2.1 Driver installation under Windows XP The usage of the adaptors by means of a PC with operating system Windows XP requires the installation of DREHMO specific drivers. These drivers can be downloaded from the companys web site www.drehmo.com. This chapter shows the user of the adaptor kit how the installation procedure of the required...
  • Page 7 Select "Install from a list or specific location (Advanced)" as shown below and then click "Next".  DREHMO Instruction manual for USB adaptor kit page 7 of 20...
  • Page 8 Click on "Continue Anyway" to continue with the installation. If Windows XP is configured to ignore file signature warnings, no message will appear.  DREHMO Instruction manual for USB adaptor kit page 8 of 20...
  • Page 9 Windows should then display a message indicating that the installation was successful. Click "Finish" to complete the installation. The serial converter driver is now installed. In order to enable the Drehmo components to communicate with the converter the COM port emulation driver must be installed.
  • Page 10 Open the Device Manager (located in "Control Panel\System" then select the "Hardware" tab and click "Device Manger") and select "View > Devices by Type". The device appears as an additional COM port with the label "Drehmo USB – TTL Converter". ...

  • Page 11: Connectivity

    By means of an integrated push button, a reset of the attached electronic unit can be forced. 3.1.1 Connection on Matic C base plate DMC - 02 (since HW Rev. 5) The following pictures show the position of the interface connector for the SER01 adaptor on the DMC - 02 unit - available for hardware revision 5 or higher.

  • Page 12: Connection On Matic C Interface Unit Dmc - 14 (Profibus Dp-V1)

    3.1.2 Connection on Matic C interface unit DMC - 14 (Profibus DP-V1) The following picture shows the position of the interface connector for the SER01 adaptor on the DMC - 14 unit. 3.1.3 Connection on i-matic interface unit DiM - 09 (DeviceNet) The following picture shows the position of the interface connector for the SER01 adaptor on the DiM - 09 unit.

  • Page 13: Connection On Matic C Display Unit Dmc - 30 (Lcd Display Unit)

    3.1.4 Connection on Matic C display unit DMC - 30 (LCD display unit) The following pictures show the position of the interface connector for the SER01 adaptor on the DMC - 30 unit. 3.1.5 Connection on i-matic unit DiM - 24 (accumulator unit) The following pictures show the position of the interface connector for the SER01 adaptor on the DiM - 24 unit.

  • Page 14: Ser02 Adaptor

    DiM - 02 unit. The correct plug in polarity of the adaptor is only given, if the expanded finger like board outline fits aside the display board edge.  DREHMO Instruction manual for USB adaptor kit page 14 of 20...

  • Page 15: Connection On I-Matic Display Unit Dim - 22 (Bluetooth)

    LCD panel on the electronic board edge. The expanded finger like adapter outline protects against an unintended reverse polarity. The adaptor has to be easily plugged in with a plug in depth of about 6mm.  DREHMO Instruction manual for USB adaptor kit page 15 of 20...

  • Page 16: Ser03 Adaptor

    A mismatch of polarity may result in a defect of the adaptor and the base plate!  DREHMO Instruction manual for USB adaptor kit page 16 of 20...

  • Page 17: Connection On Matic C Base Plate Dmc - 02

    3.3.1 Connection on Matic C base plate DMC - 02 The following picture shows the position of the interface connector for the SER03 adaptor on the DMC - 02 unit in version DMC – 02.7. The adaptor has to be connected as shown in the following pictures for DMC – 02.8 ...

  • Page 18: Ser04 Adaptor

    3.4.1 Connection on i-matic interface unit DiM - 17 (modbus loop) The following picture shows the position of the interface connector for the SER04 adaptor on the DiM - 17 unit.  DREHMO Instruction manual for USB adaptor kit page 18 of 20...
  • Page 19  DREHMO Instruction manual for USB adaptor kit page 19 of 20...
  • Page 20 Product range of electric actuators with integrated control unit Actuators of type Actuators of type Matic C: i-matic: Multiturn actuators DMC30-DMC1000 Multiturn actuators DiM30-DiM1000 max. 1000 Nm max. 1000 Nm Part-turn actuators DPMC30-DPMC1599 Part-turn actuators DPiM30-DPiM1599 max. 1600 Nm max. 1600 Nm...
