Safety Information
Important - Please read these instructions fully before operating or maintaining

Maintenance and Storage

a) Maintain tools with care. Keep tools clean and in good condition for better and safer
performance. Follow the instructions for maintenance and changing accessories. Keep handles
and switches dry, clean and free from oil and grease.
b) Be careful in handling the tool. Keep the cutting blades sharp and clean to improve its
working safety and effectiveness.
c) Store idle power tools out of the reach of children and do not allow people unfamiliar
with the power tool or these instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.

Service

a) Have your tool repaired by an authorised service agent. This tool is manufactured in
accordance with the relevant safety regulations. To avoid danger, electrical appliances must only
be repaired by qualified technicians.
Customer Helpline 0845 034 2279
8
www.gardenservicecentre.co.uk

Preparing to Operate the Cylinder Mower

Preparing to operate the electric cylinder mower
WARNING ! Always wear safety gloves when doing any work on the electric cylinder mower.
WARNING ! Always unplug the power cord from the power source before doing any work on the
electric cylinder mower.

Step 1 Adjusting the cutting height

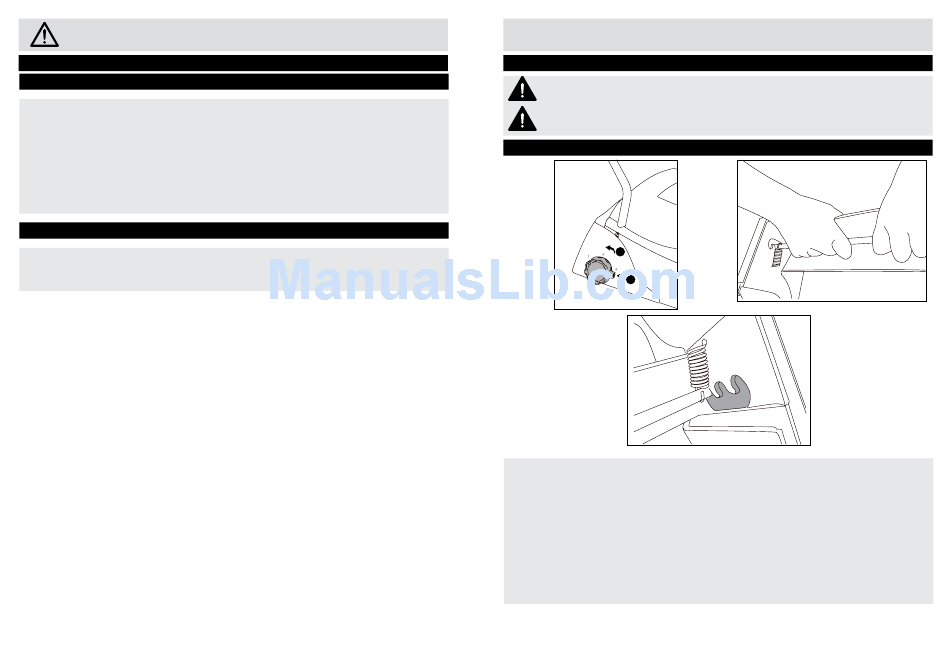

Fig. A
II
I
Fig. C
This Cylinder mower can be set to 3 positions of cutting height.
A. Firstly adjust the rear roller of mower (Fig. A)
1. Firstly press the knob (I) on the left side of roller then rotate it (II direction) to the positon you
want to set.
2. Do the same on the other side.
Note! The support roller must be parallel to the hand-operated lawn cylinder. The bolts
mechanism on two sides have to be set at same height.
B. Adjust the front wheel of mower (Fig. B, C)
3. Pull the shaft with handle out of the slot, then slide it into the position you want. Make sure the
end of shafts are in the same height of slots.
