SPP53
Instruction Manual
IMPORTANT! Please read these instructions fully before starting assembly.
These instructions contain important information that will help you get the best
from your product, ensuring it is assembled correctly and safely. If you need help
or have damaged or missing parts, call the Customer Helpline on 01904 727 500.

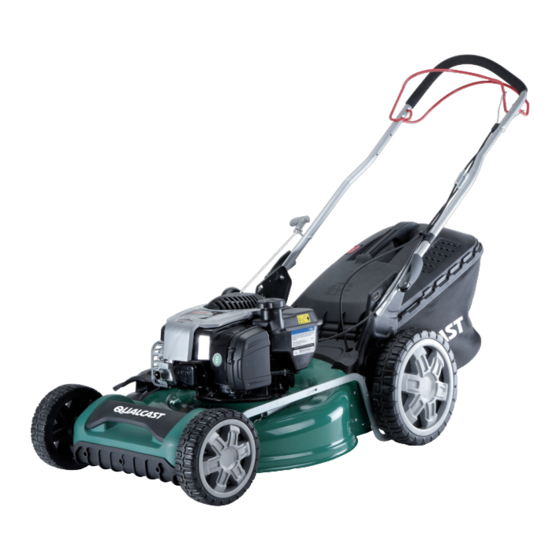

53cm 150cc Push
Petrol Rotary Lawn Mower
484348
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Qualcast QSPP53
Summary of Contents for Qualcast QSPP53

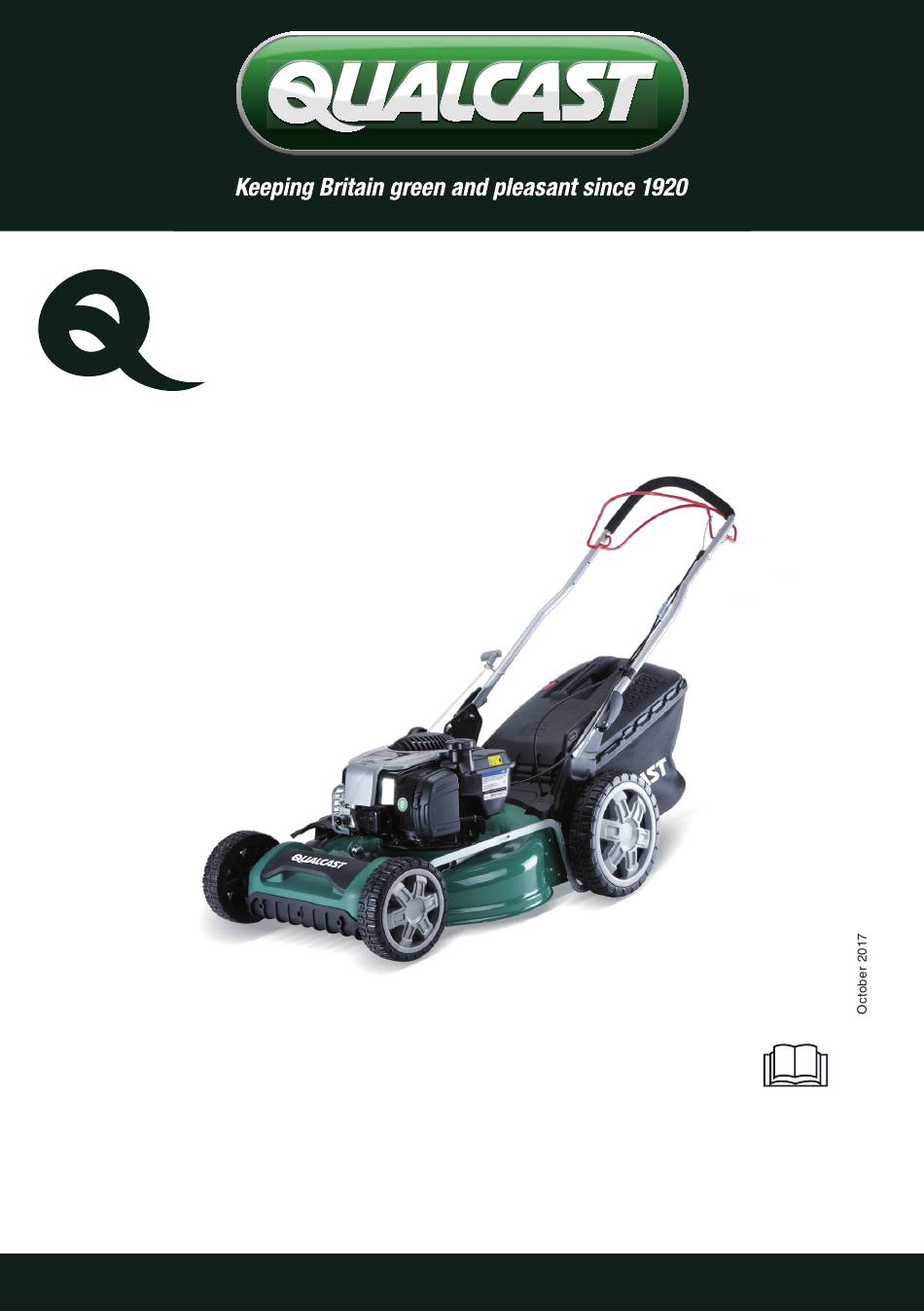

- Page 1 SPP53 53cm 150cc Push Petrol Rotary Lawn Mower 484348 Instruction Manual IMPORTANT! Please read these instructions fully before starting assembly. These instructions contain important information that will help you get the best from your product, ensuring it is assembled correctly and safely. If you need help or have damaged or missing parts, call the Customer Helpline on 01904 727 500.
-
Page 2: Table Of Contents
General Safety Warnings Contents General safety warnings Safety Warnings Intended use WARNING! Read all safety warnings and Warning symbols instructions. In the box Failure to follow the warnings and instructions may Assemble the lawn mower result in electric shock, fire and/or serious injury. Preparing to operate the lawn mower WARNING! Read all safety warnings and Operation... - Page 3 a) Refuel outdoors only and do not smoke while General safety refuelling. • Keep this operating and maintenance manual in a safe b) Add fuel before starting the engine. Never remove place for reference at a later date. the cap of the fuel tank or add petrol while the engine is •...
- Page 4 b) Before checking, cleaning or working on the lawn • Exercise extreme caution when changing direction mower. on slopes. c) After striking a foreign object, inspect the lawn mower • Do not mow excessively steep slopes. for damage and make repairs before restarting and •...
-
Page 5: Intended Use
Intended Use Add engine oil. This mower is designed for domestic lawn mowing only. Use in any other way is considered Only refuel with unleaded petrol. contrary to the intended use. Compliance with the operation, service and repair, as specified in this handbook, also constitutes essential elements of the intended use. Warning Symbols Hot surfaces will burn the hands! Please read all of the safety and operating instructions carefully before using this... -
Page 6: In The Box
In The Box Assemble The Lawn Mower WARNING! Parts Always take care when removing the packaging, to prevent damage to you or to the lawn mower. Main mower deck (with handle attached) This item requires a two-person lift to remove it from the packaging. Make sure Grass collection bag that you have sufficient space to put the lawn mower down. - Page 7 Hook the cord Pull the on/off lever and gently pull the rope. Hook it around the guide rope. Grass bag assembly IMPORTANT! Make sure the grass collection bag is in place before starting the engine. Attach the grass bag to the frame by fixing all the plastic hooks. Attach the cable clips Ensure that the cable clips supplied are used to fix the cable to the handle.
-
Page 8: Preparing To Operate The Lawn Mower
Preparing to Operate The Lawn Mower Filling with engine fuel WARNING! Filling with engine oil Refuel in a well-ventilated area with the engine stopped. Do not smoke or allow flames or sparks in the area where the engine is refueled or where petrol is IMPORTANT! stored. -
Page 9: Operation
Operation Starting the engine WARNING! Setting the cutting height Do not operate the machine in enclosed or poorly-ventilated areas, as the exhaust gas contains toxic substances. Keep hands, feet, hair and clothing WARNING! away from all the moving parts of the machine. The exhaust and other parts of the machine will become hot during use. - Page 10 Step 4 - To stop, release the stop/start bar Emptying the grass collection bag Failure to start Raise the discharge flap with one hand and remove the grass bag using its handle with your other hand. To maintain safety, the discharge flap will close back to cover the If the engine won’t start after you have operated the starter several times, the engine may be flooded with excess fuel.
-
Page 11: Maintenance And Storage
Maintenance and Storage Mowing with the side discharge When using the side discharge to throw grass, you first need to remove the grass collection bag and insert the mulching plug. Follow the steps below to assemble the side discharge Storing the lawn mower for short periods chute: After mowing, please follow the actions below prior to placing the lawn mower in storage: Push the lock button with one hand;... - Page 12 This mower can be stored vertically to save space: Preparing to re-use the mower Fold the handle, and fix the quick clamp tightly. Check the oil level before starting the engine to ensure there is sufficient oil, see page 14. Set the cutting height to the top 3 working heights.
- Page 13 Cleaning or replacing the air filter Adding the oil Refill with SAE 30 oil or equivalent, i.e. SAE 5W/30, SAE 10W/30). When the dipstick is WARNING! rested on the filler pipe, the oil level must be between the min. and max. marks on the dipstick.
-
Page 14: Troubleshooting
Check the washer is still slightly domed to keep the pressure on the bolt and stop it Troubleshooting unwinding, keeping the blade firmly secure. Then replace the washer (right way around!) and bolts. WARNING! Make sure the blade is correctly located, and then firmly tighten the bolt. Do not over Always switch off the engine and pull the ignition cable before starting any tighten. -
Page 15: Technical Data
Technical Data Disposal The lawn mower and its accessories are made of various recyclable materials. Dispose of Property Value the lawn mower in accordance with your local recycling regulations. Engine type Single cylinder 4-stroke Engine displacement 150cm Getting Help Engine power 2.2kW/ 2900/min Max.
