Ruckus Wireless Unleashed R600 Quick Setup Manual

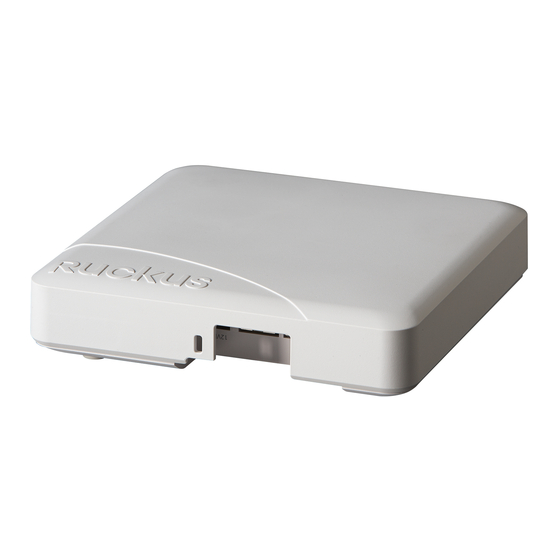

Unleashed R600 Access Point
TM

Quick Setup Guide

This Quick Setup Guide provides step-by-step instructions on how
to set up your Ruckus Wireless Unleashed R600 Dual Band
802.11ac WiFi Access Point. After completing the steps described
in this Guide, the Unleashed Master Access Point (Master AP) will
be created. Additional Unleashed access points can be added to
the network for additional coverage and capacity.
Before You Begin
Before deploying Ruckus Wireless products, please check for the
latest software and release documentation.
• User Guides and Release Notes are available at
http://support.ruckuswireless.com/documents.
• Product Limited Warranty documents are available at
http://support.ruckuswireless.com/warranty.
• Online Training Resources are available at
https://training.ruckuswireless.com
Package Contents
• Unleashed R600 Access Point
• One wall-mount anchor kit, including two 1" No. 8 steel
panhead Phillips sheet metal screws, one 5mm M2.5 x 1.06
Torx security screw, and wall-mount anchors
• One external T-bar bracket (two unassembled parts)
• One unit removal pin
• Regulatory flyer
• Product warranty statement
• Declaration of Conformity, if required
• This Quick Setup Guide
Copyright © 2016 Ruckus Wireless, Inc.
Published September 2016, Part Number 800-70633-002 Rev D
Step 1: Collect Tools and Setup Requirements
Make sure that you have the following setup requirements:
• A PC/Mac/mobile client with a WiFi network adapter and a web
browser
• One Cat 5e Ethernet cable
• Network switch or router, with Internet connectivity
• An AC power adapter (sold separately), or
• An 802.3af or 802.3at -compliant Power over Ethernet (PoE)
switch or PoE injector
• No. 2 Phillips screwdriver and T8 Torx driver for wall mounting
anchor kit
• When mounting the Unleashed R600 to a truss or pole, two
customer-supplied cable ties
Step 2: Connect the AP to Power and Your Network

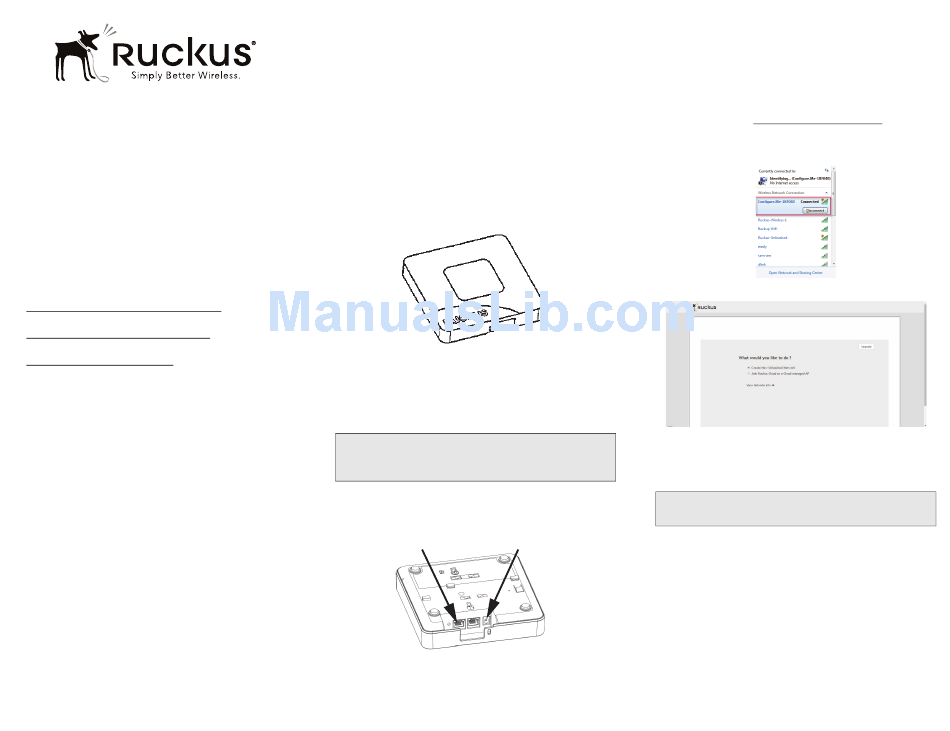

Figure 1. : Top view
After removing your Unleashed AP from its package, connect it
1
to your network switch or router using an Ethernet cable.
2 Using an AC adapter (sold separately), connect the AP 12VDC
port to a protected power source.
• Alternatively, connect the PoE port to a PoE injector or PoE
switch for both power and network connections.
Note: If you will be using PoE, then you will need a Cat
5e (or better) Ethernet cable to connect the AP to the
PoE injector or switch.
Verify that the Power LED on the external enclosure is a steady
3
green.
Figure 2. : Bottom view
PoE Port 12VDC Port
Step 3: Log In and Run the Setup Wizard
As soon as the Unleashed AP is powered on and connected to
1
the local network, it boots up and begins broadcasting a
temporary unencrypted WLAN named "Configure.Me-[xxxxxx]"
from the 2.4 GHz radio only.
Using your client's WiFi configuration settings, select and
2
associate to the "Configure.Me-[xxxxxx]" WLAN.
3 Launch a web browser and enter the following into the
browser's URL bar: unleashed.ruckuswireless.com, and press
Enter
.
Figure 3. Connect to the "ConfigureMe" WLAN
\
Figure 4. : Select Create New Unleashed Network
Create New Unleashed Network
4 Select
Start
to begin.
5 The "Configuring Unleashed Master" progress screen displays
the progress. Wait until the initialization process completes.
.
Note: Do NOT disconnect the power or network cable
from the device during the setup process.
Once initialization is complete, ensure that you are still
6
connected to the "Configure.Me" WLAN, and click
7 You will be redirected to the Setup Wizard. Complete the steps
Finish
in the Setup Wizard and click
, and click
Next
.
.
Page 1 of 4
