Emerson Rosemount 3300 Quick Start Manual

Level transmitter guided wave radar
Hide thumbs Also See for Rosemount 3300:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Reference Manual, Quick Start Manual
Quick Start Guide
00825-0100-4811, Rev JB
May 2017
™
Rosemount
3300 Level Transmitter
Guided Wave Radar

Advertisement

Table of Contents
loading

Related Manuals for Emerson Rosemount 3300

Summary of Contents for Emerson Rosemount 3300

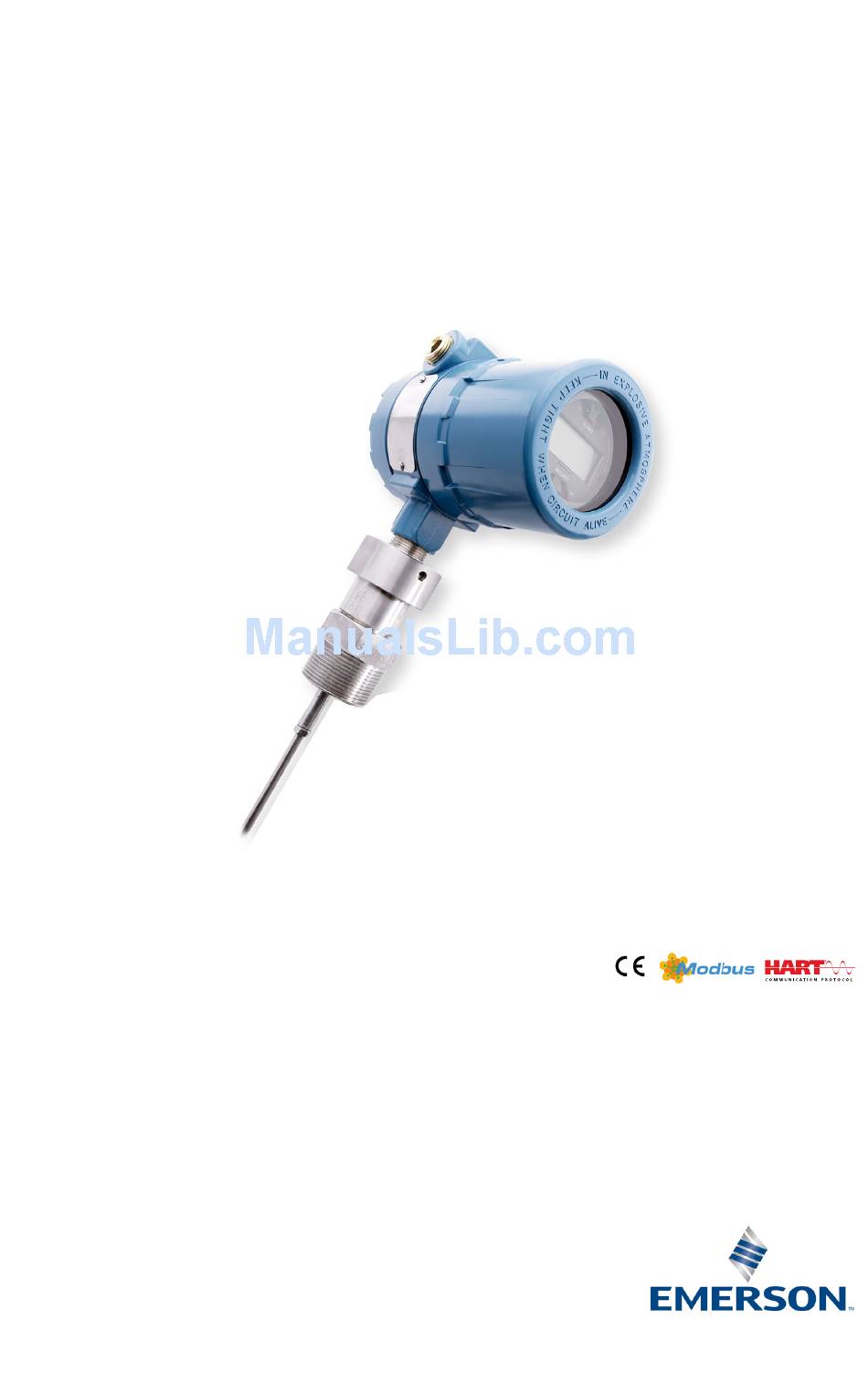

  • Page 1 Quick Start Guide 00825-0100-4811, Rev JB May 2017 ™ Rosemount 3300 Level Transmitter Guided Wave Radar...

  • Page 2: Table Of Contents

     Make sure the main power to the Rosemount 3300 Level Transmitter is off and the lines to any other external power source are disconnected or not powered while wiring the transmitter. Temperature restrictions apply for Explosion-proof versions. For limits, see certificate-specific information in the Product Certification chapter in this document.
  • Page 3 Quick Start Guide May 2017 The electronics enclosures are category 2G or 2D equipment. The probes not covered with plastic and not made of titanium, are category 1G or 1D. The plastic covered probes or probes made of titanium, are only category 1G equipment.

  • Page 4: Mount The Transmitter Head/Probe

    May 2017 Quick Start Guide Mount the transmitter head/probe Tank connection with flange Figure 1. Tank Connection with Flange A. Transmitter housing E. Gasket B. Nut F. Flange C. Bolt G. Tank Flange D. Probe 1. Place a gasket on top of the tank flange. 2.
  • Page 5 Quick Start Guide May 2017 Threaded tank connection Figure 2. Threaded Tank Connection A. Nut D. Sealant on threads (NPT) or Gasket (BSP/G) B. Adapter C. Probe E. Tank flange/Process connection 1. For adapters with BSP/G threads, place a gasket on top of the tank flange. 2.
  • Page 6 May 2017 Quick Start Guide Tri Clamp tank connection Figure 3. Tri Clamp Tank Connection A. Probe D. Clamp B. Tank E. Gasket C. Tri Clamp 1. Place a gasket on top of the tank flange. 2. With the transmitter still attached, lower the probe into the tank. 3.

  • Page 7: Bracket Mounting

    Quick Start Guide May 2017 Bracket mounting 1. Mount the bracket to the wall/pipe with screws suitable for the purpose. On pipe Horizontal pipe Vertical pipe On wall Use screws suitable for the purpose. 2. Mount the transmitter with probe to the bracket and secure with the three supplied screws.
  • Page 8 May 2017 Quick Start Guide Remote housing 1. Remove the transmitter head from the probe by unscrewing the M50 nut. M50 nut 2. Mount the probe in the tank by following the previous instructions in section “Mount the transmitter head/probe” on page 3.
  • Page 9 5. Fasten the housing support to the bracket using the M6 screws. M6 screw Housing support 6. Connect the transmitter head on the housing support, making sure that the M50 nut is properly tightened. See the Rosemount 3300 Level Transmitter Reference Manual for more installation details.

  • Page 10: Set Jumpers And Switches

    May 2017 Quick Start Guide Set jumpers and switches If alarm and security jumpers are not set, the transmitter operates with the default alarm condition HIGH and Security OFF. Write Protection must be set after configuration (“Configure” on page 15). To set Alarm and Write Protection on the circuit board: 1.

  • Page 11: Connect The Wiring

    Quick Start Guide May 2017 Connect the wiring For HART, the input voltage is 11-42 V (11-30 V in IS applications, 16-42 V in ® Explosion-proof / Flameproof applications). For Modbus , the input voltage is 8-30 V. The transmitter requires shielded twisted pair wiring (18-12 AWG) suitable for the supply voltage and, if applicable, approved for use in hazardous areas.
  • Page 12 B. Field Communicator F. PC C. Load Resistance 250  G. Maximum voltage: U =250 V D. Power supply H. HART: U =42.4 V Note Rosemount 3300 Level Transmitters with Flameproof/Explosion-proof HART Output have a built-in barrier; no external barrier needed.
  • Page 13 H. If the unit is the last transmitter on the bus, a 120 termination resistor is required. D. Power supply E. RS485 Bus Note Rosemount 3300 Level Transmitters with Flameproof/Explosion-proof Modbus Output have a built-in barrier; no external barrier needed.
  • Page 14 May 2017 Quick Start Guide Load limitations The Field Communicator requires a minimum load resistance of 250  within the loop in order to function properly. For maximum load resistance, see Figure Figure 8. Maximum Loop Resistance Non-Hazardous Installations, Explosion-proof/Flameproof and Type n Approvals: Non-Sparking / Energy (Ex d and tb) Installations Limited Power Supply...

  • Page 15: Configure

    If the transmitter is pre-configured at the factory, this section is only necessary to change or verify the settings. Configuration of the Rosemount 3300 Level Transmitter can be done either with a Field Communicator, the AMS Device Manager, or Radar Configuration Tools (RCT).
  • Page 16 May 2017 Quick Start Guide Configuration of a Rosemount 3300 Level Transmitter can be done using the installation Wizard for detailed guidance. If you are already familiar with the configuration procedure, or if you want to change settings, you may use the setup function.
  • Page 17 More variables can be assigned if the superimposed digital HART signal or a ™ HART Tri-loop is used. Setup - Modbus Communication Parameters If the transmitter has the Modbus option, configuration of the communication parameters can be set. 1. See the Rosemount 3300 Level Transmitter Reference Manual.
  • Page 18 Additional configuration to fine-tune performance To fine-tune the transmitter’s performance, it is recommended the Trim Near Zone function be executed after configuration is finished. For detailed information on how to trim the near zone, see the Rosemount 3300 Level Transmitter Reference...

  • Page 19: Environmental Conditions

    Product certifications page Process temperature restrictions When the Rosemount 3300 is installed in high temperature applications, it is important that the maximum ambient temperature is considered. Tank insulation should not exceed 4 in. (10 cm). The diagram below shows the maximum ambient temperature vs.

  • Page 20: Product Certifications

    A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU Declaration of Conformity can be found at Emerson.com/Rosemount. Ordinary Location Certification As standard, the transmitter has been examined and tested to determine that...
  • Page 21 Quick Start Guide May 2017 Specific Conditions for Safe Use (X): 1. Potential Electrostatic Charging Hazard – The enclosure contains non-metallic material. To prevent the risk for electrostatic sparking the plastic surface should only be cleaned with a damp cloth. 2.
  • Page 22 May 2017 Quick Start Guide shall be installed in such a way that the risk from the electrostatic discharges and propagating brush discharges caused by rapid flow of dust at the label is avoided. 3. For probes and flanges containing light metals, an ignition hazard due to impact or friction needs to be avoided according to EN 60079-0 clause 8.3 when used as Category 1/2 G equipment.
  • Page 23 Quick Start Guide May 2017 International E7 IECEx Flameproof Certificate: IECEx DEK 12.0015X Standards: IEC 60079-0:2011, IEC 60079-1:2014, IEC 60079-11:2011; IEC 60079-26:2014, IEC 60079-31:2013 Markings: Ex db [ia Ga] IIC T6…T1 Ga/Gb Ex tb [ia Da] IIIC T85 °C…T450 °C Da/Db Ex tb IIIC T85 °C…T135 °C Db Ambient temperature range: -50 °C to +75 °C...
  • Page 24 May 2017 Quick Start Guide Entity parameters 30 V 130 mA 0 nF 0 mH N7 IECEx Type N: Non-sparking/Intrinsic Safety Certificate: IECEx BAS 12.0061X Standards: IEC 60079-0:2011, IEC 60079-11:2011, IEC 60079-15:2010 Markings: Ex ic nA IIC T4 Gc (-50°C  Ta  +70°C), Um = 254 V Specific Conditions for Safe Use (X): 1.
  • Page 25 Quick Start Guide May 2017 Markings: Ex d [ia Ga] IIC T6-T1 Gb, Ex iaD tD 20/A21 IP6X T85°C T450°C, Ex tD A21 IP6X T85°C T135°C Specific Conditions for Safe Use (X): 1. See certificate for Specific Conditions. I3 China Intrinsic Safety Certificate: GYJ16.1336X Standards: GB 3836.1-2010, GB 3836.4-2010, GB 3836.20-2010 Markings: Ex ia IIC T4 (-50°C ...
  • Page 26 May 2017 Quick Start Guide Specific Conditions for Safe Use (X): 1. See certificate for Specific Conditions. E4 Flameproof without display Certificate: TC 18545 Markings: Ex d [ia] IIB T6 Ex ia IIB T6 Specific Conditions for Safe Use (X): 1.
  • Page 27 Quick Start Guide May 2017 7.15 Additional Certifications Ü1 Overfill prevention Certificate: Z-65.16-416 Application: TÜV tested and approved by DIBt for overfill prevention according to the German WHG regulations. 7.16 Pattern Approval GOST Belarus Certificate: RB-03 07 2765 10 GOST Kazakhstan Certificate: KZ.02.02.03473-2013 GOST Russia Certificate: SE.C.29.010.A...
  • Page 28 May 2017 Quick Start Guide Table 2. Thread Adapter Thread Sizes Male thread Identification mark M20 x 1.5 –6g ½ - 14 NPT ½ - 14 NPT ¾ - 14 NPT ¾ - 14 NPT Female thread Identification mark M20 x 1.5 –6H ½...

  • Page 29: Eu Declaration Of Conformity

    No: 3300 Rosemount Tank Radar AB Layoutvägen 1 S-435 33 MÖLNLYCKE Sweden declare under our sole responsibility that the product, Rosemount 3300 Series Guided Wave Radar Level and Interface Transmitter manufactured by, Rosemount Tank Radar AB Layoutvägen 1 S-435 33 MÖLNLYCKE...
  • Page 30 May 2017 Quick Start Guide Schedule No: 3300 EMC Directive (2014/30/EU) EN 61326-1:2013 ATEX Directive (2014/34/EU) BAS02ATEX1163X Intrinsic Safety Equipment Group II, Category 1 G, Ex ia IIC T4 Ga EN 60079-0:2012 + A11:2013; EN 60079-11:2012 KEMA 01ATEX2220X Flameproof Equipment Group II, Category 1/2 G Ex db [iaGa] IIC T6...T1 Ga/Gb and Equipment Group II, Category 1/2 D Ex tb [ia Da] IIIC T85°C…T450°C Da/Db or Equipment Group II, Category 2 D Ex tb IIIC T85°C…T135°C Db EN 60079-0:2012 + A11:2013;...
  • Page 31 Quick Start Guide May 2017 Schedule No: 3300 ATEX Notified Body for EU Type Examination Certificates and Type Examination Certificates Baseefa [Notified Body Number: 1180] Rockhead Business Park, Staden Lane Buxton, Derbyshire SK17 9RZ United Kingdom DEKRA (formerly KEMA) Quality B.V. [Notified Body Number: 0344] Utrechtsweg 310 6812 AR Arnhem Netherlands...
  • Page 32 May 2017 Quick Start Guide Figure 10. 9150077-944 - System Control Drawing...
  • Page 33 Quick Start Guide May 2017 Figure 11. 9150077-945 Installation Drawing...
  • Page 34 May 2017 Quick Start Guide List of Model Parts with China RoHS Concentration above MCVs 含 含 有 管控物 超 的部件型号列表 China RoHS Hazardous Substances / 有害物 Hexavalent Polybrominated Polybrominated Part Name Lead Mercury Cadmium Chromium biphenyls diphenyl ethers 部件名称 汞...
  • Page 35 Quick Start Guide May 2017...
  • Page 36 Standard Terms and Conditions of Sale can be found on the Terms +65 6777 8211 and Conditions of Sale page. The Emerson logo is a trademark and service mark of Emerson +65 6777 0947 Electric Co. Enquiries@AP.Emerson.com Tri-Loop, Emerson Process Management, Rosemount and...
