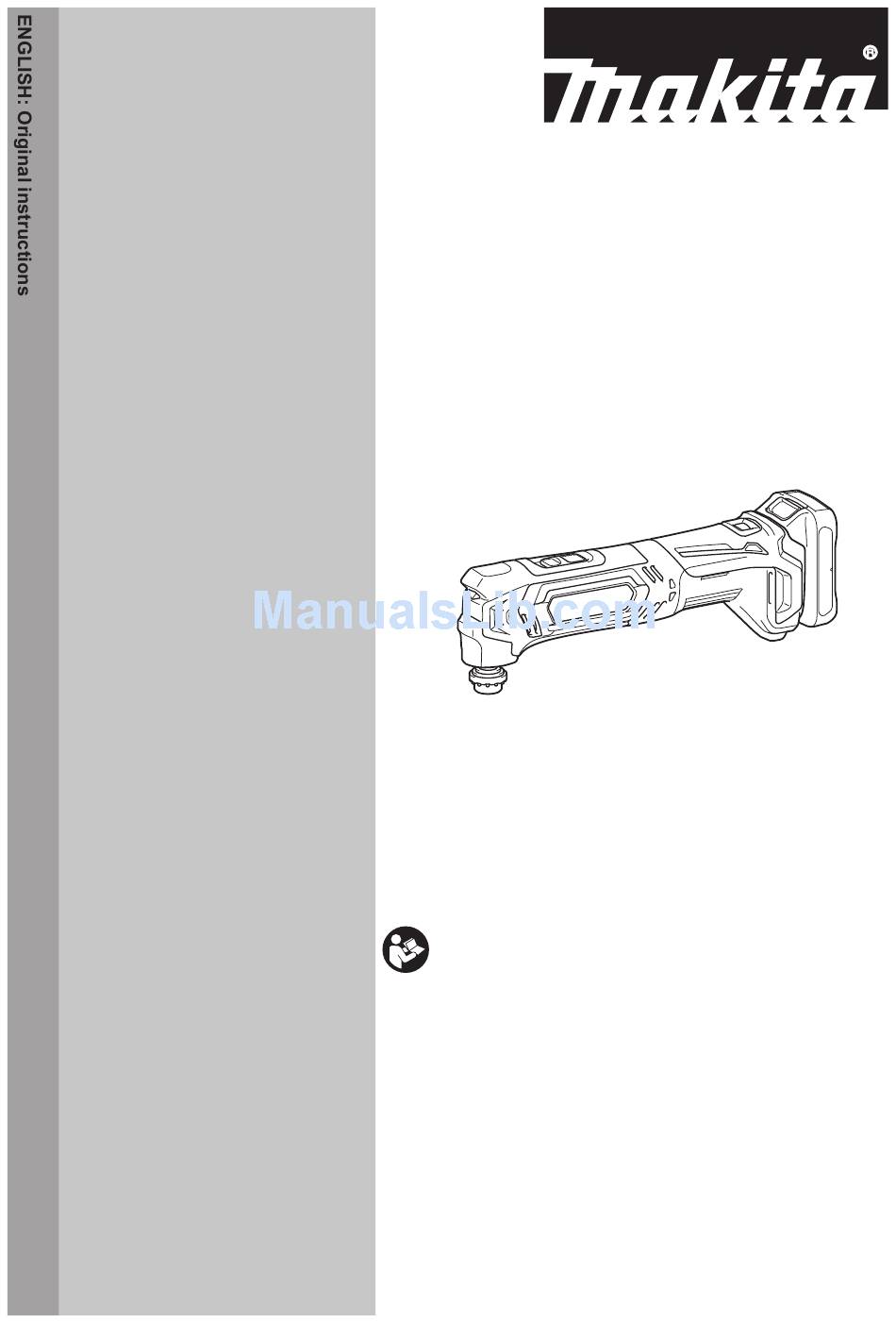

- Page 1 INSTRUCTION MANUAL Cordless Multi Tool TM30D Read before use.
-
Page 2: Specifications
SPECIFICATIONS Model: TM30D Oscillation per minute 6,000 - 20,000 min Oscillation angle, left/right 1.6° (3.2° total) Rated voltage D.C. 10.8 V - 12 V max Battery cartridge BL1016, BL1021B BL1041B Overall length 277 mm 296 mm Net weight without dust extraction 1.1 kg... -
Page 3: Ec Declaration Of Conformity
The technical file in accordance with 2006/42/EC is Do not use a power tool while you are tired or available from: under the influence of drugs, alcohol or med- Makita, Jan-Baptist Vinkstraat 2, 3070, Belgium ication. A moment of inattention while operating 24.9.2015 power tools may result in serious personal injury. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-... - Page 4 Keep cutting tools sharp and clean. Properly Make sure the application tool is not contact- maintained cutting tools with sharp cutting edges ing the workpiece before the switch is turned are less likely to bind and are easier to control. Use the power tool, accessories and tool bits Keep hands away from moving parts.
-
Page 5: Functional Description
Makita warranty for the Makita tool and 27. Always be sure you have a firm footing. Be charger. -
Page 6: Battery Protection System
To install the battery cartridge, align the tongue on the Indicator lamps Remaining battery cartridge with the groove in the housing and slip capacity it into place. Insert it all the way until it locks in place with a little click. If you can see the red indicator on the Lighted upper side of the button, it is not locked completely. -
Page 7: Overload Protection
Adjusting the orbital stroke rate ASSEMBLY CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool. Installing or removing application tool Optional accessory WARNING: Do not install application tool upside down. -
Page 8: Operation
OPERATION WARNING: Before starting the tool and during operation, keep your hand and face away from the application tool. CAUTION: Do not apply excessive load to the tool which may cause a motor lock and stop the tool. CAUTION: Do not operate the tool with press- ing the battery cartridge against the tool. -
Page 9: Maintenance
Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. Fig.13 ► 1 . Dust nozzle 2. Joint 3. Dust attachment 4. Nozzle band 5. Holes in the tool 6. Felt ring 7. Sanding pad 8. Application tool installation bolt Install joint, dust nozzle and dust attachment. -
Page 10: Optional Accessories
OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. If you need any assistance for more details regard- ing these accessories, ask your local Makita Service Center. - Page 12 Makita Jan-Baptist Vinkstraat 2, 3070, Belgium Makita Corporation Anjo, Aichi, Japan 885495B905 www.makita.com 20151217...
