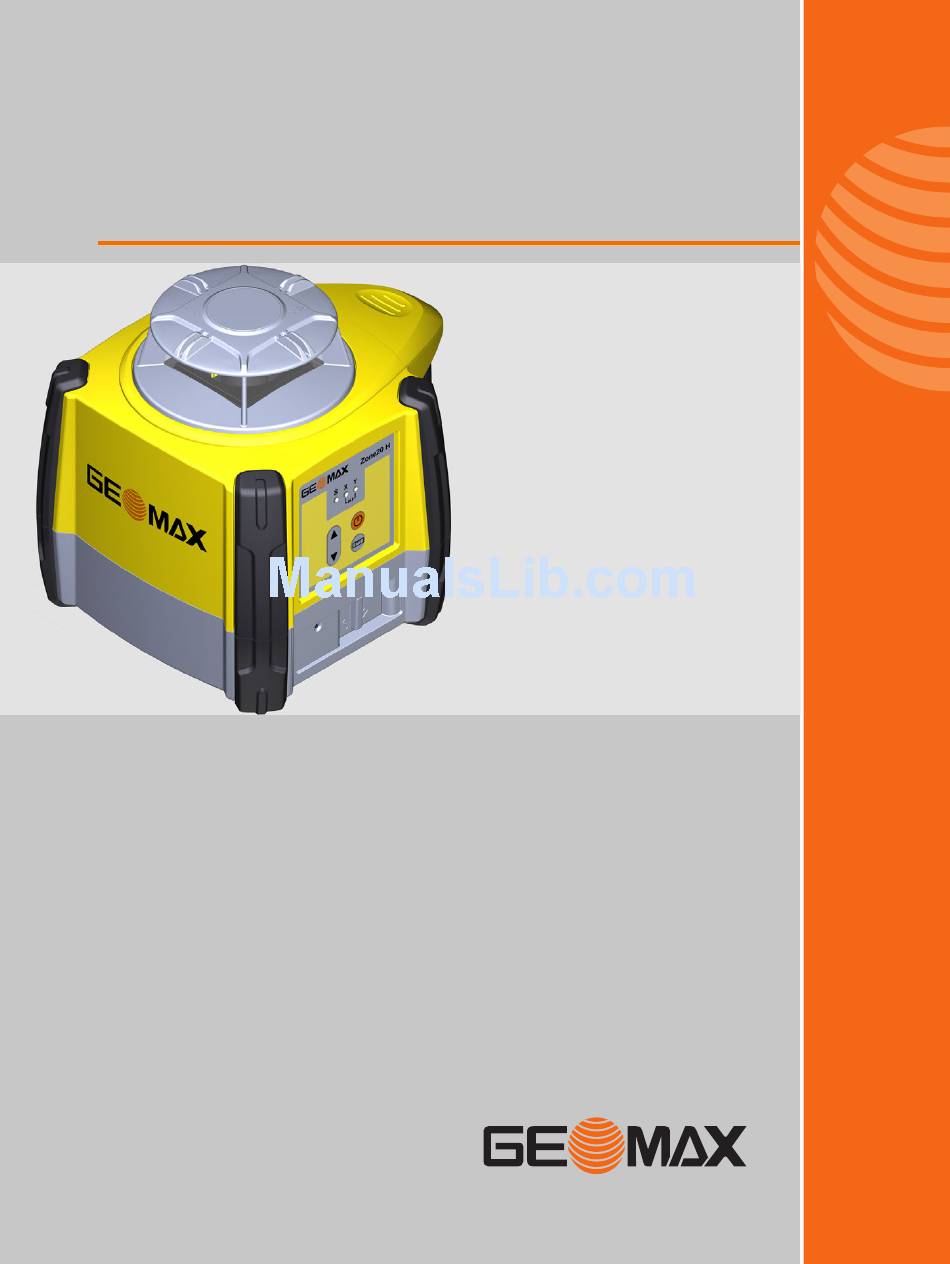

- Page 1 GeoMax Zone20 H User Manual Version 1.0 English...
- Page 2 Read carefully through the User Manual before you switch on the product. Product Identification The type and serial number of your product are indicated on the type plate. Always refer to this information when you need to contact your agency or GeoMax authorised service work- shop. Validity of this manual This manual applies to the Zone20 H lasers.
-
Page 3: Table Of Contents
Description of the System System Components Zone20 H Laser Components Case Components Setup Operation Buttons LED Indicators Turning the Zone20 H on and off Automatic Mode Manual Mode Elevation Alert (H.I.) Function Receivers ZRB35 Receiver ZRP105 Receiver ZRD105, Digital Receiver... -
Page 4: Safety Directions
• Use after misappropriation. • Use of products with obvious damages or defects. • Use with accessories from other manufacturers without the prior explicit approval of GeoMax. • Inadequate safeguards at the working site. • Deliberate dazzling of third parties. -
Page 5: Limits Of Use
Responsibilities Manufacturer of the GeoMax AG, CH-9443 Widnau, hereinafter referred to as GeoMax, is responsible for supplying the product, product including the user manual and original accessories, in a safe condition. - Page 6 Using the product after incorrect attempts were made to carry out repairs Precautions: Do not open the product. Only GeoMax authorised service workshops are entitled to repair these products. If the product is improperly disposed of, the following can happen: WARNING •...
-
Page 7: Laser Classification
Zone20 H: Description Value Maximum average radiant output power 2.6 mW Pulse duration (effective) 1.1 ms Pulse repetition frequency 10 Hz Beam divergence 0.2 mrad Wavelength 635 nm Labelling 011245_001 a) Laser beam Zone20 H | 7 Safety Directions... -
Page 8: Electromagnetic Compatibility Emc
Electromagnetic radiation can cause disturbances in other equipment. WARNING Although the product meets the strict regulations and standards which are in force in this respect, GeoMax cannot completely exclude the possibility that other equipment may be disturbed. There is a risk that disturbances may be caused in other equipment if the product is used with accessories... - Page 9 Changes or modifications not expressly approved by GeoMax for compliance could void the user's authority WARNING to operate the equipment. Labelling Zone20 H GeoMax AG CH-9443 Widnau Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice Nr.
-
Page 10: Description Of The System
Once the Zone20 H has levelled, the head will start rotating and the Zone20 H is ready for use. 30 seconds after the Zone20 H has completed the levelling, the H.I. Alert system becomes active and protects the Zone20 H against changes in elevation caused by movement of the tripod to ensure accurate work. -
Page 11: Case Components
Place the Zone20 H on a stable ground. Ground vibration and extremely windy conditions can affect the operation of the Zone20 H. • When working in a very dusty environment place the Zone20 H up-wind so the dirt is blown away from the laser. Setting up on a Tripod... -
Page 12: Operation
Up and Down Arrow Press to enter a slope for an axis in Manual Mode. Power Press to turn on or off the Zone20 H. Automatic/ Press once to change the X-axis to Manual Mode with Y-axis self-levelling. Manual Mode Press again to change the Y-axis to Manual Mode with X-axis self-levelling. -
Page 13: Turning The Zone20 H On And Off
Press the Power button to turn on or off the Zone20 H. After turning on: • If set up within the 5° self-levelling range, the Zone20 H automatically levels to create an accurate horizontal plane of laser light. • Once levelled, the head starts rotating and Zone20 H is ready for use. -
Page 14: Elevation Alert (H.i.) Function
The Elevation Alert monitors the laser. If disturbed, both the X-axis LED and Y-axis LED flash and the Zone20 H beeps rapidly. • To stop the alert turn Zone20 H off and on again. Check the height of the laser before beginning to work again. ... -
Page 15: Receivers
Receivers Description The Zone20 H is sold with the ZRB35, ZRP105 or ZRD105 Receiver. ZRB35 Receiver Instrument components part 1 of 2 a) Level vial b) Keypad c) On-grade d) Laser Reception window e) LCD window 011190_001 Audio Speaker Component... -
Page 16: Zrp105 Receiver
Use to transfer reference marks. The notch is 85 mm (3.35") below to top of the detector. Product label The serial number is located inside the battery compartment. Battery door Access to the battery compartment. Zone20 H | 16 Receivers... -
Page 17: Zrd105, Digital Receiver
Press once to turn on the receiver. Press 1.5 seconds to turn off the receiver. Target Press to capture the digital reading. Bandwidth Press to change detection bandwidths. Audio Press to change the audio output. Zone20 H | 17 Receivers... -
Page 18: Applications
Set the rod with the attached receiver on top of the form. Adjust the height of the form until the on-grade position is again indicated. Continue to additional positions until the forms are levelled to the rotating plane of the Zone20 H. Checking Grades Checking Grades step- Application shown using the ZRP105 Receiver. -
Page 19: Manual Grades
Press the Grade button to enter grade for the y-axis. Press the Grade button again to exit grade entry mode. Once grade is entered, the Zone20 H will begin to adjust to grade. Do not disturb the Zone20 H during this process. -
Page 20: Batteries
Low operating temperatures reduce the capacity that can be drawn; high operating temperatures reduce the service life of the battery. Battery for Zone20 H Charging the Li-Ion The rechargeable Li-Ion battery pack on the Zone20 H can be charged without removing the battery pack battery pack step-by- from the laser. step... - Page 21 Changing the Li-Ion With the rechargeable Li-Ion battery pack the battery indicator on the Zone20 H LCD display shows when batteries step-by-step the battery pack is low and needs to be charged. The charge indicator LED on the Li-Ion battery pack indicates when the pack is being charged (flashing slowly) or fully charged (on, not flashing).
-
Page 22: Accuracy Adjustment
30 m (100 ft) Y— 011293_001 Align the second axis of the Zone20 H by rotating it 90° so that this axis is square to the wall. Allow the Zone20 H to self-level completely. Mark the position of the beam. -
Page 23: Adjusting The Level Accuracy
• The X-axis and the Y-axis LEDs flash alternately three times. • The X-axis LED flashes three times, then flashes slowly until level. When the Zone20 H is level, the X- axis LED is on, but does not flash. •... -
Page 24: Troubleshooting
If the problem continues, return the Zone20 H to an authorised service centre for service. The laser receiver is not The Zone20 H is not rotating. It may be Check for proper operation of the working properly. levelling or in Elevation Alert. -
Page 25: Care And Transport
Shipping When transporting the product by rail, air or sea, always use the complete original GeoMax packaging, transport container and cardboard box, or its equivalent, to protect against shock and vibration. -
Page 26: Cleaning And Drying
Do not repack until everything is completely dry. Always close the transport container when using in the field. Cables and plugs Keep plugs clean and dry. Blow away any dirt lodged in the plugs of the connecting cables. Zone20 H | 26 Care and Transport... -
Page 27: Technical Data
IATA Dangerous Goods Regulations. GeoMax has developed Guidelines on “How to carry GeoMax products” and “How to ship GeoMax products” with Lithium batteries. Before any transportation of a GeoMax product, we ask you to consult these guidelines on our web page (http://www.geomax-positioning.com/dgr) to ensure... - Page 28 12 V DC Output current: 3.0 A Polarity: Shaft: negative, Tip: positive Lithium-Ion battery Type: Li-Ion battery pack Input voltage: 12 V DC pack Input current: 2.5 A Charge time: 5 hours (maximum) at 20°C Zone20 H | 28 Technical Data...
- Page 30 GeoMax Zone20 H Series 841853-1.0.1en Original text © 2015 GeoMax AG, Widnau, Switzerland GeoMax AG www.geomax-positioning.com...
