Installation guide
GeoMax Zoom75/95 Series
English
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Zoom 75 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GeoMax Zoom 75 Series

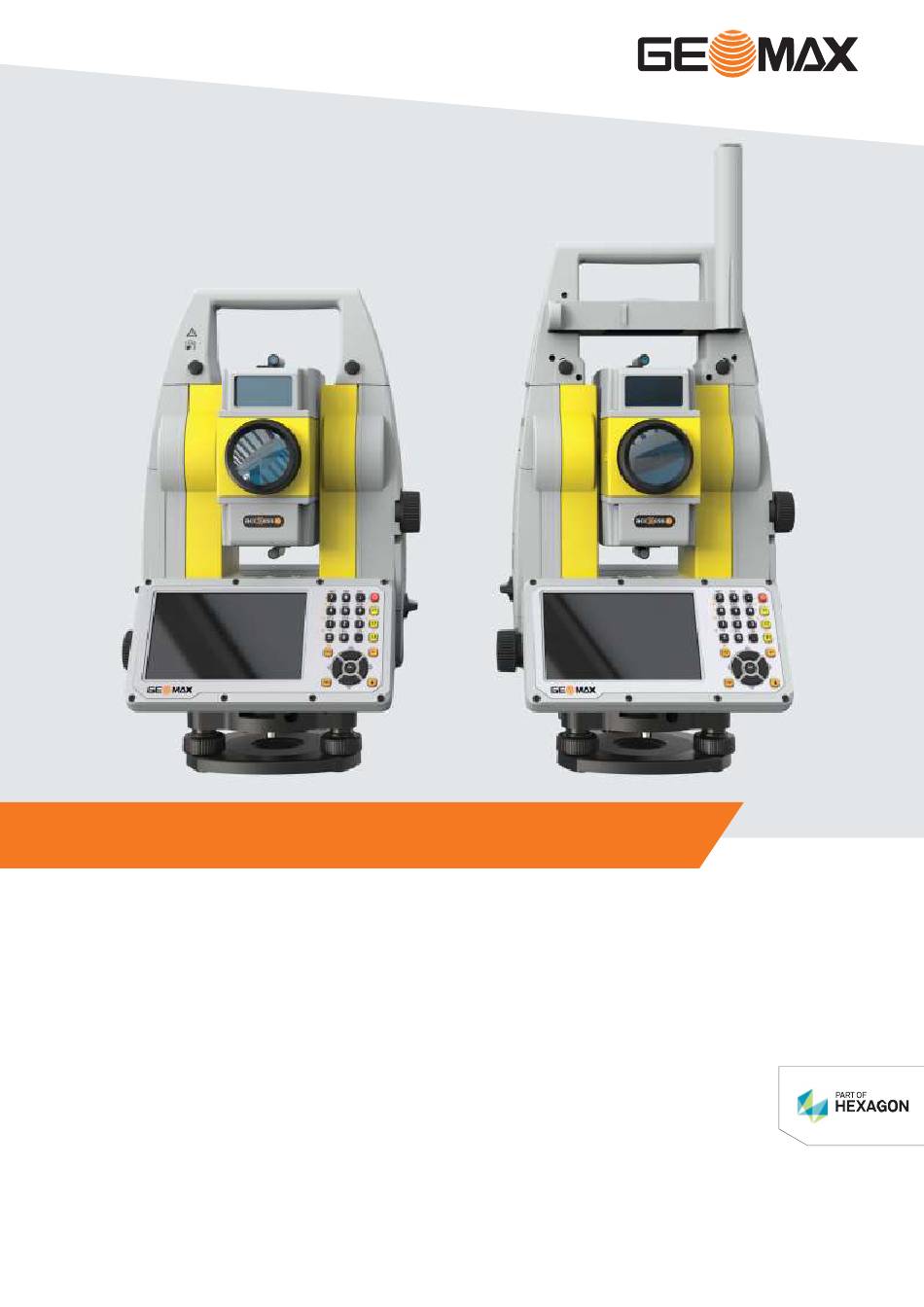

  • Page 1 Installation guide GeoMax Zoom75/95 Series English Version 1.0...
  • Page 2: Table Of Contents

    Table of contents INTRODUCTION ...................... 3 BATTERY CHARGING ....................3 Zoom75/95 instrument ................3 Field controller ..................3 PREPARATION OF THE INSTRUMENT ..............4 System files ..................4 Uploading the system files to the instrument ..........5 Loading license files ................6 Configuration of the communication port ...........
  • Page 3: Introduction

    The instructions cover all the required installation tasks for the Zoom75/95 instruments. The latest versions of GeoMax documents and software referred to in this document are all available from the Technical Library of the GeoMax Parner Area in the Zoom75/95 folder at: www.geomax-positioning.com/partner-area...
  • Page 4: Preparation Of The Instrument

    The installed version can be viewed in the installed “GeoMax Toolkit” application. To access, start “GeoMax Toolkit” and select “SysInfo” (2). Select the second tab-page to view the version information. If this version does not match the one available from GeoMax Technical Library, then the instrument should be updated.
  • Page 5: Uploading The System Files To The Instrument

    SD card/USB stick into the corresponding port on the communication side cover of the instrument and switch on the instrument. To upload files to the instrument, start GeoMax Toolkit and navigate to MAIN MENU / APPS / UPDATE. If the firmware needs to be upgraded, install it first by selecting F1 Firmware.
  • Page 6: Loading License Files

    In addition, in order to use the ZDC229 data transfer cable, it is necessary to install a driver on the PC which can be obtained from the GeoMax Partner Area Technical Library in the Zoom75/95/Drivers folder under the name 'Zoom75&Zoom95 USB Driver'. After downloading it, run the corresponding .exe file and follow the instructions of the installer...
  • Page 7: Install Usb Driver For Zoom75/95

    PC. In order to the PC to recognize the Zoom75/95, the USB driver of Zoom75/95 must be installed. To install it, do the following: Download the ‘Zoom75 & Zoom95 mini-USB to USB driver’ from the Zoom75/95/Drivers folder at GeoMax Partner Area Technical Library. Make sure the Zoom75/95 is not connected to the PC...
  • Page 8: Installing

    Run the Setup_GeoMax_USB_xx.EXE Follow the instructions on the screen When ready, press FINISH Power ON the Zoom75/95 Connect the Zoom75/95 to the PC with a USB cable. Your PC will then try to recognize the Zoom75/95 and associate the appropriate drivers with it. Press the Windows Start button at the bottom left corner of the screen of the PC Type the IP address of the device into the search field: \\192.168.254.3\ Press Enter.
  • Page 9 1.0.0en © 2021 GeoMax AG is part of Hexagon AB. All rights reserved. GeoMax AG Espenstrasse 135 9443 Widnau Switzerland geomax-positioning.com...

This manual is also suitable for:

Zoom 95 series
