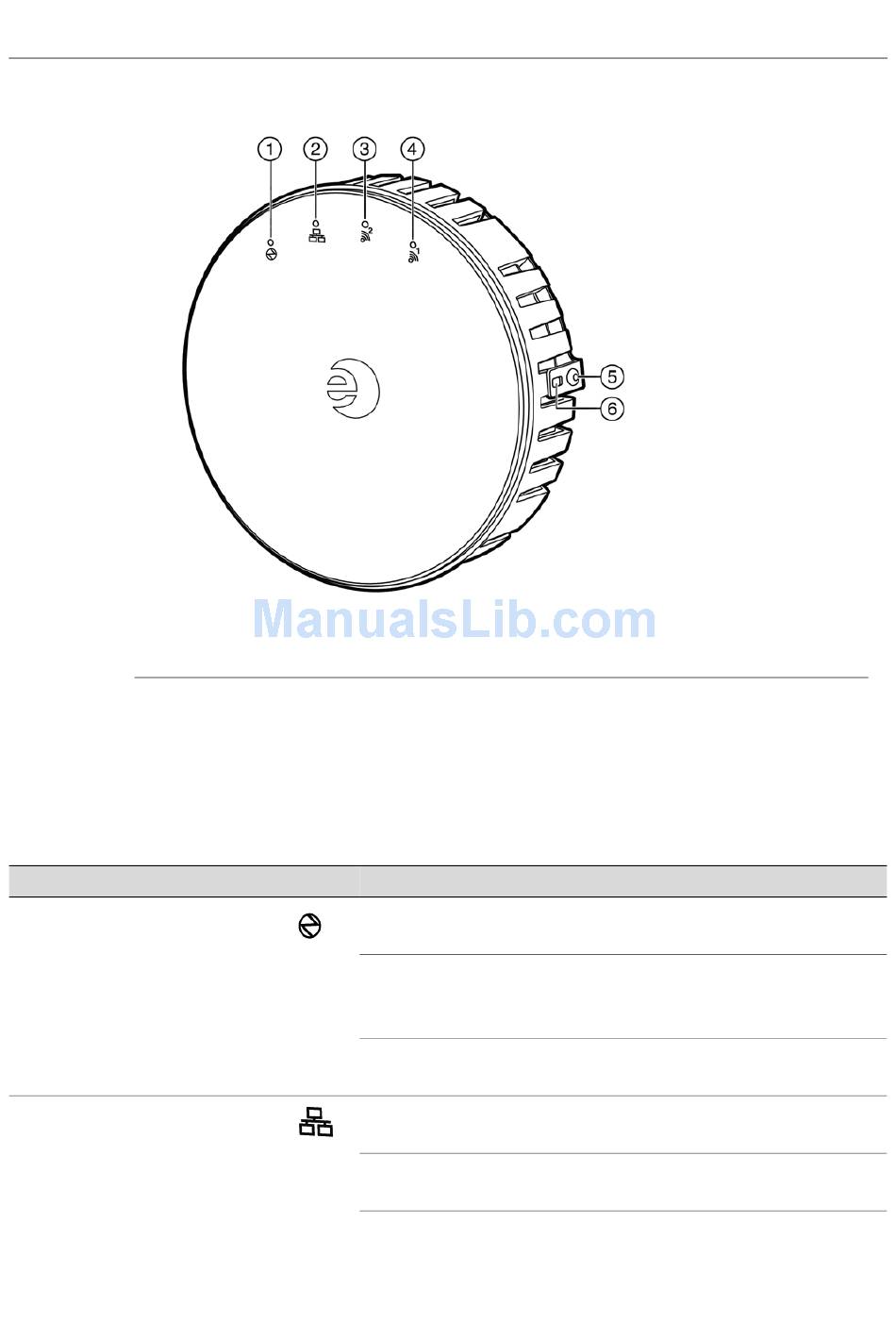

Figure 1-1
1 LED 1 (AP status)
2 LED 2 (Ethernet link state)
3 LED 3 (Radio 2 status)

WS-AP3705i LED Indicators

The WS-AP3705i provides four LED indicators (see
information (see
Enterasys Wireless Convergence Software User Guide.
Table 1-1 WS-AP3705i LED Status Indicators
LED
1 (AP status)
2 (Ethernet link state)
1-2 WS-AP3705i Overview

Enterasys Wireless WS-AP3705i Front View

Table 1-1) on the current state of the WS-AP3705i. For more information, see the
Icon Status
On Green
Flashing Green
On Red
On Green
On Blue
Off
4 LED 4 (Radio 1 status)
5 Rivet on mounting bracket locking tab
6 Slot for Kensington lock on bracket locking tab
Figure
Description
Indicates the WS-AP3705i is working
normally.
Indicates:
• running a self test
• loading software program
Indicates a CPU or system failure.
Indicates a valid 100Mbps Ethernet link.
Indicates a valid 1Gbps Ethernet link.
Indicates the link is down.
