Summary of Contents for ACTi A41

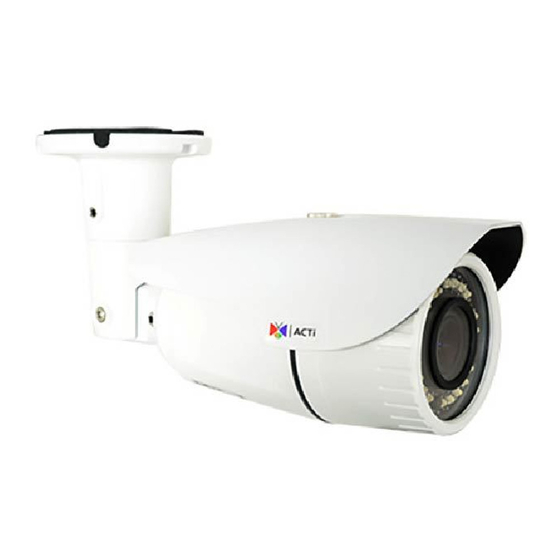

- Page 1 A4x Zoom Bullet Camera Hardware Manual A41, A42 Ver. 2016/03/22...
-
Page 2: Table Of Contents
Connecting a Power Adapter (Optional) ........14 How to Connect Audio Input / Output Devices (Optional) ... 15 Other Adjustments and Accessories Reset the Camera ................15 Accessing the Camera Configure the IP Addresses ............16 Access the Camera ................. 20 www.acti.com... -
Page 3: Precautions
Every reasonable care has been taken during the writing of this manual. Please inform your local office if you find any inaccuracies or omissions. We cannot be held responsible for any typographical or technical errors and reserve the right to make changes to the product and manuals without prior notice. www.acti.com... - Page 4 This product has been tested and found to comply with the limits for Class B Information Technology Equipment according to European Standard EN 55022 and EN 55024. In a domestic environment, this product may cause radio interference in which cause the user may be required to take adequate measures. www.acti.com...
-
Page 5: Safety Instructions
Safety Check Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine if the video product is in proper operating condition. www.acti.com... -
Page 6: Introduction
Hardware Manual Introduction List of Models This hardware manual contains the following models: 3MP Zoom Bullet with D/N, Adaptive IR, Extreme WDR, SLLS, 4.3x Zoom lens 5MP Zoom Bullet with D/N, Adaptive IR, Extreme WDR, SLLS, 2.8x Zoom lens www.acti.com... -
Page 7: Package Contents
Hardware Manual Package Contents Camera Mounting Screw Kit Camera Base Wrench Terminal Block Drill Template Warranty Card (for DI/DO) Quick Installation Guide www.acti.com... -
Page 8: Physical Description
Digital Input / Output Connects to digital input or output devices, such as an alarm trigger, panic button, etc. Digital Input (DI) and Digital Output (DO) devices are used in applications like motion detection, event triggering, alarm notifications, etc. www.acti.com... -
Page 9: Mounting Options
PMAX-0506 NOTE: For more information about the mounting solutions and accessories, please check the Mounting Accessory Selector in our website (http://www.acti.com/mountingselector). The above mounting accessories are not included in the package. Contact your sales agents to purchase. www.acti.com... -
Page 10: Installation Procedures
Cable hole If the cable will be routed along the wall, just drill the four (4) screw holes on the wall. 4. Detach the drill template sticker from the wall and insert the plastic plugs into the screw holes. www.acti.com... -
Page 11: Step 2: Mount The Camera
(3) holes and use the supplied screw tox. 2. Attach the camera to the surface using the three (3) supplied screws. 3. Adjust the camera installation angle and orientation, and then tighten the two (2) screws to fix its position. www.acti.com... -
Page 12: Step 3: Waterproof And Connect The Cable(S)
NOTES on using Ethernet cables: For outdoor installations, it is recommended to use exterior-grade Ethernet cables (CAT5/CAT5e/CAT6); ordinary Ethernet cables are only designed for indoor use and may deteriorate quickly when exposed to outdoor elements. Exterior-grade Ethernet cables are waterproof and do not require a conduit. www.acti.com... -
Page 13: Step 4: Connect To Network
Power Cable PoE Injector Ethernet Cable AC Power (Data + Power) Source Camera Step 6: Access the Camera Live View Accessing the Camera on page 16 for more information on how to access the Live View of the camera. www.acti.com... -
Page 14: Other Connections
In case of using a non-PoE switch or your PoE switch has a limited power supply, you can purchase a power adapter and directly connect the camera to a power outlet. NOTE: The power adapter is not bundled in the package. The DC12V connector is already attached to the camera. www.acti.com... -
Page 15: How To Connect Audio Input / Output Devices (Optional)
The administrator’s password is forgotten and therefore the camera cannot be accessed In case of IP address, mask, or allow/deny filter related issues, resulting with the inability to modify these settings In case of connectivity issues or abnormal video quality www.acti.com... -
Page 16: Accessing The Camera
In the example below, we successfully found the camera model that had just connected to the network. Double-click the mouse button on the camera model name, the default browser of the PC is automatically launched and the IP address of the target camera is already filled in the address bar of the browser. www.acti.com... - Page 17 The latest IP Utility can be downloaded for free from http://www.acti.com/IP_Utility When you launch IP Utility, the list of connected cameras in the network will be shown. See sample illustration below: You can quickly notice the camera model in the list.
- Page 18 PC has to be configured to match the network segment of the camera. Manually adjust the IP address of the PC: In the following example, based on Windows 7, we will configure the IP address to 192.168.0.99 and set Subnet Mask to 255.255.255.0 by using the steps below: www.acti.com...
- Page 19 In such case, please plug in only one camera at a time, and change its IP address by using the Web browser before plugging in the next one. This way, the Web browser will not be confused about two devices having the same IP address at the same time. www.acti.com...
-
Page 20: Access The Camera
The examples in this manual are based on Internet Explorer browser in order to cover all functions of the camera. Assuming that the camera’s IP address is 192.168.0.100, you can access it by opening the Web browser and typing the following address into Web browser’s address bar: http://192.168.0.100 www.acti.com... - Page 21 HTTP port of the camera is 80, which can be omitted from the address for convenience. Before logging in, you need to know the factory default Account and Password of the camera. Account: Admin Password: 123456 For further operations, please refer to the Firmware User Manual. www.acti.com...
- Page 22 Copyright © 2015, ACTi Corporation All Rights Reserved 7F, No. 1, Alley 20, Lane 407, Sec. 2, Ti-Ding Blvd., Neihu District, Taipei, Taiwan 114, R.O.C. TEL : +886-2-2656-2588 FAX : +886-2-2656-2599 Email: sales@acti.com...
